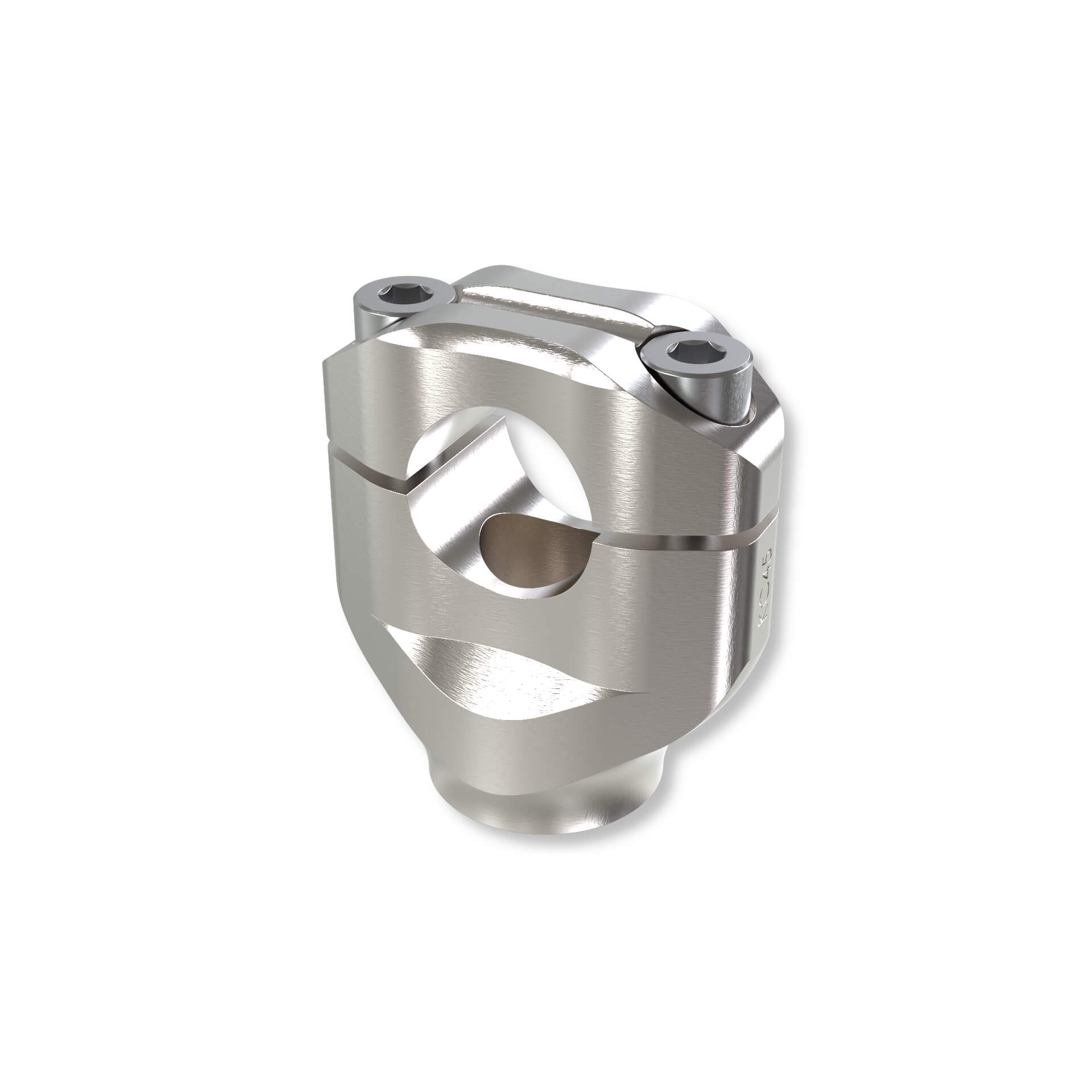

LSL Universal Clamp Kit for 1 inch/25.4 mm handlebar, Screw Length 70 mm, Silver

Product details

LSL Universal Clamp Kit for 1 inch/25.4 mm handlebar, Screw Length 70 mm, Silver

General description

Universal clamps for handlebar-Ø25.4 mm
For using handlebar with a clamping diameter of 25.4 mm, LSL offers the necessary clamps for mounting in the original mounting points of the upper triple clamps. The clamps are CNC-machined from high-quality solid aluminium. They replace the standard clamps to achieve a different height and a better aesthetic. They can be mounted in the original mounting points with centrally located M10 x 1.25 mm screws. For models with rubber mounting, this is retained.
Note:
Please check if your vehicle is listed in the ABE and determine the required screw length.
Warning:
This item is only exempt from registration if your motorcycle is assigned to clamp KC45 in the enclosed ABE and all conditions are observed.
For vehicles not listed in the model list, approval through inspection in accordance with § 19(2) StVZO is possible.
How to determine the screw length:
Measure the length of the original screws protruding from the original clamps. This is the usable screw length L, as shown in the technical drawing.

Select the desired colour and required usable screw length.
Material: Aluminium
Material treatment: CNC-machined, anodised
Mounting: Central screw connection at the standard mounting points M10 x 1.25 mm
Offset: + 45 mm
Dimensions: 1 inch clamp
Scope of delivery:
• Clamps (KC45) 1 pair
• Screws M8x25 4 pieces
• Screws M10x1.25 2 pieces in the selected length
• U-washers M10 2 pieces
• Nuts M10x1.25 (self-locking) 2 pieces
