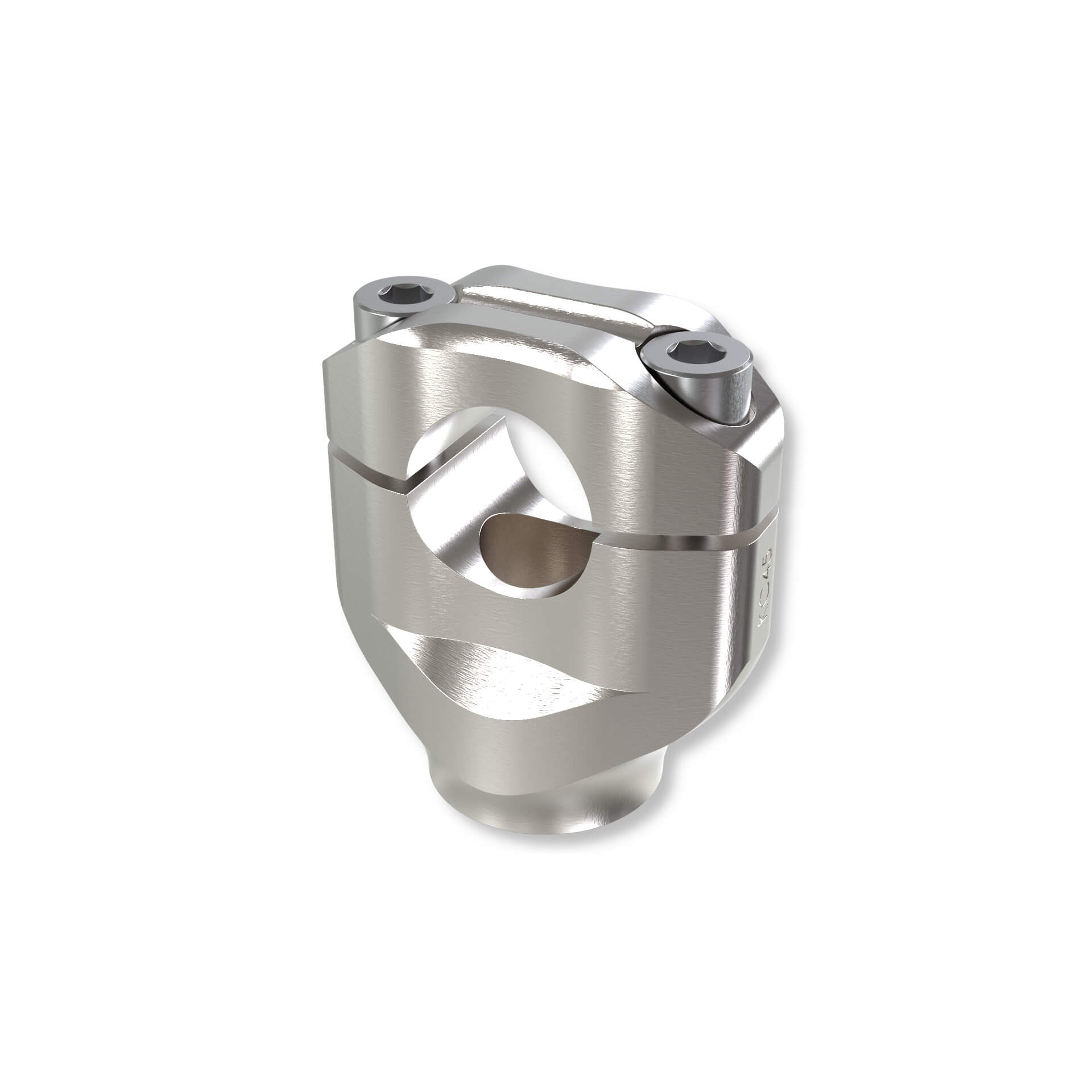

LSL Universal Clamp Kit for 1 inch/25.4 mm handlebar, Bolt Length 60 mm, Silver

Product Details

LSL universal clamp kit for 1 inch/25.4 mm handlebar, bolt length 60 mm, silver

General Description

Universal clamp risers for handlebar-Ø25.4 mm
For using handlebar with a clamping diameter of 25.4 mm, LSL offers the necessary clamp risers for mounting in the original attachment points of the upper triple clamps. The clamp risers are CNC-machined from high-quality solid aluminium. They replace the standard clamp risers to achieve a different height and an improved look. They can be mounted in the original attachment points with centrally located M10 x 1.25 mm bolts. For models with rubber mounts, these are retained.
Note:
Please check if your vehicle is listed in the ABE and determine the required bolt length.
Attention:
This item is only exempt from registration if your motorcycle is assigned to clamp riser KC45 in the enclosed ABE and all conditions are observed.
For vehicles not listed in the model list, approval by inspection in accordance with § 19(2) StVZO is possible.
How to determine the bolt length:
Measure the length of the original bolts that protrude from the original clamp risers. This is the usable bolt length L, as shown in the technical sketch.

Select the desired colour and required usable bolt length.
Material: Aluminium
Material treatment: CNC-machined, anodised
Mounting: Central bolting to the standard mounting points M10 x 1.25 mm
Offset: + 45 mm
Dimensions: 1 inch clamping
Scope of delivery:
• Clamp risers (KC45) 1 pair
• Bolts M8x25 4 pieces
• Bolts M10x1.25 2 pieces in the selected length
• U-washers M10 2 pieces
• Nuts M10x1.25 (self-locking) 2 pieces
