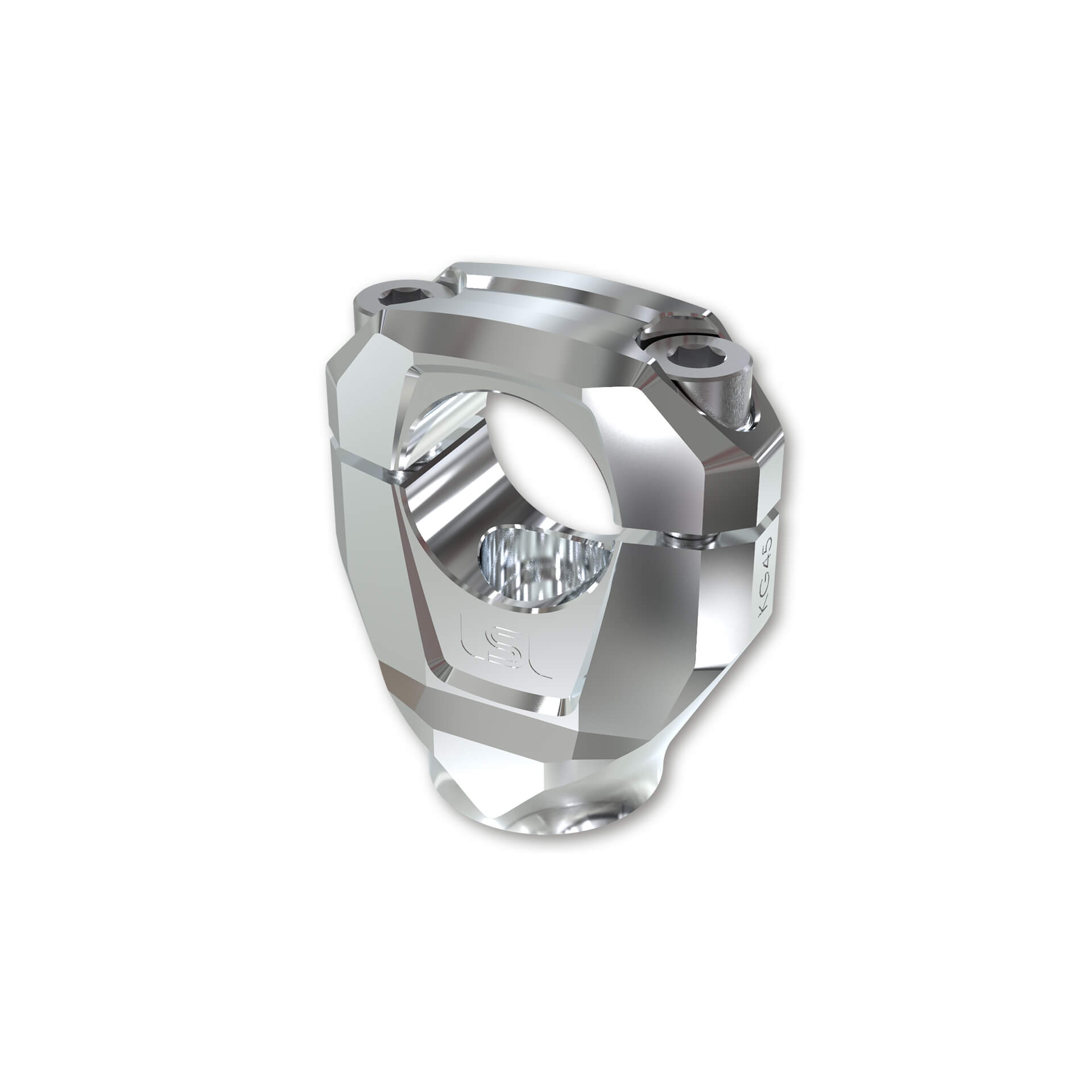

LSL Universal Clamp Block Kit GONIA Ø 28.6 mm

Product Details

LSL GONIA Universal Clamp Block Kit 28.6 mm, 40 mm, M10x1.25, silver

General Description

LSL GONIA X-Bar Universal Clamp Blocks

For the use of X-Bar-handlebars (28.6 mm), LSL offers the necessary clamp blocks for bolting into the original mounting points of the upper triple clamps. The clamp blocks are CNC-machined from high-quality solid aluminium. They replace the standard clamp blocks to achieve a different height and an improved appearance. They can be mounted in the original mounting points with centrally located M10 x 1.25 mm screws. For models with rubber mounting, this is retained.

Note:
Please check if your vehicle is listed in the ABE and determine the required screw length.

Attention:
This item is registration-free only if your motorcycle is assigned to the clamp block KM45/KG45 in the enclosed ABE and all conditions are observed.
For vehicles not listed in the model list, approval through acceptance according to § 19(2) StVZO is possible.

How to determine the screw length:
Measure the length of the original screws, specifically how far they protrude from the original clamp blocks. If necessary, add the thickness of the chosen shim.
Otherwise, simply select L = (the measured dimension).

Suitable rise by 15 or 25 mm: 127UN0...

ATTENTION! For motorcycles with fixed cast 22.2 mm handlebar mounts, please use adapter part no. 127RK25...

Material: Aluminium
Material treatment: CNC-machined, anodised
Mounting: central screw connection at the standard mounting points with M10x1.25mm screws
Clamp block KG45: bottom edge of clamp block to centre of handlebar 45 mm
Dimensions: 28.6 mm clamping, for handlebar with a Ø of 28.6 mm

Scope of delivery:
• Clamp blocks (KG45) 1 pair
• Screws M8x25 4 pieces
• Screws M10x1.25 2 pieces in the selected length
• U-washers M10 2 pieces
• Nuts M10x1.25 (self-locking) 2 pieces
