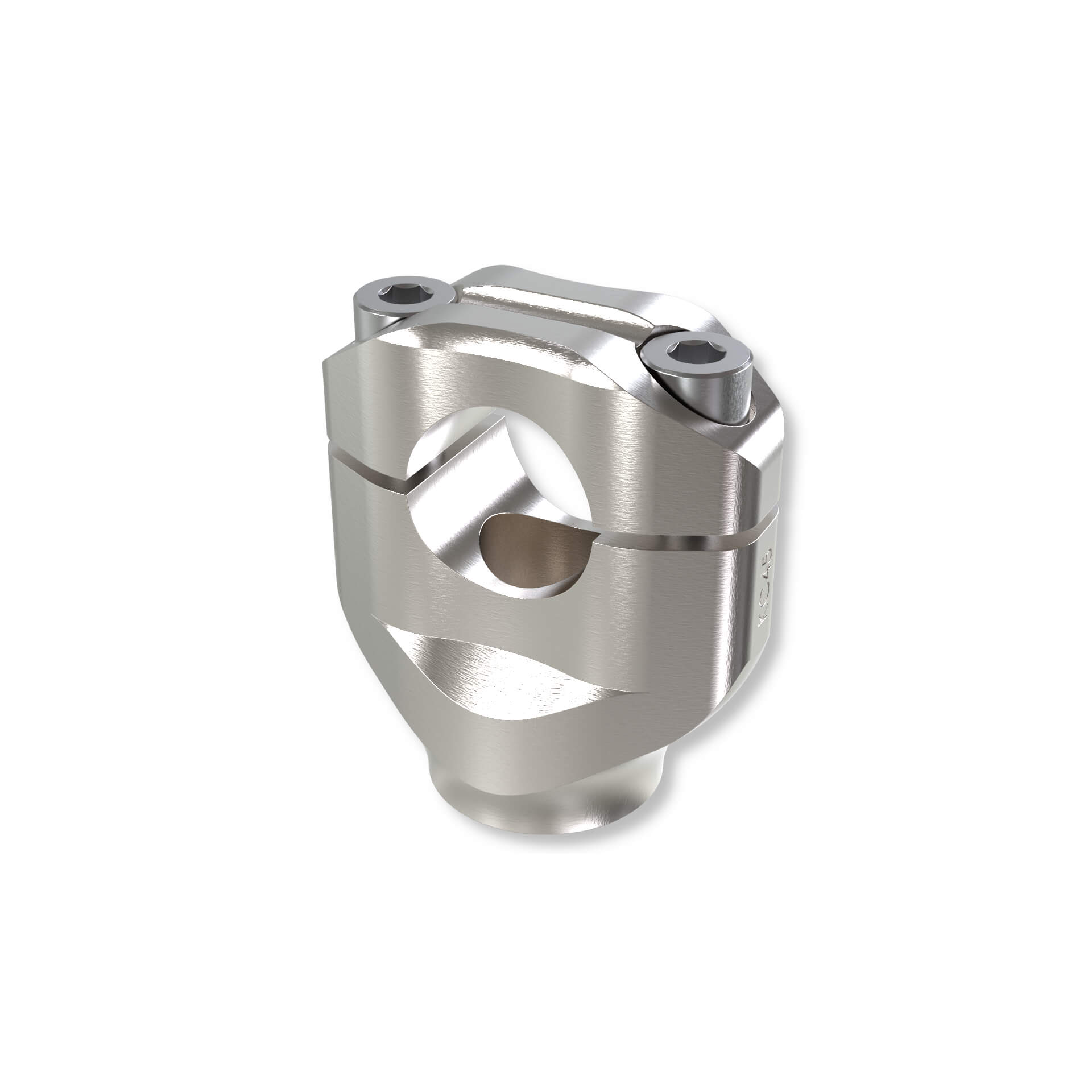

LSL universal clamp block kit for 1 inch/25.4 mm handlebar, screw length 65 mm, silver

Product details

LSL universal clamp block kit for 1 inch/25.4 mm handlebar, screw length 65 mm, silver

General description

Universal clamp blocks handlebar-Ø25.4 mm
For the use of handlebar with a clamping diameter of 25.4 mm, LSL offers the necessary clamp blocks for bolting into the original mounting points of the upper triple clamps. The clamp blocks are CNC-machined from high-quality solid aluminium. They replace the standard clamp blocks to achieve a different height and an improved look. They can be mounted in the original mounting points with centrally located M10 x 1.25 mm screws. For models with rubber mounting, this is retained.
Note:
Please check if your vehicle is listed in the ABE and determine the required screw length.
Attention:
This item is registration-free only if your motorcycle is assigned to clamp block KC45 in the enclosed ABE and all conditions are observed.
For vehicles not listed in the model list, approval by inspection in accordance with § 19(2) StVZO is possible.
How to determine the screw length:
Measure the length of the original screws that protrude from the original clamp blocks. This is the usable screw length L, as shown in the technical sketch.

Select the desired colour and required usable screw length.
Material: Aluminium
Material treatment: CNC-machined, anodised
Mounting: Central bolting to the standard mounting points M10 x 1.25 mm
Offset: + 45 mm
Dimensions: 1 inch clamping
Scope of delivery:
• Clamp blocks (KC45) 1 pair
• Screws M8x25 4 pieces
• Screws M10x1.25 2 pieces in the selected length
• U-washers M10 2 pieces
• Nuts M10x1.25 (self-locking) 2 pieces
