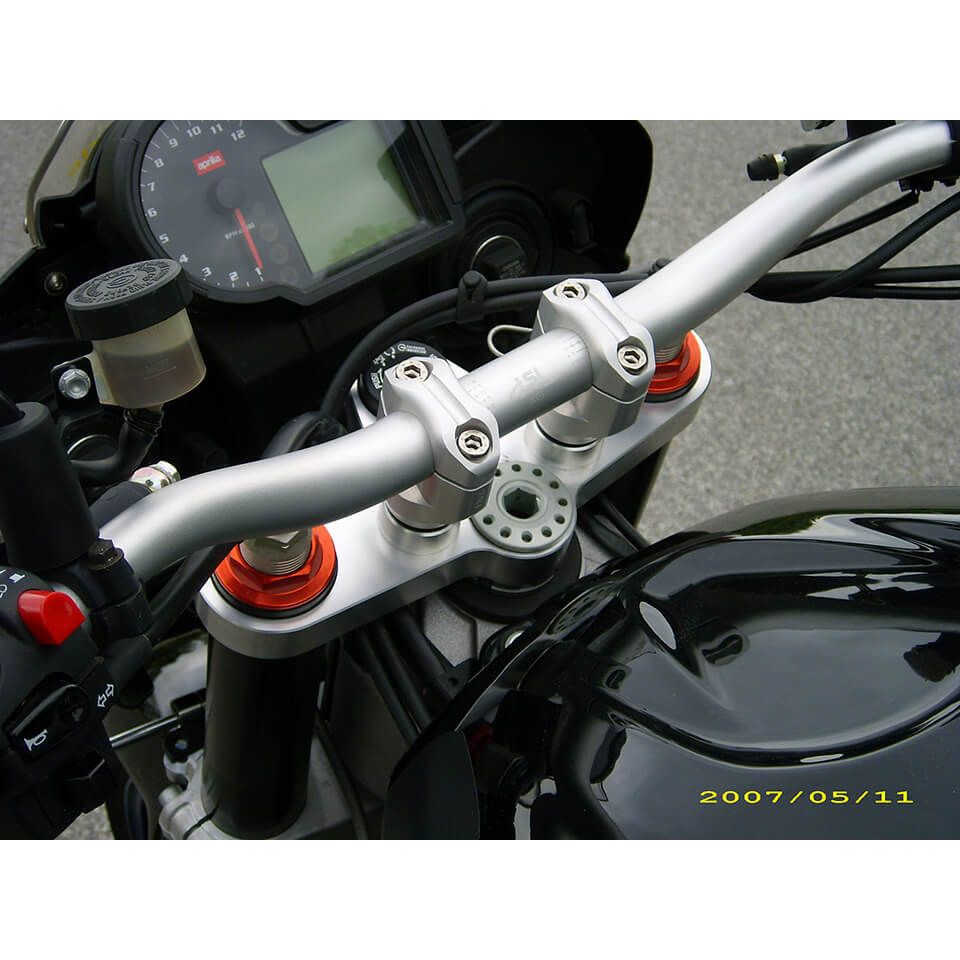

LSL Universal Clamp Block Kit 28.6 mm, Screw Length 70 mm, Silver

Product Details

LSL Universal Clamp Block Kit 28.6 mm, Screw Length 70 mm, Silver

General Description

X-Bar Universal Clamp Blocks
For the use of X-Bar-handlebars (28.6 mm), LSL offers the necessary clamp blocks for mounting in the original mounting points of the upper triple clamps. The clamp blocks are CNC-milled from high-quality solid aluminium. They replace the standard clamp blocks to achieve a different height and improved aesthetics. They can be mounted in the original mounting points with centrally located M10 x 1.25 mm screws. For models with rubber mounts, these are retained.
Note:
Please check if your vehicle is listed in the ABE and determine the required screw length.
Caution:
This item is only exempt from registration if your motorcycle is assigned to the KM45/KG45 clamp block in the enclosed ABE and all conditions are observed.
For vehicles not listed in the model list, approval through inspection according to § 19(2) StVZO is possible.
How to determine the screw length:
Measure the length of the original screws, how far they protrude from the original clamp blocks. If necessary, add the thickness of the chosen spacer.
Otherwise, simply select L = (the measured dimension).
Suitable rise by 15 or 25 mm: 127UN0...
CAUTION! For motorcycles with fixed 22.2 mm handlebar mounts, please use adapter part no. 127RK25...
Material: Aluminium
Material treatment: CNC-milled, anodised
Mounting: central screw connection at the standard mounting points with M10x1.25mm screws
Clamp block KM45: Bottom edge of clamp block to centre of handlebar 45 mm
Dimensions: 28.6 mm clamping, for handlebar with a Ø of 28.6 mm
Scope of delivery:
• Clamp blocks (KM45) 1 pair
• Screws M8x25 4 pieces
• Screws M10x1.25 2 pieces in the selected length
• U-washers M10 2 pieces
• Nuts M10x1.25 (self-locking) 2 pieces
