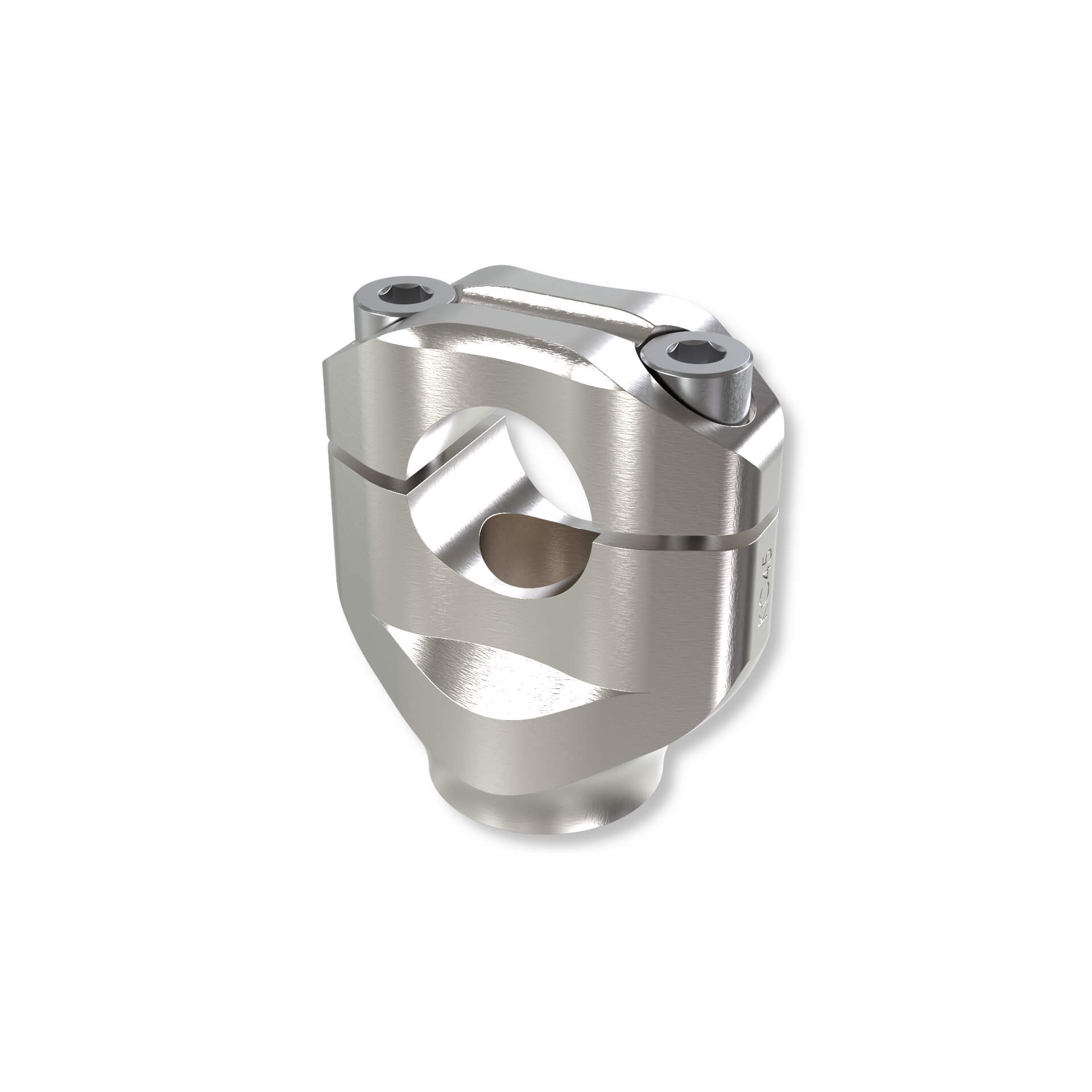

LSL Universal Bar Clamp Kit for 1 inch/25.4 mm handlebar, Screw Length 50 mm, Silver

Product Details

LSL universal bar clamp kit for 1 inch/25.4 mm handlebar, screw length 50 mm, silver

General Description

Universal bar clamps for handlebar-Ø25.4 mm

For the use of handlebar with a clamping diameter of 25.4 mm, LSL offers the necessary bar clamps for screwing into the original mounting points of the upper triple clamp. The bar clamps are CNC-milled from high-quality solid aluminium. They replace the standard bar clamps to achieve a different height and an improved appearance. They can be mounted in the original mounting points with centrally located M10 x 1.25 mm screws. For models with rubber mounting, this is retained.

Note:

Please check whether your vehicle is listed in the ABE and determine the required screw length.

Attention:

This item is only exempt from registration if your motorcycle is assigned to the KC45 bar clamp in the enclosed ABE and all conditions are observed.

For vehicles not listed in the model list, approval by inspection in accordance with § 19(2) StVZO is possible.

How to determine the screw length:

Measure the length of the original screws protruding from the original bar clamps. This is the usable screw length L, as shown in the technical drawing.



Select the desired colour and required usable screw length.

Material: Aluminium

Material treatment: CNC-milled, anodised

Mounting: Central screw fitting to the standard mounting points M10 x 1.25 mm

Offset: + 45 mm

Dimensions: 1 inch clamping

Scope of delivery:

• Bar clamps (KC45) 1 pair

• Screws M8x25 4 pieces

• Screws M10x1.25 2 pieces in the selected length

• U-washer M10 2 pieces

• Nuts M10x1.25 (self-locking) 2 pieces
