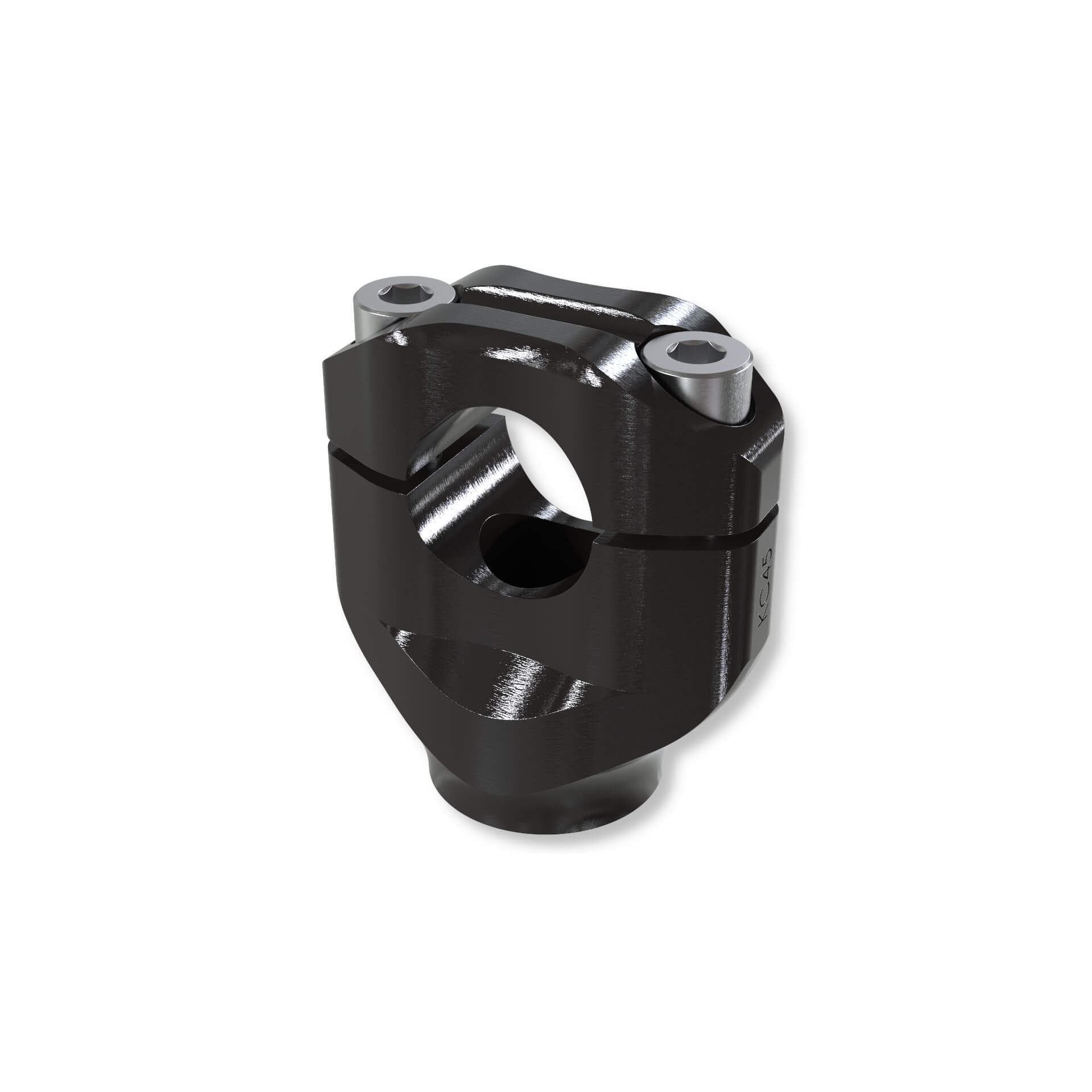

LSL Universal Bar Clamp Kit for 1 inch/25.4 mm handlebar, 40 mm screw length, black

Product Details

LSL Universal Bar Clamp Kit for 1 inch/25.4 mm handlebar, 40 mm screw length, black

General Description

Universal bar clamps for handlebar-Ø25.4 mm
For using handlebar with a clamping diameter of 25.4 mm, LSL offers the necessary bar clamps for bolting into the original mounting points of the upper triple clamps. The bar clamps are CNC-milled from high-quality solid aluminium. They replace the standard bar clamps to achieve a different height and a better appearance. They can be mounted in the original mounting points with centrally located M10 x 1.25 mm screws. For models with rubber mounting, this is retained.
Note:
Please check if your vehicle is listed in the ABE and determine the required screw length.
Attention:
This item is registration-free only if your motorcycle is assigned to clamp block KC45 in the accompanying ABE and all conditions are observed.
For vehicles not listed in the model list, approval through inspection in accordance with § 19(2) StVZO is possible.
How to determine the screw length:
Measure the length of the original screws protruding from the original bar clamps. This is the usable screw length L, as shown in the technical drawing.

Select the desired colour and required usable screw length.
Material: Aluminium
Material treatment: CNC-milled, anodised
Mounting: Central bolting to the standard mounting points M10 x 1.25 mm
Offset: + 45 mm
Dimensions: 1 inch clamping
Scope of delivery:
• Bar clamps (KC45) 1 pair
• Screws M8x25 4 pieces
• Screws M10x1.25 2 pieces in the selected length
• U-washers M10 2 pieces
• Nuts M10x1.25 (self-locking) 2 pieces
