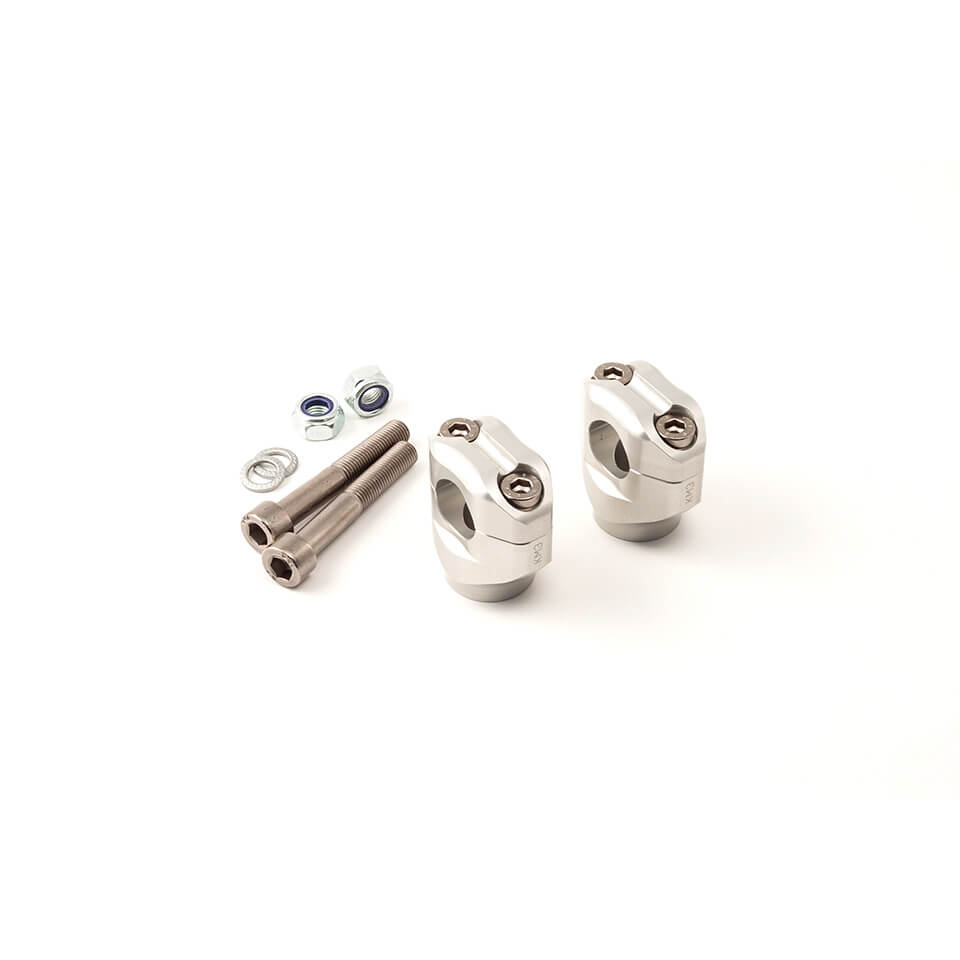

LSL Riser Clamp Kit 28.6 mm, for Kawasaki Z650RS, 2022-, silver

Product details

LSL Riser Clamp Kit 28.6 mm, for Kawasaki Z650RS, model year 2022-, silver

General description

LSL X-Bar riser clamps, model-specific for the LSL X-Bar handlebar (28.6 mm) listed below
Material: Aluminium
Material treatment: CNC-machined, anodised
Mounting: At original mounting points
Dimensions: 28.6 mm clamping, for handlebar with a Ø of 28.6 mm
Our model-specific X-Bar riser clamps are mounted at the original mounting points. This allows an X-Bar handlebar (28.6mm) to be mounted on many models with original handlebar (22.2 mm). The riser clamps are CNC-machined from high-quality solid aluminium. They replace the standard riser clamps to achieve a different height and a better appearance. For models with standard rubber mounting, this is retained.
Can be mounted with the following handlebars:
X00: grip position 30mm lower, 60mm further forward
X01: grip position 10mm lower, 15mm further forward

X02: grip position 5mm further forward
X04: grip position 30mm lower, 35mm further forward
XB3: grip position 10mm higher, 10mm closer
XD2: grip position 65mm lower, 35mm further forward
XN1: grip position 5mm lower, 10mm further forward



ATTENTION IMPORTANT NOTE:
• The use of the original handlebar is not possible with these riser clamps.
• The riser clamps are only registration-free in conjunction with an LSL-handlebar.
• Please check before ordering whether the vehicle intended for conversion is listed in the ABE attached here!
• For each vehicle, there are different specified handlebar versions and requirements that necessitate modifications to the vehicle (e.g. longer lines or cables).
• Failure to comply with any requirements will invalidate the operating permit for the vehicle!
• You can find out which handlebar is suitable in the ABE or in our motorcycle database via check.
Scope of delivery: 1 pair including mounting material
