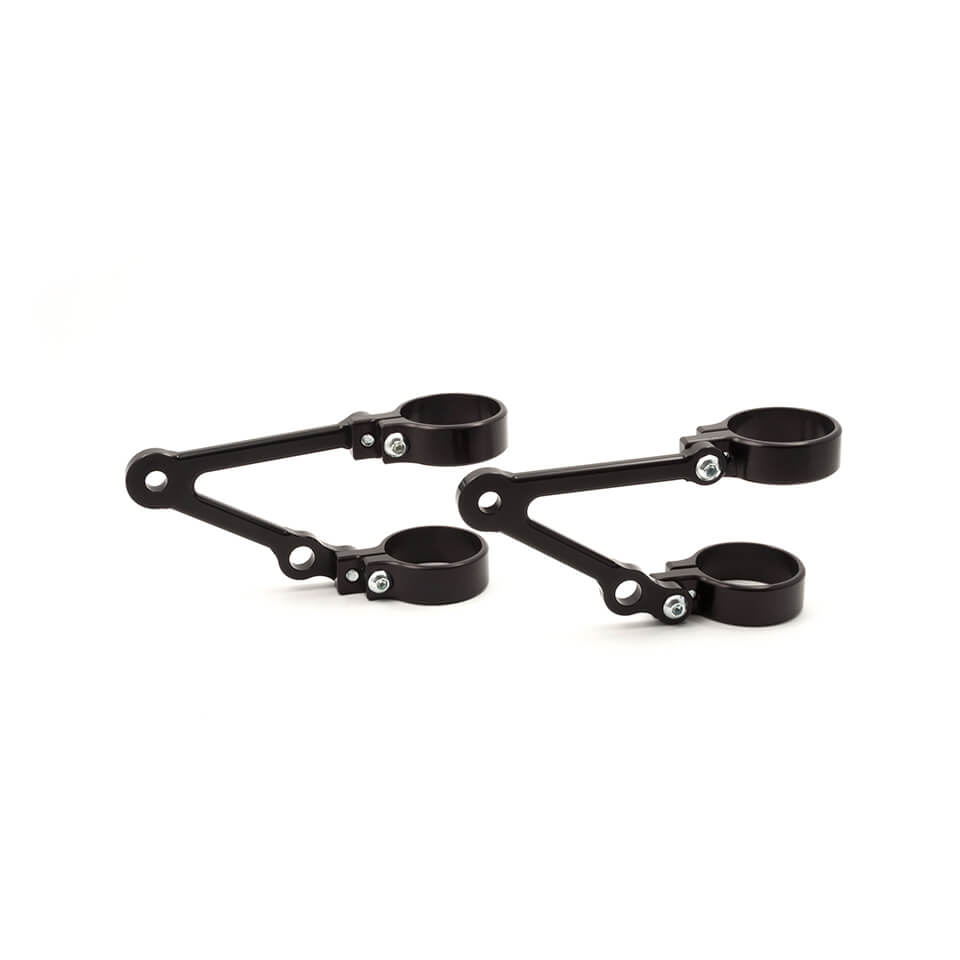

LSL headlight bracket 51/54mm, long, with flasher light, turn signalmount

Product details

LSL headlight bracket 51/54mm, long, with flasher light, turn signalmount

General description

Headlight brackets for single headlights, aluminium
LSL offers universal mounting kits for individual conversions of the head light.
Precisely manufactured, premium headlight brackets that visually complete the head light conversion on your cruiser, chopper, or naked bike.
The mounting clamps are available in various diameters from 35 to 59 mm for common bikes.
The brace are available in different lengths; choose the variant that suits your vehicle. (LONG, SHORT, or EXTRA SHORT)
The long variant is also available without flasher light, turn signalmount.
The clamps and brace of the LSL headlight brackets are milled from aluminium and weather-resistant anodised.
The aluminium clamps have a width of 17 mm.
A lateral offset of the contact surfaces allows a difference of 20 mm to be compensated when mounting the headlight stays.
This allows use with different fork widths or headlight sizes.
As spare part or for later conversion, it is possible to purchase the clamps or brace separately.
These items fit this product: head light
Dimensions:
WITH/WITHOUT INDICATOR MOUNT (LONG)
X = 97 mm
Y = 74 mm
WITH INDICATOR MOUNT (SHORT)
X = 82 mm
Y = 74 mm
WITH INDICATOR MOUNT (EXTRA SHORT)
X = 55 mm
Y = 70 mm
Scope of delivery:
Headlight stay set, milled aluminium, black
Headlight clamp set, milled aluminium, black
Note:
The head light should be fastened with an M8 screw (not included in the scope of delivery).
For mounting on Triumph Bonneville, Scrambler, and Thruxton models, the original ignition lock must be relocated. Please order the LSL ignition lock bracket separately.
