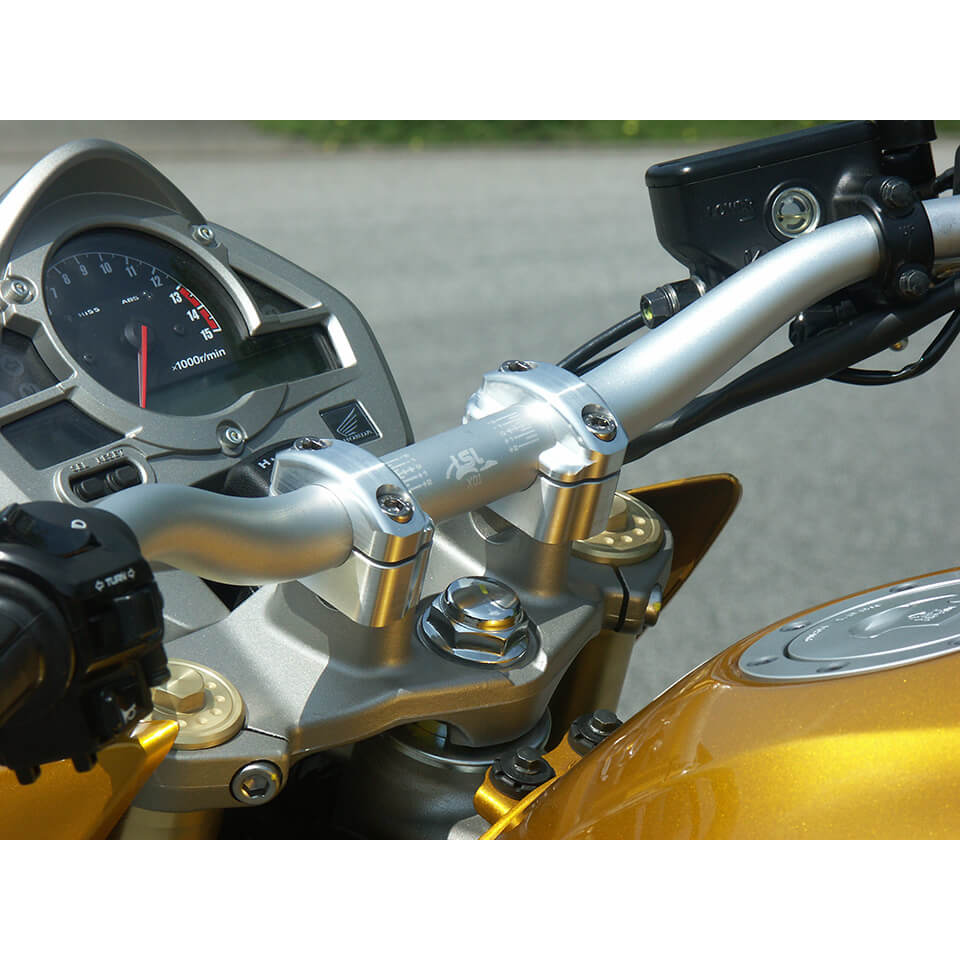

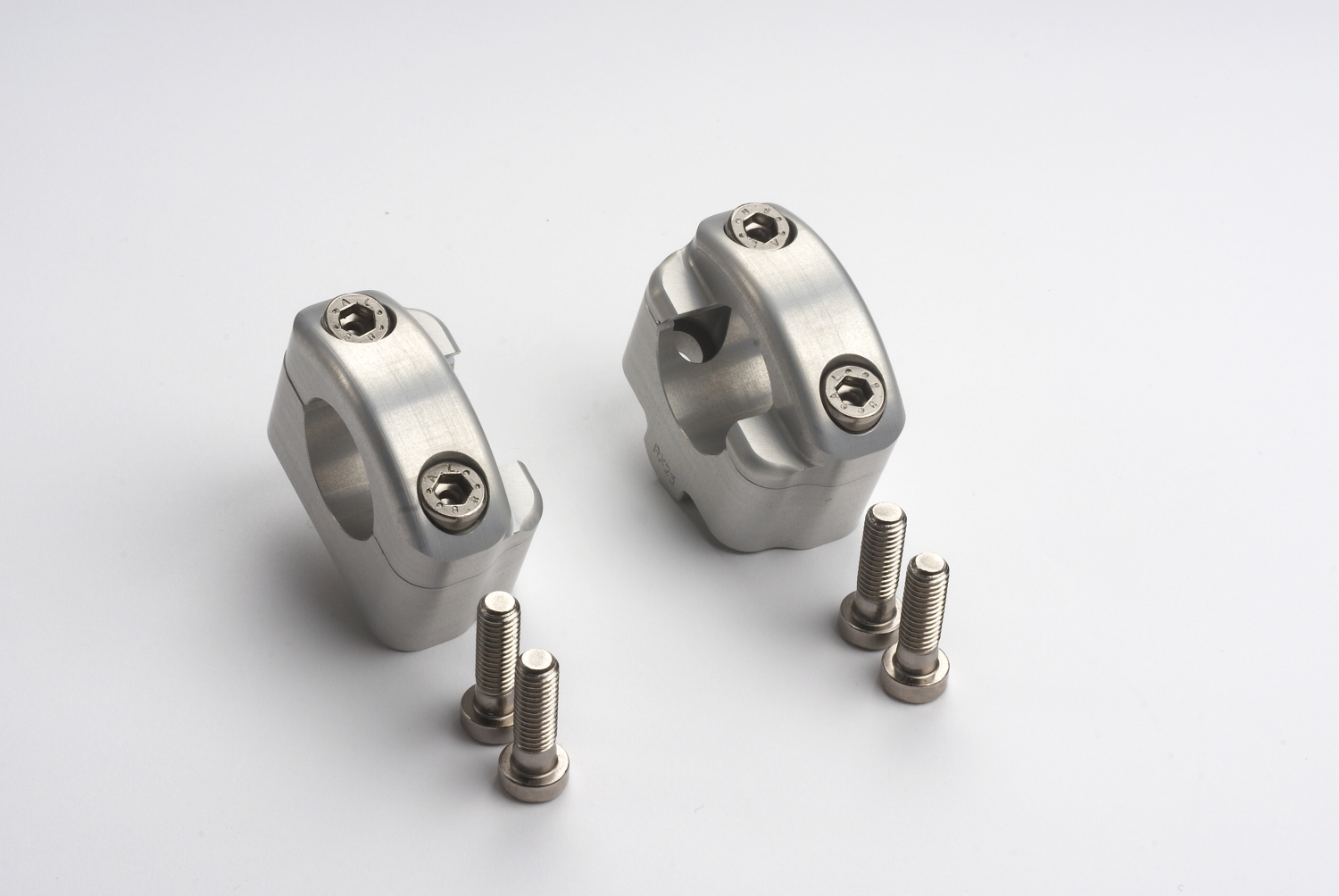

LSL Handlebar Risers Ø22.2/Ø28.6, silver, +25mm Rise
€94.95 gross
Article number:
LSL-127RK25SI
Product Details
LSL Universal Handlebar Risers from 22.2 mm to 28.6 mm, silver, +25 mm riseGeneral Description
Universal X-Bar adapter 22.2mm(Identification RX25)
This adapter allows for the mounting of X-Bar handlebars (28.6 mm diameter) in the original 22.2mm clamping of the triple clamp.
Material: Aluminium
Material finish: anodised
Upward offset (rise): + 25 mm
Mounting: Bolted into the original handlebar clamps of the triple clamp
ATTENTION IMPORTANT NOTE: Please check before conversion whether the vehicle intended for conversion is listed in the attached ABE!
Different prerequisites and conditions apply to each vehicle that allow for the conversion of the handlebar risers.
The model assignments of LSL handlebar risers listed in the ABE are tested for use with the vehicle's standard handlebars.
The additional use of LSL accessory handlebars is possible, but due to a different shape of the handlebar, additional modifications to the vehicle (longer cables or lines) may be necessary.
Raising the original handlebar can also lead to additional vehicle modifications.
Check if the following conditions apply to your vehicle (– see ABE):
- Use permissible when using a compensating shim for the triple clamp
- Use permissible with 20 mm longer brake line
- Use permissible with 30 mm longer brake line
- Use permissible with LSL instrument bracket
Failure to comply will invalidate the vehicle's operating permit!
| Diameter: | 1 inch, 28.6mm |
|---|---|
| handlebar: | Handlebar risers |
| Manufacturer | Model | Additional Designation | Type | Model Year | Variant/Version | ccm |
|---|---|---|---|---|---|---|
| Honda | CB1000R | SC60 | 2008 - 2016 | 1000 | ||
| Honda | NC750X | RH09 EURO5 | 2021 - | 35kW | 750 | |
| Honda | NC750X | RH09 EURO5 | 2021 - | 750 | ||
| Honda | NC750X | DCT | RH09 EURO5 | 2021 - | 750 | |
| Honda | NC750X | DCT | RH09 EURO5 | 2021 - | 35kW | 750 |
| Kawasaki | Z400 | ER400D EURO4 | 2019 - 2020 | 400 | ||
| Kawasaki | Z400 | ER400F EURO5 | 2022 - | 400 | ||
| Suzuki | DL650 V-Strom | XT | WC70 EURO4 | 2017 - 2020 | 650 | |
| Suzuki | DL650 V-Strom | WC70 EURO4 | 2017 - 2020 | C733Az | 650 | |
| Suzuki | DL650 V-Strom | XT | WC70 EURO5 | 2021 - | 650 | |
| Suzuki | DL650 V-Strom | XT | WC71 EURO5 | 2022 - | 650 | |
| Suzuki | SFV650 Gladius | WVCX | 2009 - 2015 | 650 |
