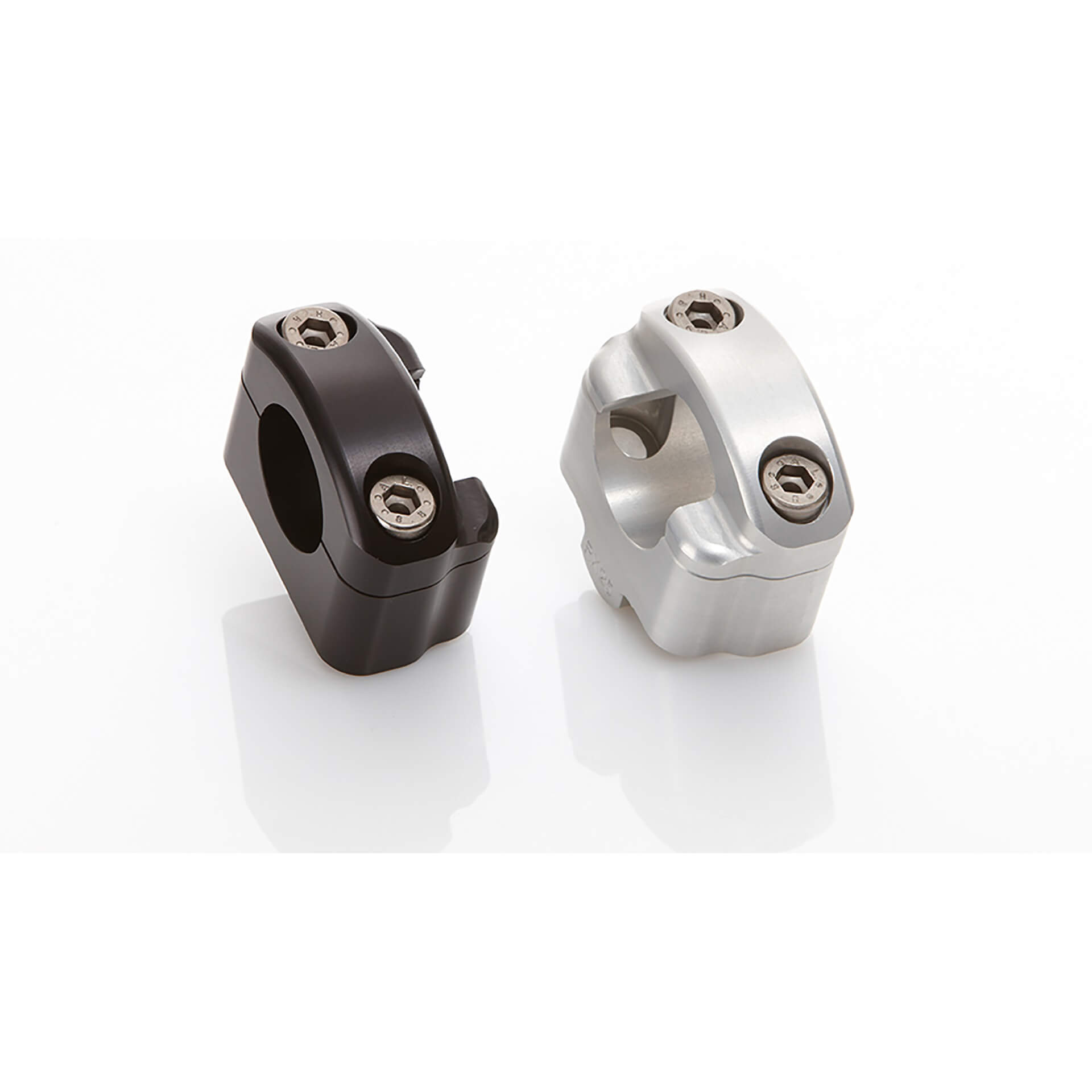

LSL Handlebar Risers Ø22.2/Ø28.6/Black, +25mm
€94.95 gross
Article number:
LSL-127RK25SW
Product details
LSL universal handlebar risers from 22.2 mm to 28.6 mm, black, +25 mm riseGeneral description
Universal X-Bar adapter 22.2mm(ID RX25)
This adapter allows the mounting of an X-bar handlebar (diameter 28.6 mm) in the original 22.2mm clamp of the triple clamp.
Material: aluminium
Surface treatment: anodised
Upward offset (rise): + 25 mm
Fastening: bolted into the original clamps of the triple clamp
IMPORTANT NOTE: Please check before converting whether the vehicle intended for the conversion is listed in the attached ABE!
Different prerequisites and conditions apply to each vehicle that allow a conversion of the handlebar risers.
The model assignments of the LSL handlebar risers listed in the ABE are tested for use with the vehicle's standard handlebar.
The additional use of an LSL accessory handlebar is possible, but due to a different shape of the handlebar may require additional modifications to the vehicle (longer lines or cables).
Raising the original handlebar can also lead to additional modifications to the vehicle.
Check if the following conditions apply to your vehicle (– see ABE):
- Use permissible with a compensating shim for the triple clamp
- Use permissible with a 20 mm longer brake line
- Use permissible with a 30 mm longer brake line
- Use permissible with LSL instrument holder
Failure to comply will invalidate the vehicle's operating licence!
| Diameter: | 1 inch, 28.6mm |
|---|---|
| handlebar: | Handlebar risers |
| Manufacturer | Model | Additional designation | Type | Model year | Variant/Version | ccm |
|---|---|---|---|---|---|---|
| Honda | CB1000R | SC60 | 2008 - 2016 | 1000 | ||
| Honda | NC750X | DCT | RH09 EURO5 | 2021 - | 35kW | 750 |
| Honda | NC750X | RH09 EURO5 | 2021 - | 35kW | 750 | |
| Honda | NC750X | RH09 EURO5 | 2021 - | 750 | ||
| Honda | NC750X | DCT | RH09 EURO5 | 2021 - | 750 | |
| Kawasaki | Z400 | ER400D EURO4 | 2019 - 2020 | 400 | ||
| Kawasaki | Z400 | ER400F EURO5 | 2022 - | 400 | ||
| Suzuki | DL650 V-Strom | XT | WC70 EURO4 | 2017 - 2020 | 650 | |
| Suzuki | DL650 V-Strom | WC70 EURO4 | 2017 - 2020 | C733Az | 650 | |
| Suzuki | DL650 V-Strom | XT | WC70 EURO5 | 2021 - | 650 | |
| Suzuki | DL650 V-Strom | XT | WC71 EURO5 | 2022 - | 650 | |
| Suzuki | SFV650 Gladius | WVCX | 2009 - 2015 | 650 |
