LSL handlebar-Rise-Up Ø22.2

Product Details

LSL handlebar-Rise-Up 25 mm, black

General Description

handlebar-Rise-Up Ø22.2
handlebar risers RiseUp in black or silver, for 7/8 inch handlebar (Ø22.2 mm). The handlebar position is moved upwards and 17 mm closer to the rider. This provides a more upright and relaxed seating position, with ABE, set.

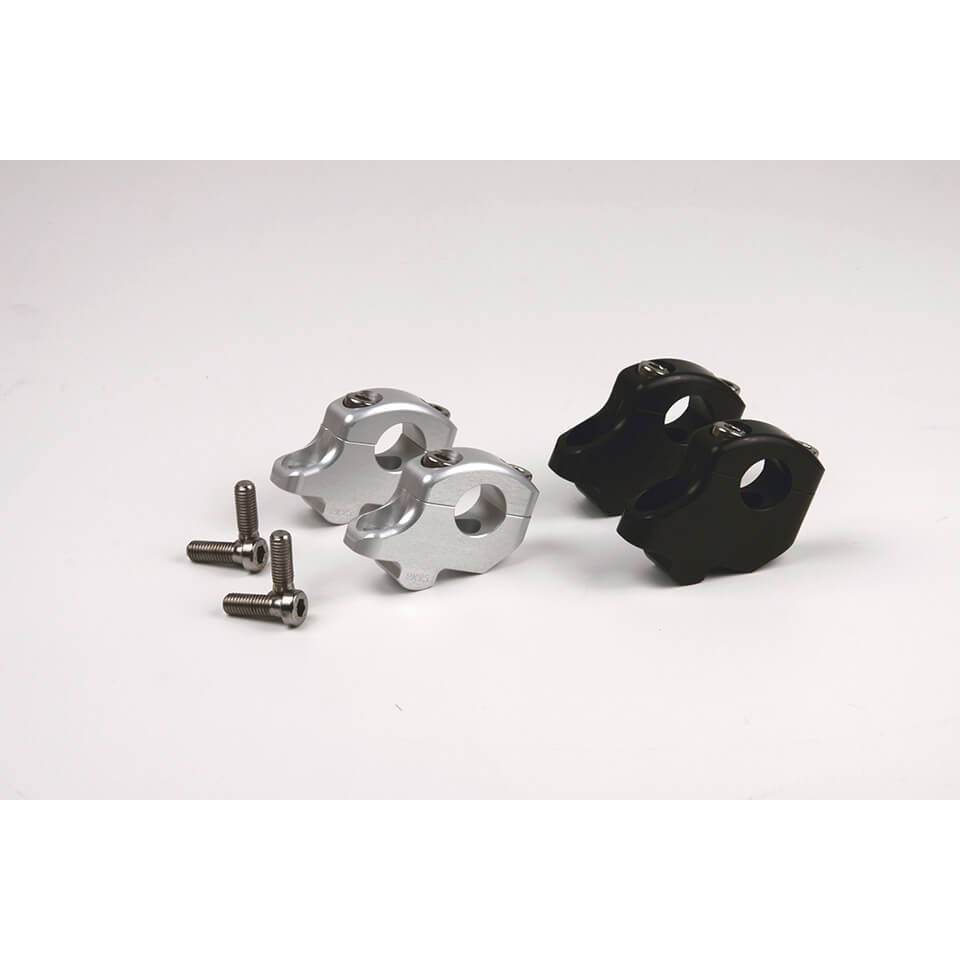

LSL handlebar risers RiseUp for 7/8 inch handlebar

Riser clamps that are installed into the standard clamping. By using the milled spacer clamps, the handlebar position is moved upwards and closer to the rider. This provides a significantly more upright and relaxed seating position.

- Material: Aluminium
- Material treatment: CNC-milled, anodised
- Offset: 25 mm or 35 mm high, 17 mm closer to the rider
- Mounting: For all motorcycles with 32-35 mm hole spacing and 7/8 inch handlebar (Ø22.2 mm)
- Available in black or silver
- With ABE* for many models

Scope of delivery: 1 set, iincluding mounting screws and component certificate.

ATTENTION IMPORTANT NOTE:
Please check before conversion whether the vehicle intended for the conversion is listed in the attached ABE!
Different prerequisites and conditions apply to each vehicle for the conversion of the riser clamps.

*The model assignments of the LSL riser clamps listed in the ABE are tested for use with the vehicle's standard handlebar.
The additional use of an LSL accessory handlebar is possible but may require additional vehicle modifications (longer cables or lines) due to a different shape of the handlebar.
Raising the original handlebar may also lead to additional vehicle modifications.

Check if the following conditions apply to your vehicle (see ABE):
- Use permitted when using a compensation shim for the triple clamp
- Use permitted with a 20 mm longer brake line
- Use permitted with a 30 mm longer brake line
- Use permitted with LSL instrument holder

Failure to comply will invalidate the vehicle's operating licence!

The conversion should only be carried out by trained specialist personnel.
