LSL handlebar-Rise-Up Ø22.2

Product details

LSL handlebar-Rise-Up 35 mm, silver

General description

handlebar-Rise-Up Ø22.2

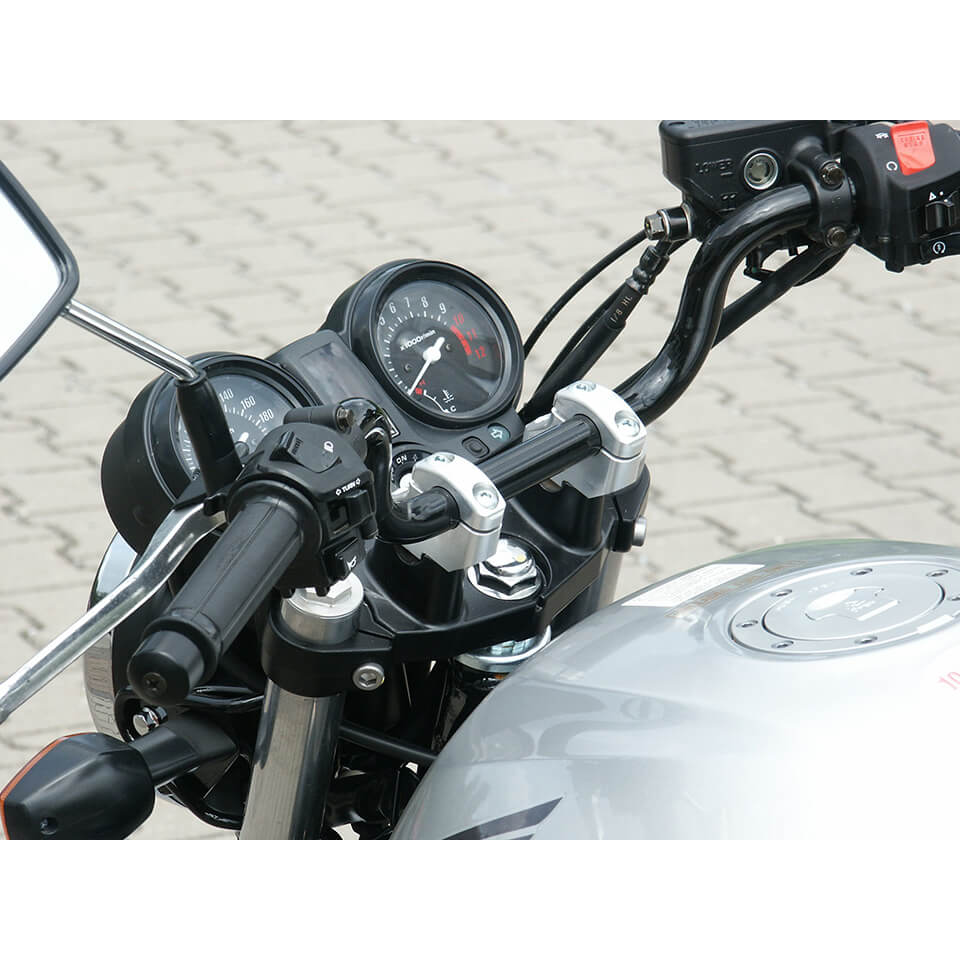

handlebar risers, RiseUp, black or silver, for 7/8 inch handlebar (Ø22.2 mm). The handlebar position is moved upwards and 17 mm closer to the rider. This provides a more upright and relaxed seating position, with ABE, set.

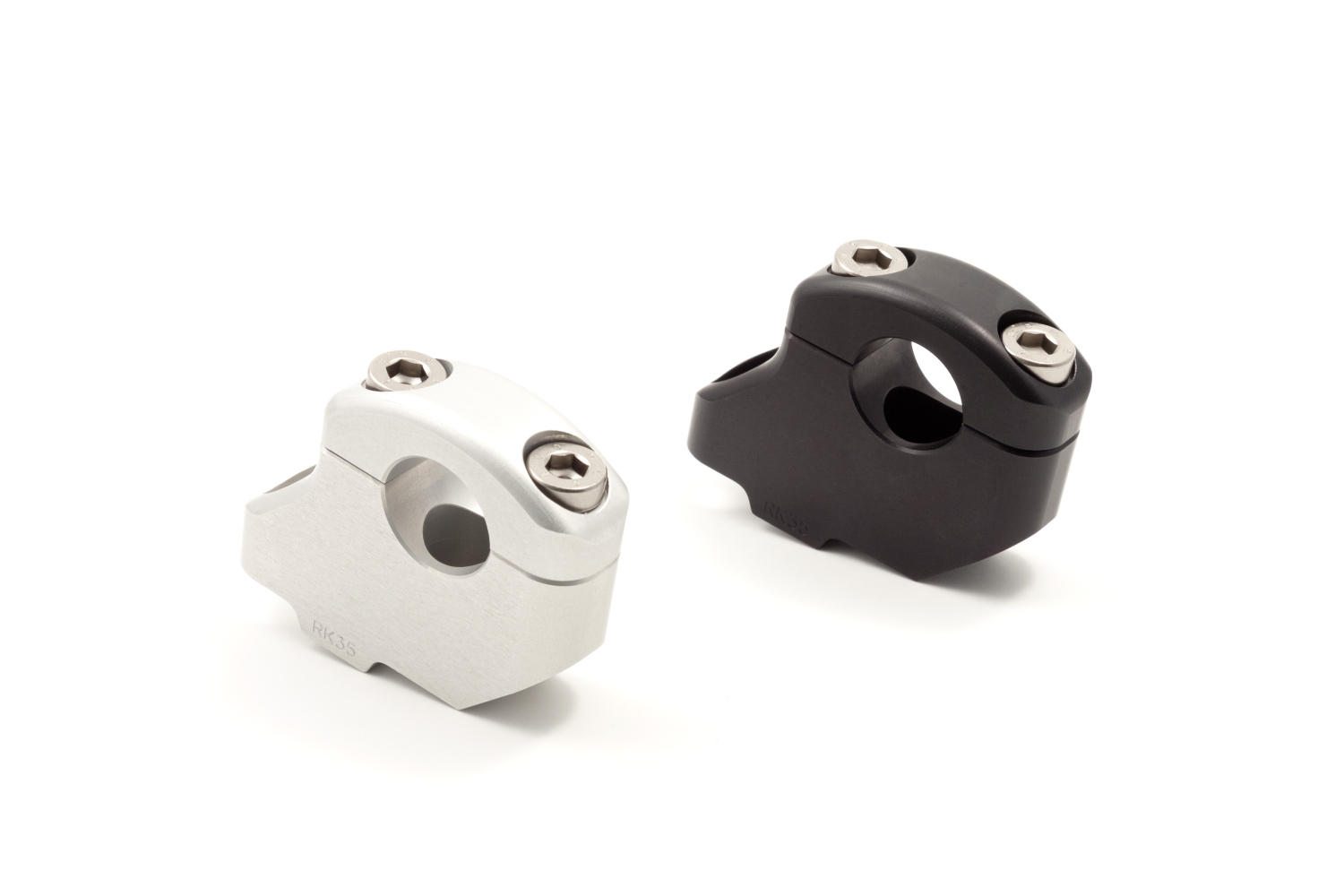

LSL handlebar risers RiseUp for 7/8 inch handlebar

Clamp blocks that are installed into the series clamping. By using the milled spacer blocks, the handlebar position is moved upwards and closer to the rider. This results in a significantly more upright and relaxed seating position.

- Material: aluminium
- Material treatment: CNC-milled, anodised
- Offset: 25 mm or 35 mm higher, 17 mm closer to the rider
- Mounting: For all motorcycles with 32-35 mm hole spacing and 7/8 inch handlebar (Ø22.2mm)
- Available in black or silver
- With ABE* for many models

Scope of delivery: 1 set, including mounting screws and parts certificate.

IMPORTANT NOTE:
Please check before conversion whether the vehicle intended for conversion is listed in the attached ABE!
For each vehicle, there are different requirements and conditions that allow the conversion of the clamp blocks.

*The model assignments of the LSL clamp blocks listed in the ABE are checked for use with the vehicle's standard handlebar.
The additional use of an LSL accessory handlebar is possible, but due to a different shape of the handlebar, it may require additional modifications to the vehicle (longer cables or lines).
Increasing the original handlebar can also lead to additional modifications to the vehicle.

Check whether the following conditions apply to your vehicle (see ABE):
- Use permitted with the use of a compensating shim for the triple clamp
- Use permitted with 20 mm longer brake line
- Use permitted with 30 mm longer brake line
- Use permitted with LSL instrument holder

Failure to comply will invalidate the vehicle's operating permit!

The conversion should only be carried out by trained specialist personnel.
