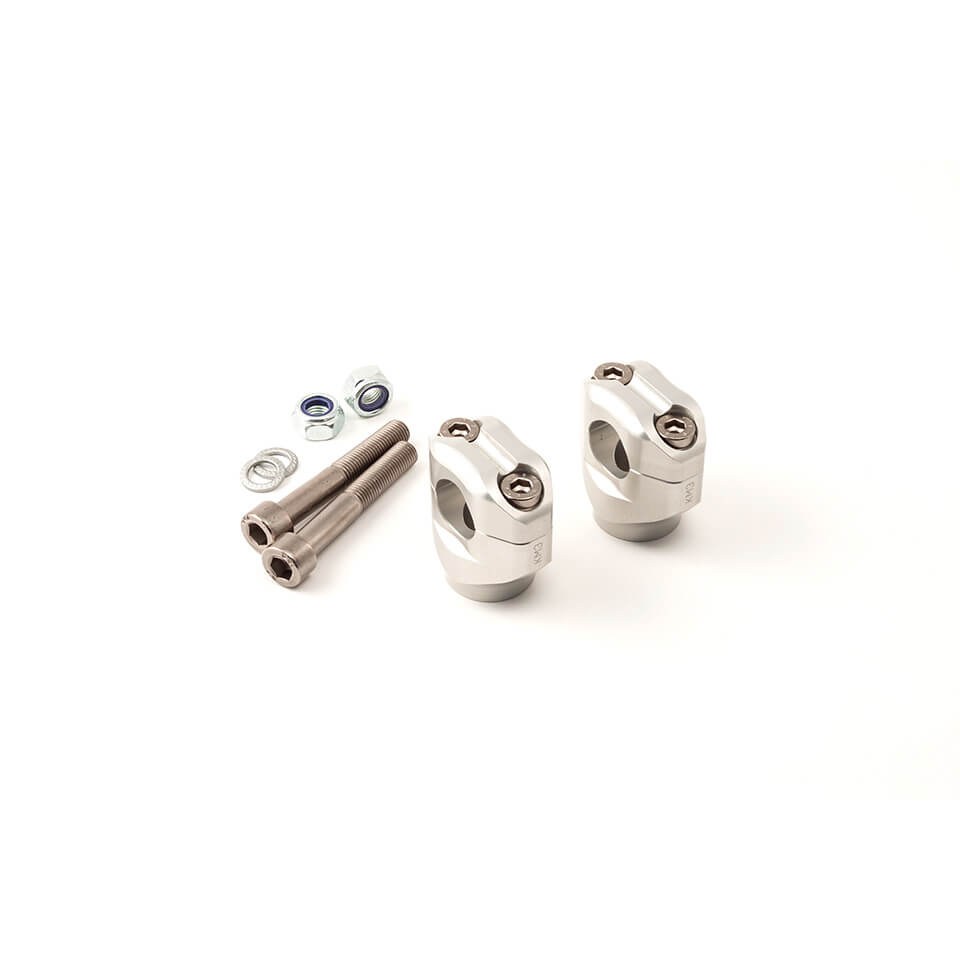

LSL Handlebar Clamp Kit ZRX1100, ZRX1200 22.2 mm, silver

Product Details

LSL Handlebar Clamp Kit ZRX1100, ZRX1200 22.2 mm, silver

General Description

Handlebar clamps for standard 22.2mm handlebar
suitable for the following vehicle:
Kawasaki ZRX1100/1200
ABE EC Type Approval No.
ZRT 10 C H619
ZRT 10 C e4*92/61*0011
ZRT 20 A e4*92/61*0106
ATTENTION: ADDENDUM IN PREPARATION!
Currently, registration is only possible via individual inspection (§19.2)!
Material: Aluminium
Material treatment: anodised
Offset: 20 mm higher than original
Mounting: at original mounting points
Dimensions: 22.2mm clamping
IMPORTANT NOTE: (Designation in ABE KM3) Please check before conversion whether the vehicle intended for the conversion is listed in the attached ABE!
For each vehicle, there are different prerequisites and conditions that allow for the conversion of the handlebar clamps.
The model assignments of the LSL handlebar clamps listed in the ABE are tested for use with the vehicle's standard handlebars.
Additional use of an LSL accessory handlebar is possible, but due to a different handlebar shape, it may require additional modifications to the vehicle (longer lines or cables).
Raising the original handlebar can also lead to additional modifications to the vehicle.
Check if the following conditions apply to your vehicle (-see ABE):
- Use permissible when using a compensation shim for the triple clamp
- Use permissible with a 20 mm longer brake line
- Use permissible with a 30 mm longer brake line
- Use permissible with LSL instrument holder
Failure to comply will invalidate the vehicle's operating permit!
The following items match this product: 22.2mm-handlebar
