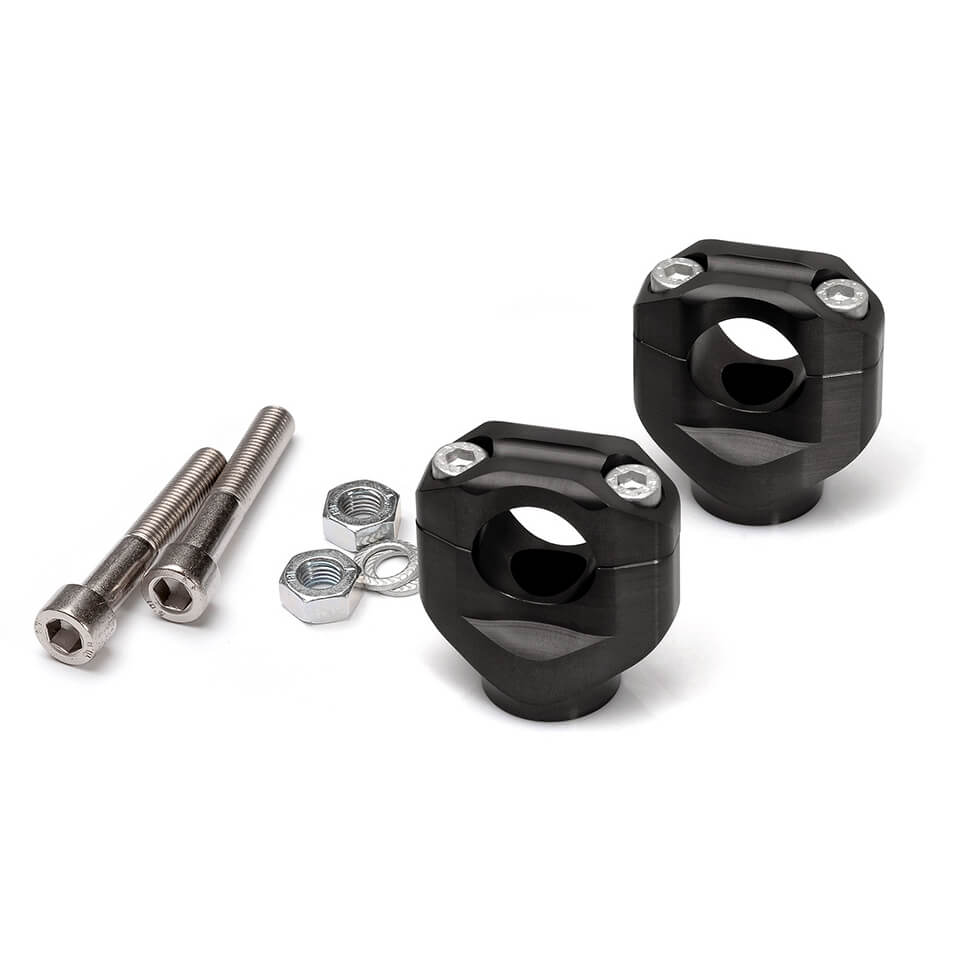

LSL Handlebar Clamp Kit ZRX1100, ZRX1200 22.2 mm, Black

Product details

LSL Handlebar Clamp Kit ZRX1100, ZRX1200 22.2 mm, black

General Description

Handlebar clamps for standard 22.2mm handlebar
suitable for the following vehicle:
Kawasaki ZRX1100/1200
ABE EG-BE No.
ZRT 10 C H619
ZRT 10 C e4*92/61*0011
ZRT 20 A e4*92/61*0106
ATTENTION: ADDENDUM IN PREPARATION!
Currently, registration only possible via individual approval (§19.2)!
Material: Aluminium
Material treatment: anodised
Offset: 20 mm higher than original
Mounting: at original mounting points
Dimensions: 22.2mm clamp
ATTENTION IMPORTANT NOTE: (Designation in ABE KM3) Please check before conversion whether the vehicle intended for conversion is listed in the attached ABE!
For each vehicle, there are different requirements and conditions that allow for the conversion of the handlebar clamps.
The model assignments of the LSL handlebar clamps listed in the ABE are tested for use with the vehicle's standard handlebar.
The additional use of an LSL accessory handlebar is possible, but due to a different shape of the handlebar, it may require additional changes to the vehicle (longer cables or lines).
Raising the original handlebar can also lead to additional changes to the vehicle.
Check if the following conditions apply to your vehicle (– see ABE):
- Use permitted when using a compensating shim for the triple clamp
- Use permitted with a 20 mm longer brake line
- Use permitted with a 30 mm longer brake line
- Use permitted with LSL instrument holder
Failure to comply will invalidate the vehicle's operating permit!
The following items match this product: 22.2mm-handlebar
