LSL Handlebar Clamp Kit 28.6 mm for Kawasaki Z650, 2017-2019, silver

Product Details

LSL Handlebar Clamp Kit 28.6 mm for Kawasaki Z650, model year 2017-2019, silver

General Description

LSL X-Bar handlebar clamps including instrument holder, model-specific for LSL X-Bar handlebar (28.6 mm)
- Not for use with the original handlebar! -
Material: Aluminium
Material treatment: CNC-milled, anodised
Mounting: At original mounting points
Dimensions: 28.6 mm clamping, for handlebar with a Ø of 28.6 mm
Our model-specific X-Bar handlebar clamps are mounted at the original mounting points. This allows an X-Bar handlebar (28.6mm) to be mounted on many models with an original handlebar (22.2 mm). The handlebar clamps are CNC-milled from high-quality solid aluminium. They replace the standard handlebar clamps to achieve a different height and a better look. For models with standard rubber mounting, this is retained.
127K155xxx, Position + 15mm to the standard handlebar clamp:
LSL X-Bar handlebar 28.6 mm:
• XD1: New speedometer bracket necessary. All original. Grip position: 45mm lower, 5mm further
• XD2: New speedometer bracket necessary. All original. Grip position: 45mm lower, 10mm further.
• X00: New speedometer bracket necessary. All original. Grip position: 5mm lower, 0mm further.
• XN1: New speedometer bracket necessary. All original. Grip position: 5mm higher, 15mm further.
• X01: New speedometer bracket necessary. All original. Grip position: 15mm higher, 10mm further.
Requirements:
• c) Clamp with upper part for Ø 28.6 mm
• m) with LSL instrument holder (included)
ATTENTION IMPORTANT NOTE:
• Use of the original handlebar is not possible with this clamp.
• The clamp is only registration-free in conjunction with an LSL-handlebar.
• Please check before ordering whether the vehicle intended for conversion is listed in the attached ABE!
• For each vehicle, there are different specified handlebar versions and requirements that necessitate modifications to the vehicle (e.g., longer lines or cables).
• Failure to comply with any requirements will invalidate the operating permit for the vehicle!
• You can find out which handlebar is suitable in the ABE or in our motorcycle database via check.

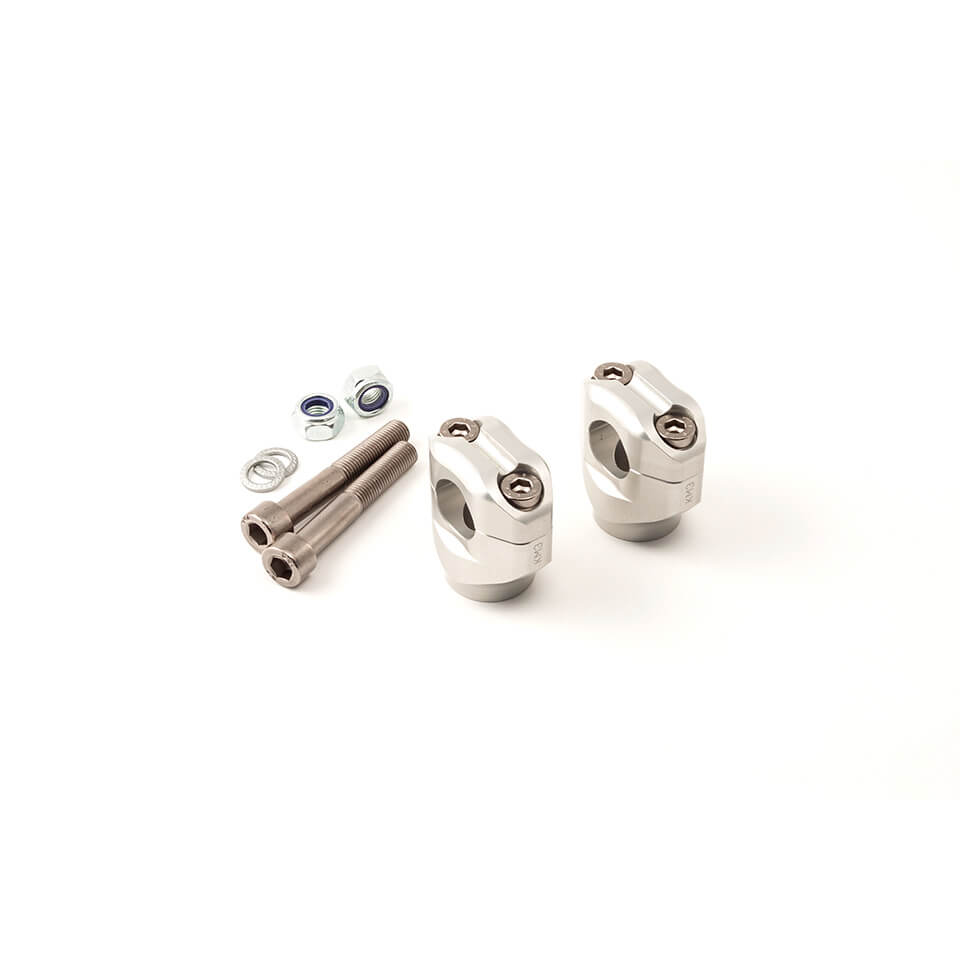

Scope of delivery: 1 pair including instrument holder and mounting material
