LSL Handlebar Clamp Kit 28.6/75mm, Black

Product Details

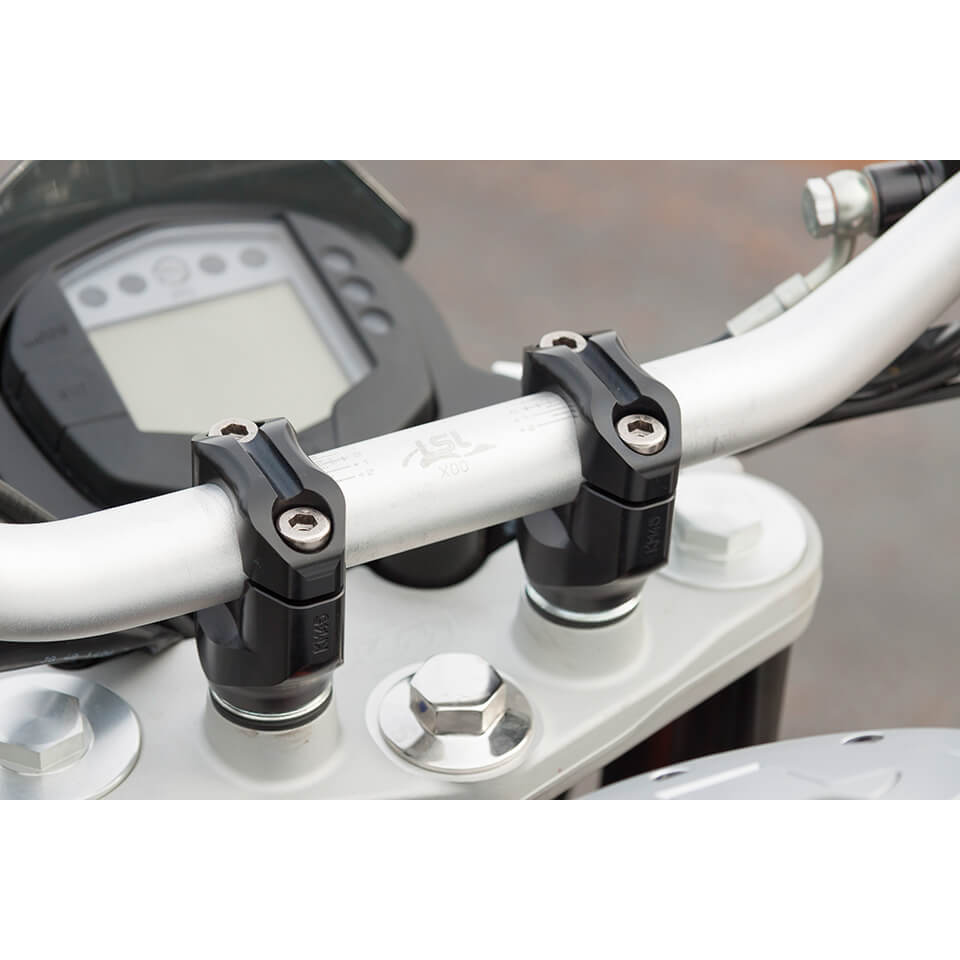

LSL Universal Handlebar Clamp Kit 28.6 mm, screw length 75 mm, black

General Description

X-Bar Universal Handlebar Clamps

For use with X-Bar-handlebars (28.6 mm), LSL offers the required handlebar clamps for mounting in the original fastening points of the __AT_GLASSARY_8__ triple clamps. The handlebar clamps are CNC-machined from high-quality solid aluminium. They replace the standard handlebar clamps to achieve a different height and a better appearance. They can be mounted in the original fastening points with centrally located M10 x 1.25 mm screws. For models with rubber mounts, these are retained.

Note:
Please check if your vehicle is listed in the ABE and determine the required screw length.

Attention:
This item is only registration-free if your motorcycle is assigned to handlebar clamp KM45/KG45 in the enclosed ABE and all conditions are observed.
For vehicles not listed in the model list, approval is possible through inspection in accordance with § 19(2) StVZO.

How to determine the screw length:
Measure how much the original screws protrude from the original handlebar clamps. Then, if applicable, add the thickness of the chosen spacer.
Otherwise, simply choose L = (the measured dimension).

Suitable rise by 15 or 25 mm: 127UN0...

ATTENTION! For motorcycles with fixed cast 22.2 mm handlebar mounts, please use adapter part no. 127RK25...

Material: Aluminium
Material finish: CNC-machined, anodised
Mounting: central screw mounting at the standard mounting points with M10x1.25mm screws
Handlebar clamp KM45: bottom edge of handlebar clamp to centre of handlebar 45 mm
Dimensions: 28.6 mm clamping, for handlebar with a Ø of 28.6 mm

Scope of delivery:
• Handlebar clamps (KM45) 1 pair
• Screws M8x25 4 pieces
• Screws M10x1.25 2 pieces in the chosen length
• U-washers M10 2 pieces
• Nuts M10x1.25 (self-locking) 2 pieces
