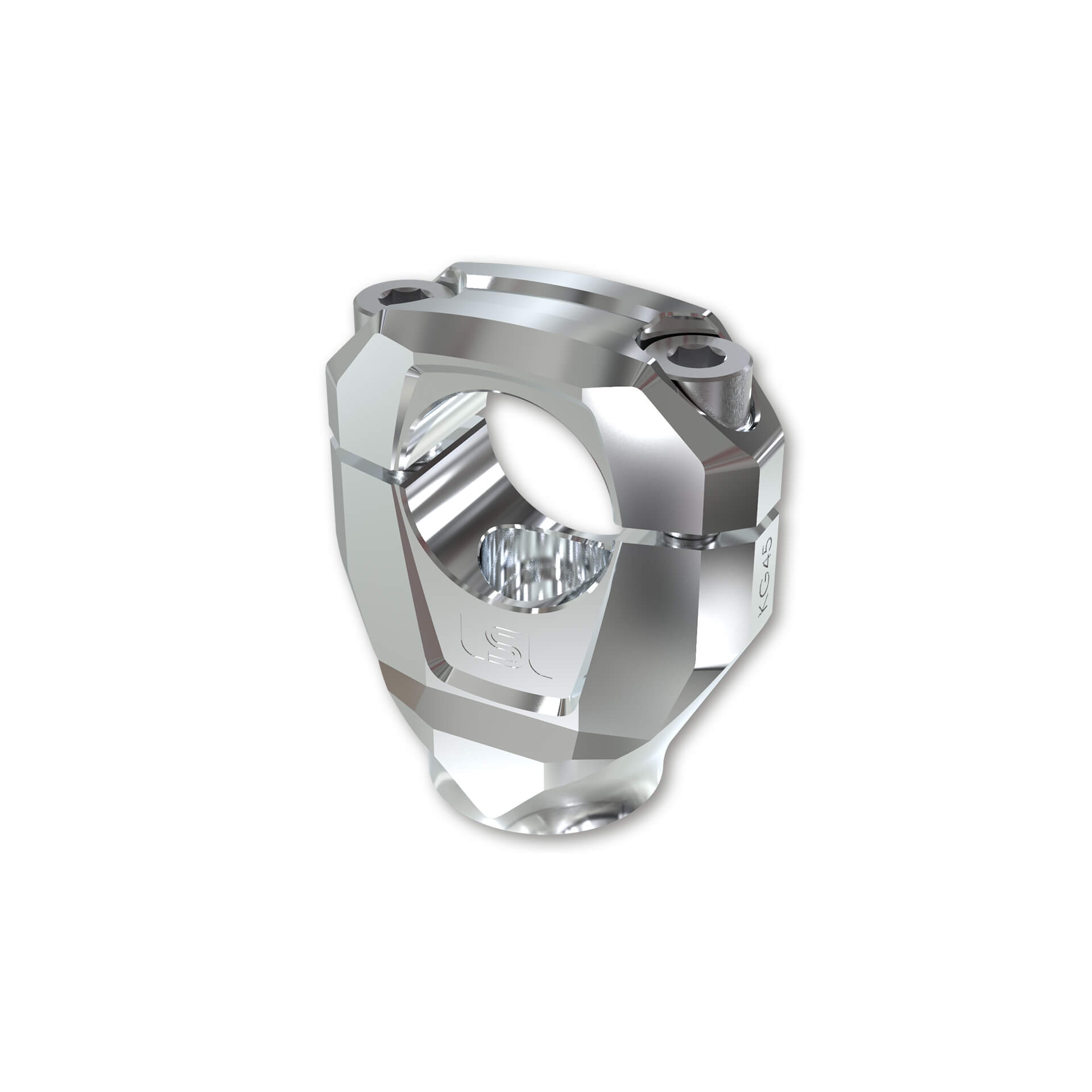

LSL GONIA Universal Clamp Mount Kit 28.6 mm, Screw Length 80 mm, Silver

Product Details

LSL GONIA Universal Clamp Mount Kit 28.6 mm, Screw Length 80 mm, Silver

General Description

LSL GONIA X-Bar Universal Clamp Mounts
For the use of X-Bar-handlebars (28.6 mm), LSL offers the necessary clamp mounts for bolting into the original mounting points of the upper triple clamps. The clamp mounts are CNC-milled from high-quality solid aluminium. They replace the standard clamp mounts to achieve a different height and a better appearance. They can be mounted in the original mounting points with centrally located M10 x 1.25 mm screws. For models with rubber mounting, this is retained.
Note:
Please check if your vehicle is listed in the ABE and determine the required screw length.
Attention:
This item is only registration-free if your motorcycle is assigned to clamp mount KM45/KG45 in the enclosed ABE and all conditions are observed.
For vehicles not listed in the model list, approval by inspection according to § 19(2) StVZO is possible.
How to determine the screw length:
Measure the length of the original screws that protrude from the original clamp mounts. Add the thickness of the chosen washer if applicable.
Otherwise, simply select L = (the measured dimension).
Matching rise of 15 or 25 mm: 127UN0...
ATTENTION! For motorcycles with permanently attached 22.2 mm handlebar mounts, please use adapter part no. 127RK25...
Material: Aluminium
Material treatment: CNC-milled, anodised
Mounting: central bolting to the standard mounting points with M10x1.25mm screws
Clamp mount KG45: bottom edge of clamp mount to centre of handlebar 45 mm
Dimensions: 28.6 mm clamping, for handlebar with a Ø of 28.6 mm
Scope of delivery:
• Clamp mounts (KG45) 1 pair
• Screws M8x25 4 pieces
• Screws M10x1.25 2 pieces in the selected length
• U-washers M10 2 pieces
• Nuts M10x1.25 (self-locking) 2 pieces
