LSL GONIA Universal Clamp Kit 28.6 mm, 45 mm, M10x1.25, silver

General Description

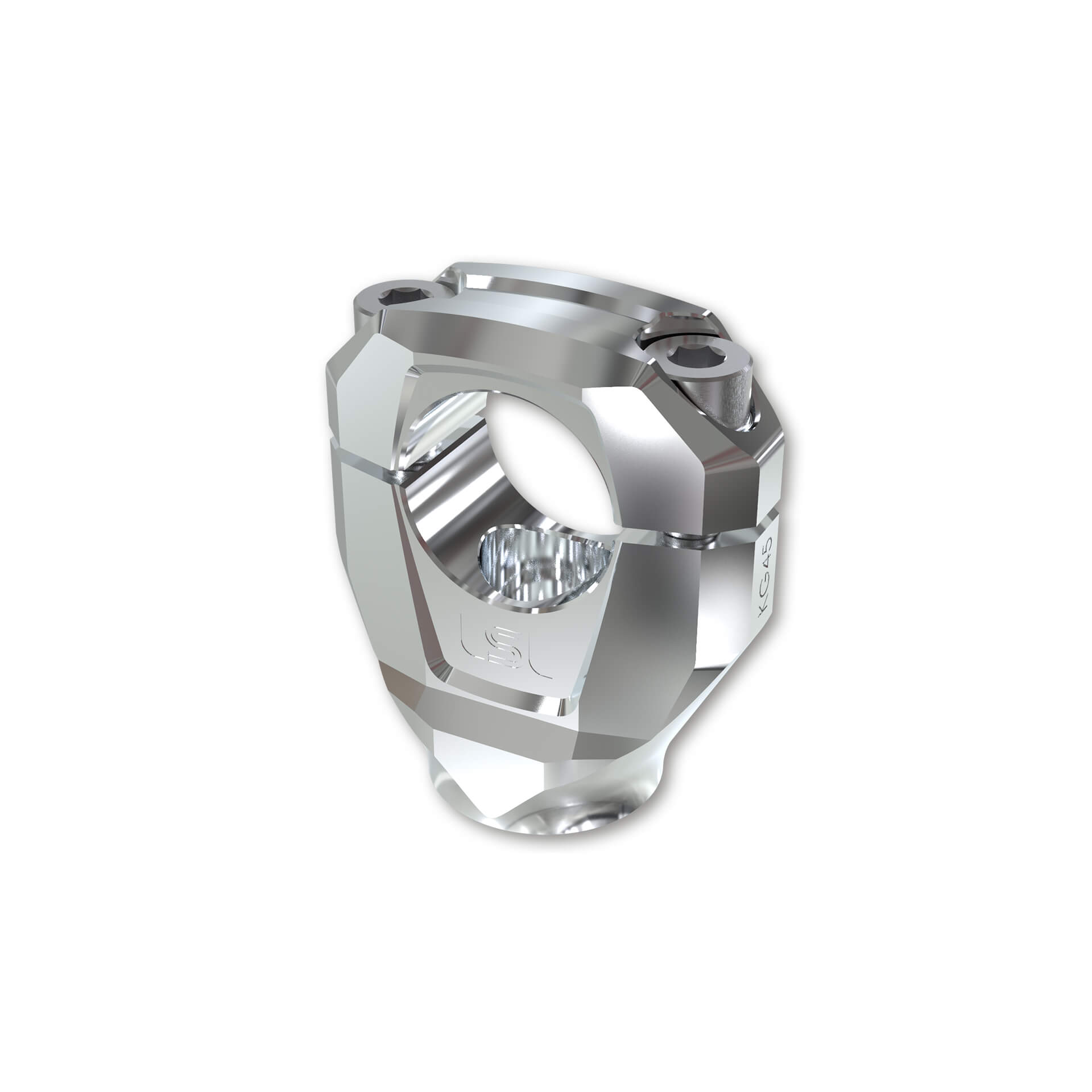

LSL GONIA X-Bar Universal Handlebar Clamps
For the use of X-Bar-handlebars (28.6 mm), LSL offers the necessary clamps for mounting in the original mounting points of the upper triple clamps. The clamps are CNC-milled from high-quality solid aluminium. They replace the series clamps to achieve a different height and a better look. They can be mounted in the original mounting points with centrally located M10 x 1.25 mm screws. For models with rubber mounts, these are retained.
Note:
Please check if your vehicle is listed in the ABE and determine the required screw length.
Attention:
This item is only exempt from registration if your motorcycle is assigned to clamp KM45/KG45 in the enclosed ABE and all conditions are met.
For vehicles not listed in the model list, approval by inspection in accordance with § 19(2) StVZO is possible.
How to determine the screw length:
Measure the length of the original screws that protrude from the original clamps. If applicable, add the thickness of the chosen washer.
Otherwise, simply select L = (the measured dimension).
Suitable rise of 15 or 25 mm: 127UN0...
ATTENTION! For motorcycles with fixed cast 22.2 mm handlebar mounting, please use adapter part no. 127RK25...
Material: Aluminium
Material treatment: CNC-milled, anodised
Mounting: central screwing to the standard mounting points with M10x1.25mm screws
Clamp KG45: bottom edge of clamp to centre of handlebar 45 mm
Dimensions: 28.6 mm clamping, for handlebar with a Ø of 28.6 mm
Scope of delivery:
• Clamps (KG45) 1 pair
• Screws M8x25 4 pieces
• Screws M10x1.25 2 pieces in the selected length
• U-washer M10 2 pieces
• Nuts M10x1.25 (self-locking) 2 pieces
