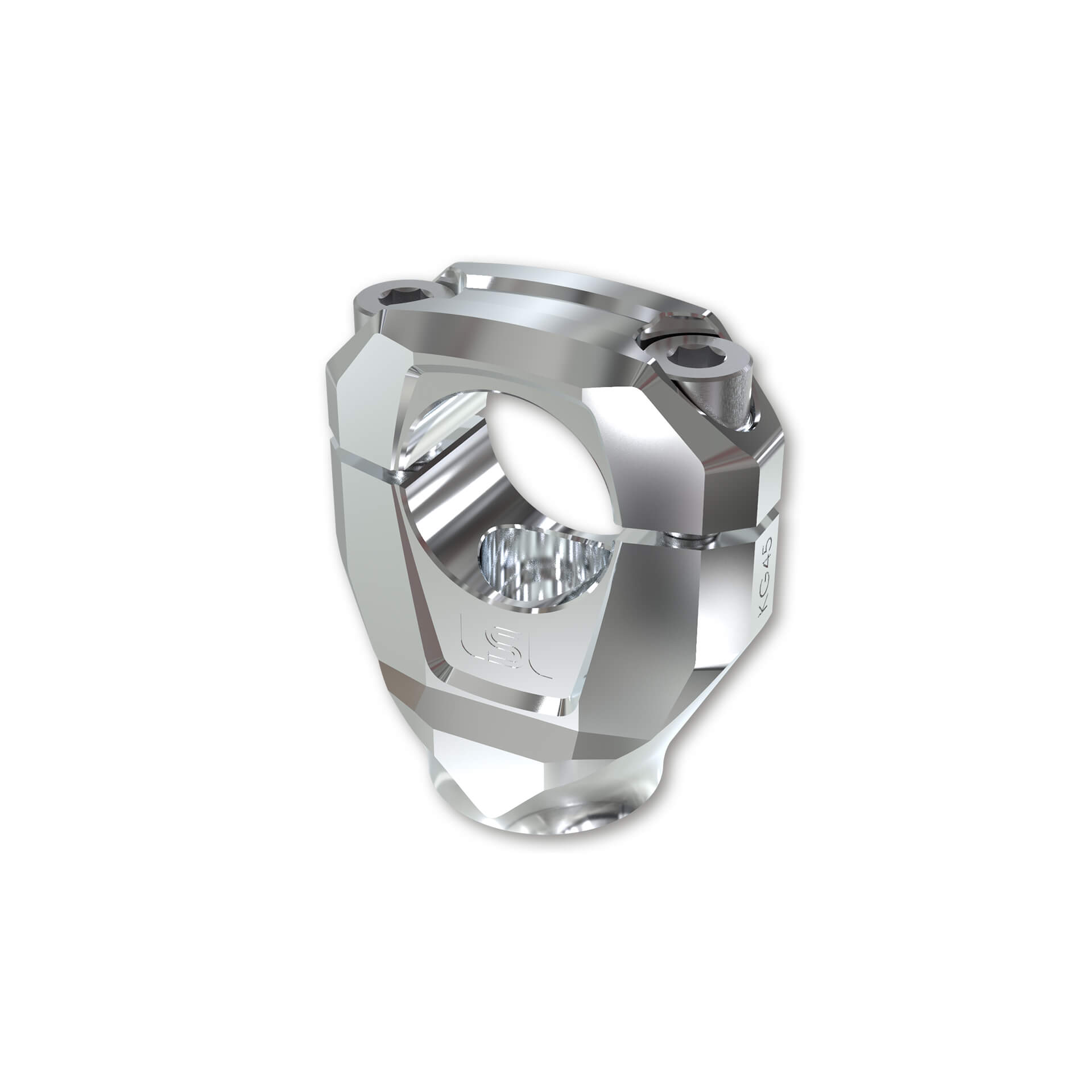

LSL GONIA Riser Clamp Kit 28.6 mm for Kawasaki Z650, 2017-2019, silver

Product Details

LSL GONIA Riser Clamp Kit 28.6 mm for Kawasaki Z650, model year 2017-2019, silver

General Description

LSL GONIA X-Bar handlebar clamp risers including instrument holder, model-specific for LSL X-Bar handlebar (28.6 mm)
- Not for use with the original handlebars! -
Material: Aluminium
Material treatment: CNC-milled, anodised
Mounting: On original mounting points
Dimensions: 28.6 mm clamping, for handlebar with a Ø of 28.6 mm
Our model-specific X-Bar handlebar clamp risers are mounted on the original mounting points. This allows an X-Bar handlebar (28.6mm) to be mounted on many models with original handlebar (22.2 mm). The clamp risers are CNC-milled from high-quality solid aluminium. They replace the standard clamp risers to achieve a different height and a better look. For models with standard rubber mounting, this is retained.
127K155xxx, Position + 15mm compared to standard handlebar clamp riser:
LSL X-Bar handlebar 28.6 mm:
• XD1: New speedometer bracket necessary. All original. Grip position: 45mm lower, 5mm further forward
• XD2: New speedometer bracket necessary. All original. Grip position: 45mm lower, 10mm further forward.
• X00: New speedometer bracket necessary. All original. Grip position: 5mm lower, 0mm further forward.
• XN1: New speedometer bracket necessary. All original. Grip position: 5mm higher, 15mm further forward.
• X01: New speedometer bracket necessary. All original. Grip position: 15mm higher, 10mm further forward.
Conditions:
• c) Riser clamp with upper part for Ø 28.6 mm
• m) with LSL instrument holder (included in delivery)
ATTENTION IMPORTANT NOTE:
• The use of the original handlebar is not possible with this clamp riser.
• The clamp riser is registration-free only in conjunction with an LSL-handlebar.
• Please check before ordering whether the vehicle intended for conversion is listed in the attached ABE!
• For each vehicle, there are different specified handlebar versions and conditions that require modifications to the vehicle (e.g., longer lines or cables).
• Failure to observe any conditions will invalidate the operating permit for the vehicle!
• You can find out which handlebar is suitable in the ABE or in our motorcycle database via check.
Scope of delivery: 1 pair including instrument holder and mounting material
