LSL GONIA Handlebar Clamp Kit 28.6 mm, for Kawasaki Z650RS, 2022-, silver

Product Details

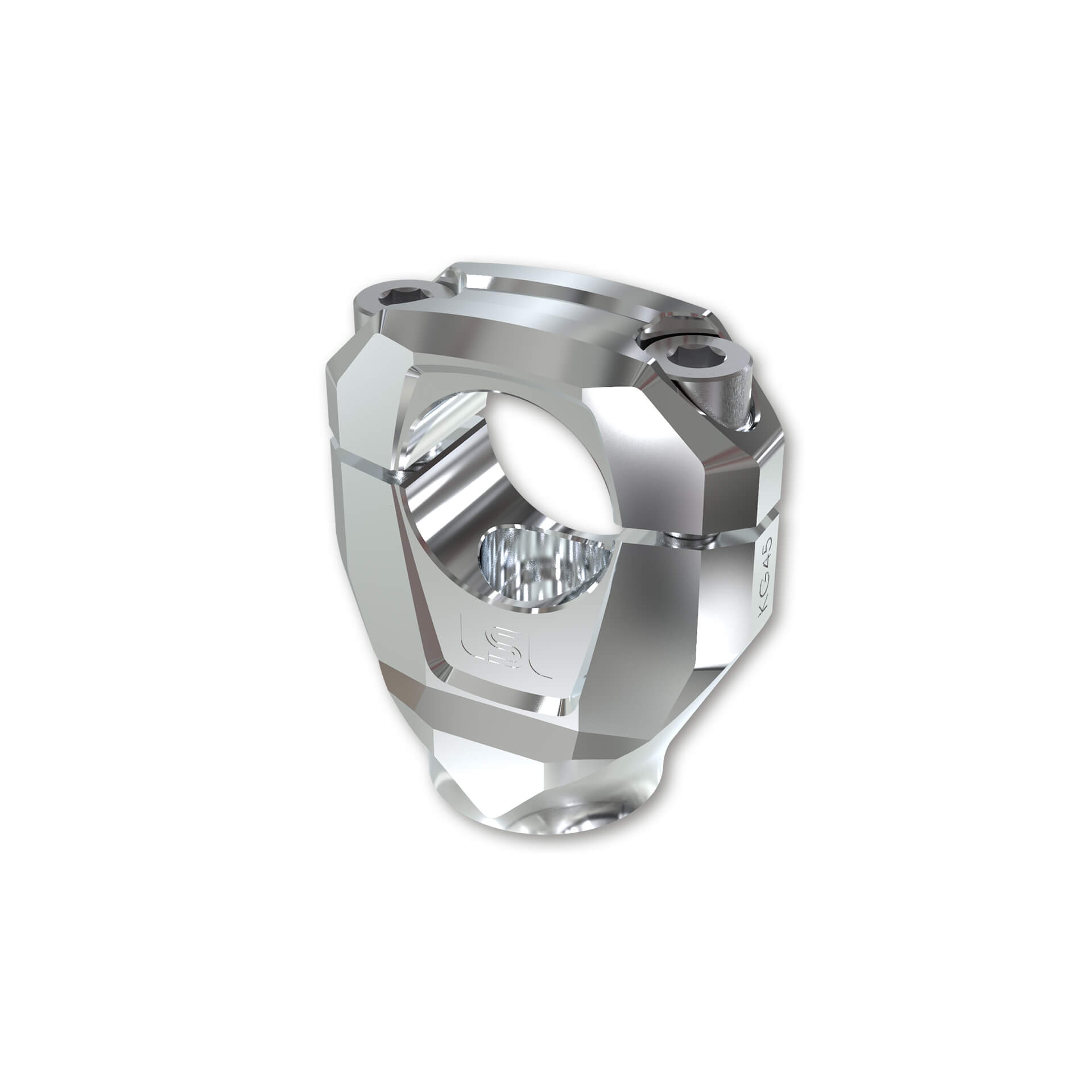

LSL GONIA Handlebar Clamp Kit 28.6 mm, for Kawasaki Z650RS, model year 2022-, silver

General Description

LSL GONIA X-Bar handlebar clamps, model-specific for LSL X-Bar handlebar (28.6 mm)
Material: Aluminium
Material treatment: CNC-milled, anodised
Mounting: At original mounting points
Dimensions: 28.6 mm clamping diameter, for handlebar with a Ø of 28.6 mm
Our model-specific X-Bar handlebar clamps are mounted at the original mounting points. This allows an X-Bar handlebar (28.6mm) to be mounted on many models with original handlebar (22.2 mm). The handlebar clamps are CNC-milled from high-quality solid aluminium. They replace the standard handlebar clamps to achieve a different height and an improved look. For models with standard rubber mounting, this is retained.
Mountable with the following handlebars:
X00: grip position 30mm lower, 60mm further
X01: grip position 10mm lower, 15mm further

X02: grip position 5mm further
X04: grip position 30mm lower, 35mm further
XB3: grip position 10mm higher, 10mm closer
XD2: grip position 65mm lower, 35mm further
XN1: grip position 5mm lower, 10mm further
ATTENTION IMPORTANT NOTE:
• The use of the original handlebar is not possible with this handlebar clamp.
• The handlebar clamp is registration-free only in conjunction with an LSL-handlebar.
• Please check before ordering whether the vehicle intended for conversion is listed in the attached ABE!
• For each vehicle, there are different specified handlebar versions and requirements that necessitate modifications to the vehicle (e.g. longer cables or lines).
• Failure to comply with any requirements will void the operating permit for the vehicle!
• You can check in the ABE or in our motorcycle database via check which handlebar is suitable.
Scope of delivery: 1 pair including mounting material
