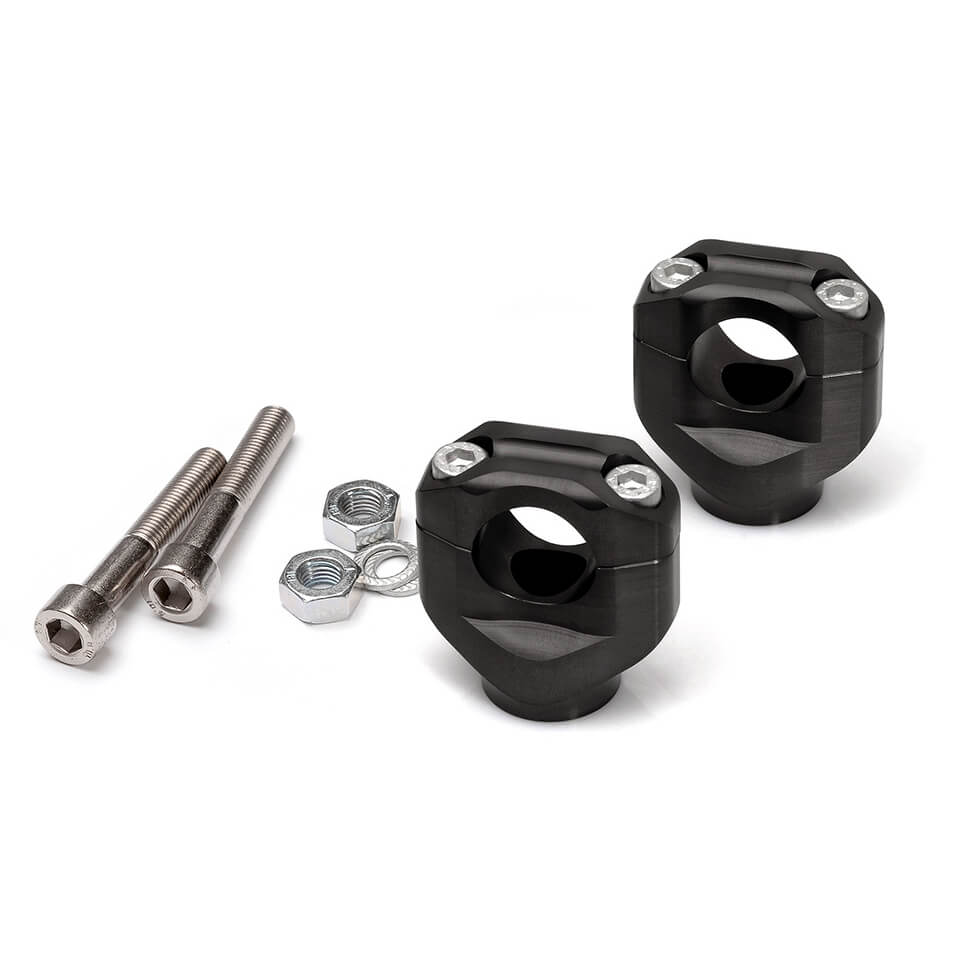

LSL Clamp Block Kit 28.6 mm for Kawasaki Z900, 2017-, Black

Product details

LSL Clamp Block Kit 28.6 mm for Kawasaki Z900, model year 2017-, black

General description

LSL X-Bar model-specific clamp blocks for LSL X-Bar handlebar (28.6 mm), incl. new instrument bracket plate.
- Not for use with the original handlebars! -
Material: Aluminium
Material finish: CNC-milled, anodised
Mounting: At original mounting points
Dimensions: 28.6 mm clamping, for handlebar with a Ø of 28.6 mm
Our model-specific X-Bar clamp blocks are mounted at the original mounting points. This allows an X-Bar handlebar (28.6 mm) to be fitted to many models with original handlebar (22.2 mm). The clamp blocks are CNC-milled from high-quality solid aluminium material. They replace the standard clamp blocks to achieve a different height and a better look. For models with standard rubber mounting, this is retained.
LSL X-Bar handlebar 28.6 mm:
• X00: All original. Grip position: 30mm lower, 15mm further.
• XN1: All original. Grip position: 20mm lower, 5mm closer.
• X01: All original. Grip position: 10mm lower, 10mm closer.
Requirements:
• c) Clamp block with top clamp for Ø 28.6 mm
• m) with LSL instrument holder
IMPORTANT NOTE NOTICE:
• Use of the original handlebar is not possible with this clamp block.
• The clamp block is only registration-free in conjunction with an LSL-handlebar.
• Please check before ordering whether the vehicle intended for conversion is listed in the ABE attached here!
• For each vehicle, there are different specified handlebar versions and requirements that necessitate modifications to the vehicle (e.g., longer cables or lines).
• Failure to observe any requirements will invalidate the operating permit for the vehicle!
• You can find out which handlebar is suitable in the ABE or in our motorcycle database via check.
Scope of delivery: 1 pair including instrument bracket plate and mounting material
