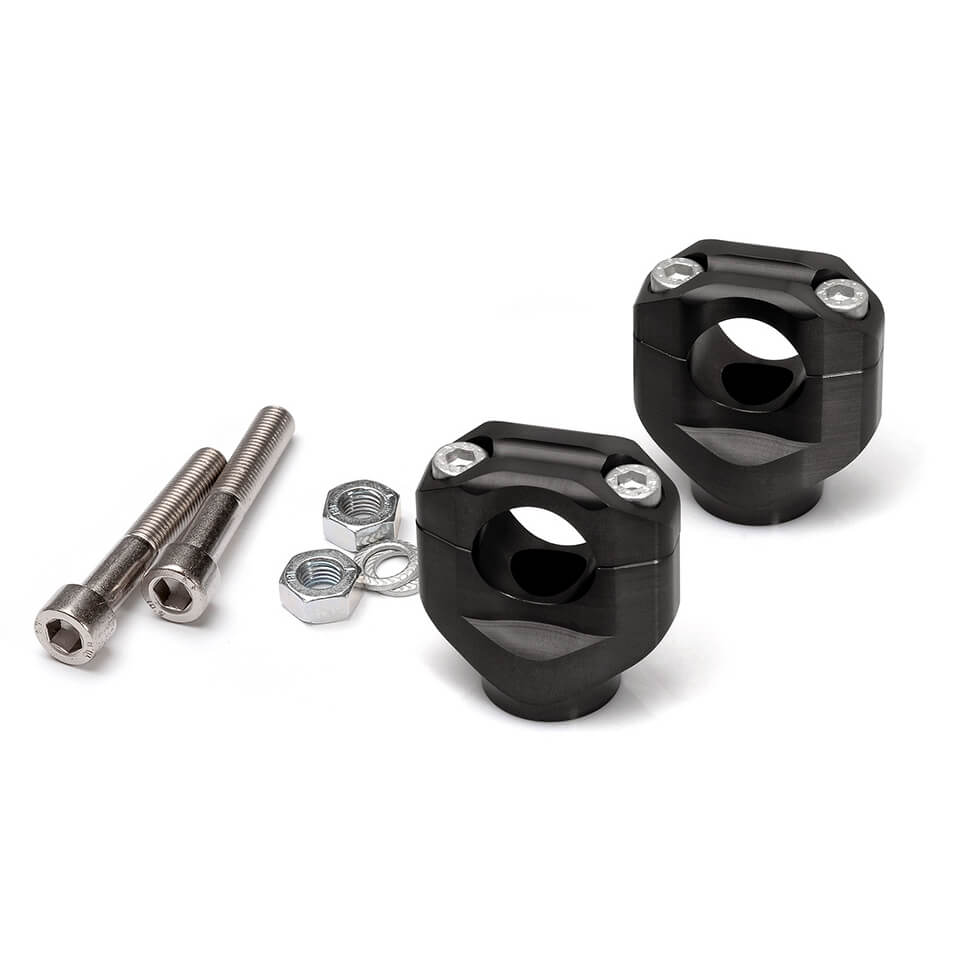

LSL 28.6 mm Bar Clamp Kit for Kawasaki Z650RS, 2022-, black

Product Details

LSL 28.6 mm bar clamp kit for Kawasaki Z650RS, model year 2022-, black

General Description

LSL X-Bar clamp risers, model-specific for the LSL X-Bar handlebar (28.6 mm) listed below
Material: Aluminium
Material treatment: CNC-milled, anodised
Mounting: To original mounting points
Dimensions: 28.6 mm clamp, for handlebar with a Ø of 28.6 mm
Our model-specific X-Bar clamp risers are mounted to the original mounting points. This allows an X-Bar handlebar (28.6 mm) to be mounted on many models with original handlebar (22.2 mm). The clamp risers are CNC-milled from high-quality solid aluminium. They replace the standard clamp risers to achieve a different height and an improved appearance. For models with standard rubber mounting, this is retained.
Mountable with the following handlebars:
X00: Grip position 30mm lower, 60mm further
X01: Grip position 10mm lower, 15mm further

X02: Grip position 5mm further
X04: Grip position 30mm lower, 35mm further
XB3: Grip position 10mm higher, 10mm closer
XD2: Grip position 65mm lower, 35mm further
XN1: Grip position 5mm lower, 10mm further



ATTENTION IMPORTANT NOTE:
• The use of the original handlebar is not possible with these clamp risers.
• The clamp risers are only free from registration requirements in conjunction with an LSL handlebar.
• Please check before ordering whether the vehicle intended for conversion is listed in the attached ABE!
• For each vehicle, there are different specified handlebar versions and requirements that necessitate changes to the vehicle (e.g., longer lines or cables).
• Failure to comply with any requirements will invalidate the vehicle's operating licence!
• You can check in the ABE or in our motorcycle database, which handlebar is suitable.
Scope of delivery: 1 pair including mounting material
