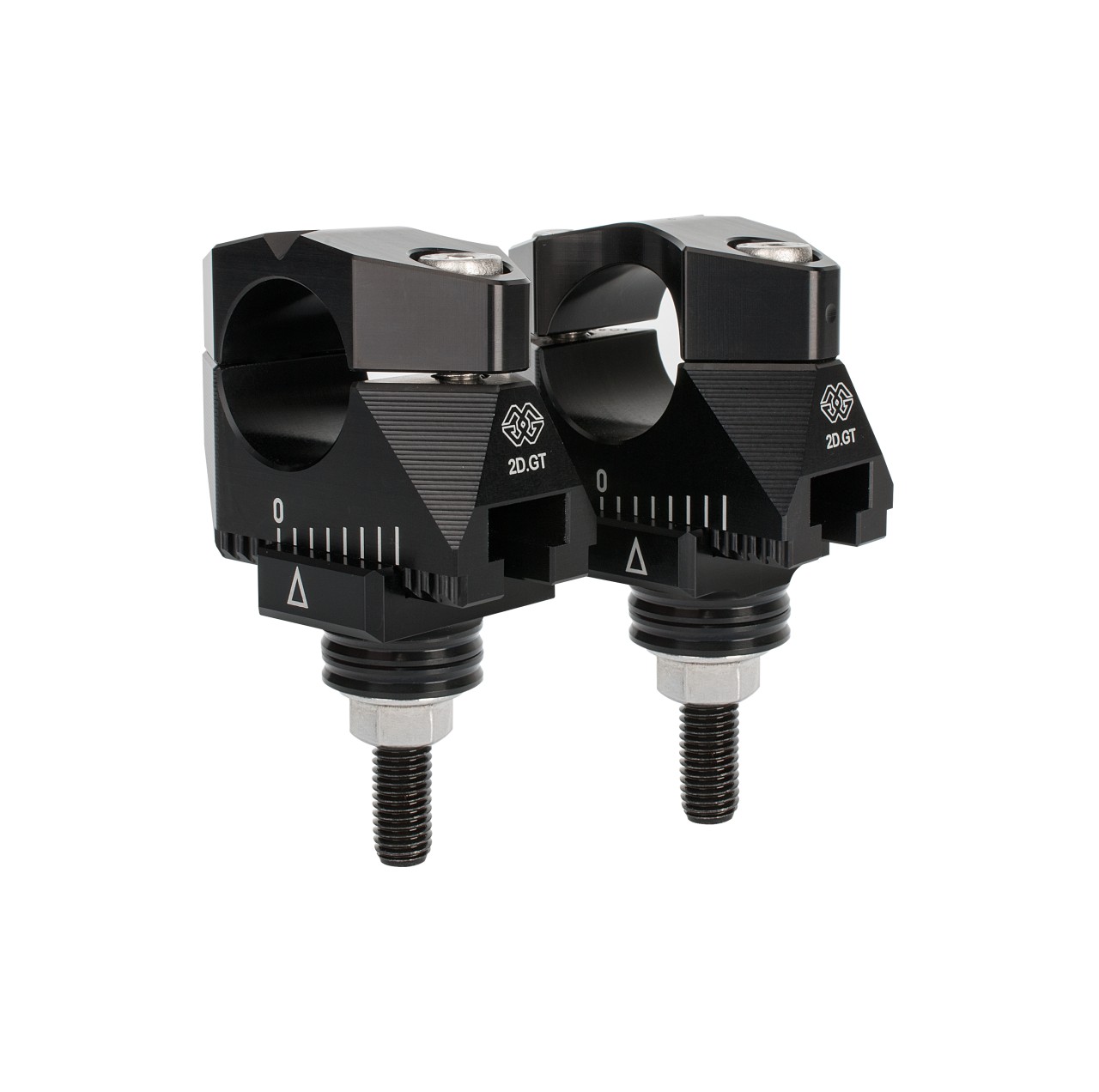

GILLES 2DGT adjustable handlebar risers black
€216.32 gross €227.71 RRP incl. VAT
Article number:
GI-2DGT-02-12-B
Product details
GILLES TOOLING 2DGT adjustable handlebar risers with ABK-12 (incl. speedometer bracket), colour: black, with ABE, for DucatiScrambler 800, type K1, model year 2015-2016
Scrambler 800, type 3K/4K, from model year 2021- ABE in preparation
Scrambler 1100, type KG/KF, model year 2018-
General description

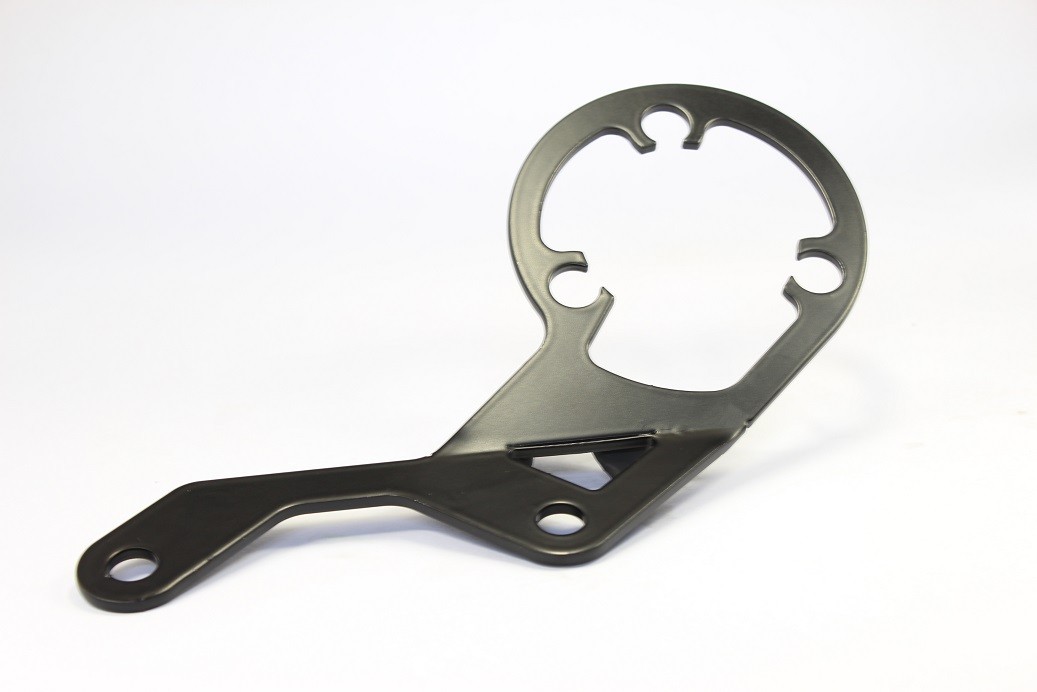

The revolutionary 2DGT clamps help to find the perfect position for the tube handlebar. Movable up and down, as well as front and back, these clamps allow for unprecedented adjustment options combined with an elegant look. For the Scrambler, the necessary speedometer bracket (can only be used in conjunction with the 2DGT) is supplied directly.Note for use with the Scrambler 1100: ONLY usable in conjunction with the original handlebar. Cannot be used with the Scrambler 1100 Sport version.

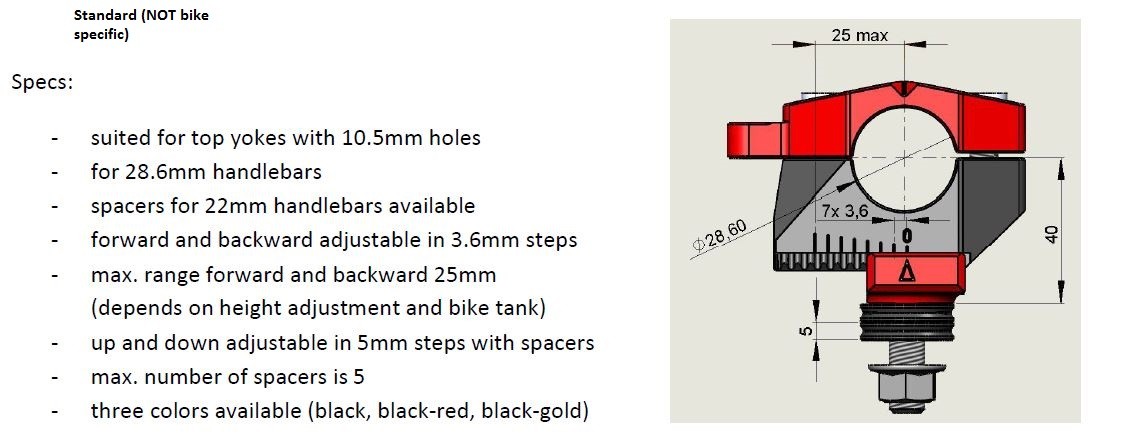

Details:
Suitable for upper triple clamps with 10.5mm holes
For 28.6mm tapered handlebar
Adjustable forwards and backwards in 3.6mm steps (max. 25 mm in each direction)
Adjustable up and down in 5mm steps with washers
| handlebar: | Handlebar risers |
|---|
Note for use with the Scrambler 1100: ONLY usable in conjunction with the original handlebar. Cannot be used with the Scrambler 1100 Sport version!!
- Adjustable front and rear in 3.6mm steps
- With the included spacers, the handlebar can be raised by 10mm in 5mm steps
- Without spacers, the handlebar height corresponds to the original
- handlebar clamp 28.6mm
- Original Yamaha handlebar fit or Gilles Tooling GTO handlebar
- Adjustable front and rear in 3.6mm steps
- With the included spacers, the handlebar can be raised by 10mm in 5mm steps
- Without spacers, the handlebar height corresponds to the original
- handlebar clamp 28.6mm
- Original Yamaha handlebar fit or Gilles Tooling GTO handlebar
| Manufacturer | Model | Additional designation | Type | Model year | Homologation | ccm |
|---|---|---|---|---|---|---|
| Ducati | Scrambler 1100 | Special | KF EURO4 | 2017 - 2020 | ABE | 1100 |
| Ducati | Scrambler 1100 | KF EURO4 | 2017 - 2020 | ABE | 1100 | |
| Ducati | Scrambler 1100 | KG EURO4 | 2017 - 2020 | ABE | 1100 | |
| Ducati | Scrambler 800 | Desert Sled | 3K EURO5 | 2021 - | ABE in preparation | 800 |
| Ducati | Scrambler 800 | Icon Dark, Nightshift | 3K EURO5 | 2021 - | ABE in preparation | 803 |
| Ducati | Scrambler 800 | Urban Motard | 3K EURO5 | 2022 - | ABE in preparation | 803 |
| Ducati | Scrambler 800 | Icon Dark, Nightshift | 4K EURO5 | 2021 - | ABE in preparation | 803 |
| Ducati | Scrambler 800 | K1 | 2015 - 2016 | ABE | 803 |
