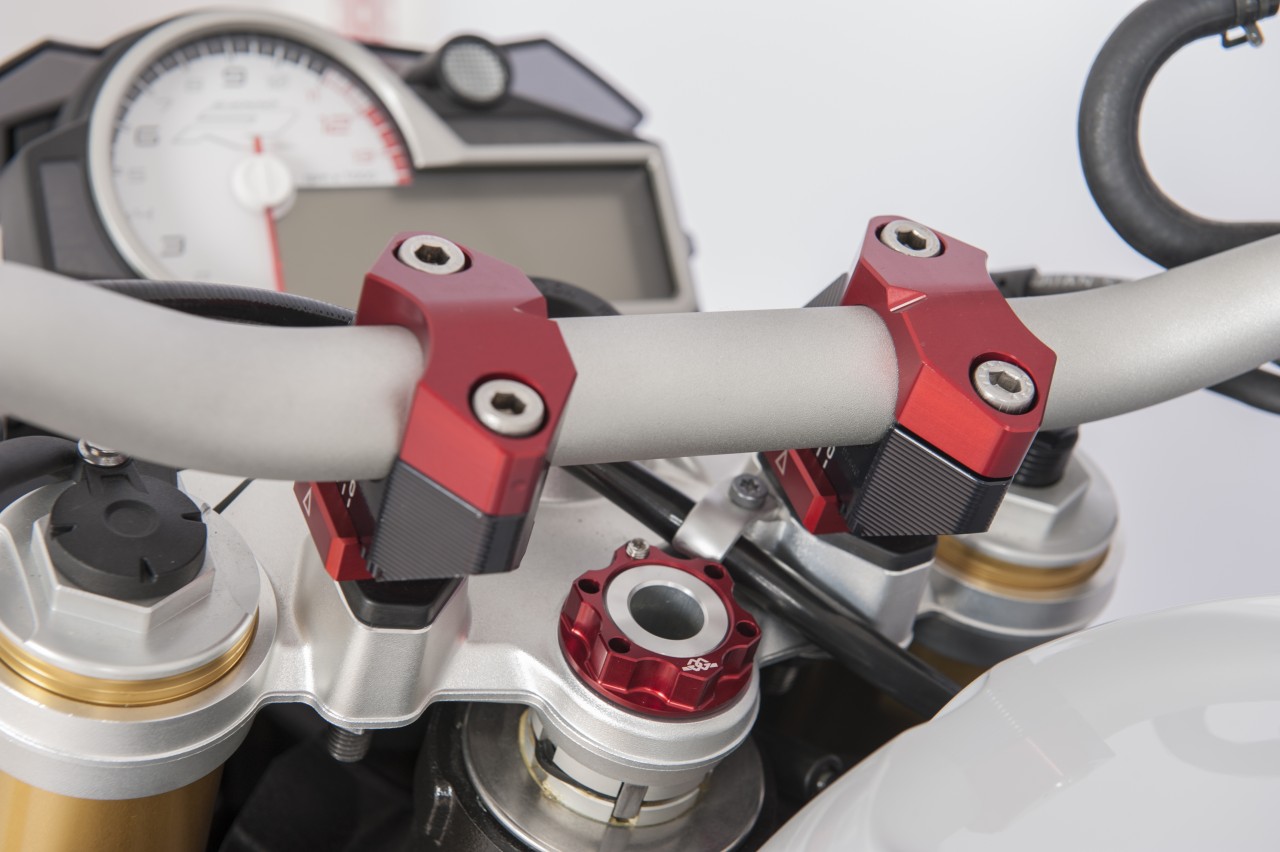

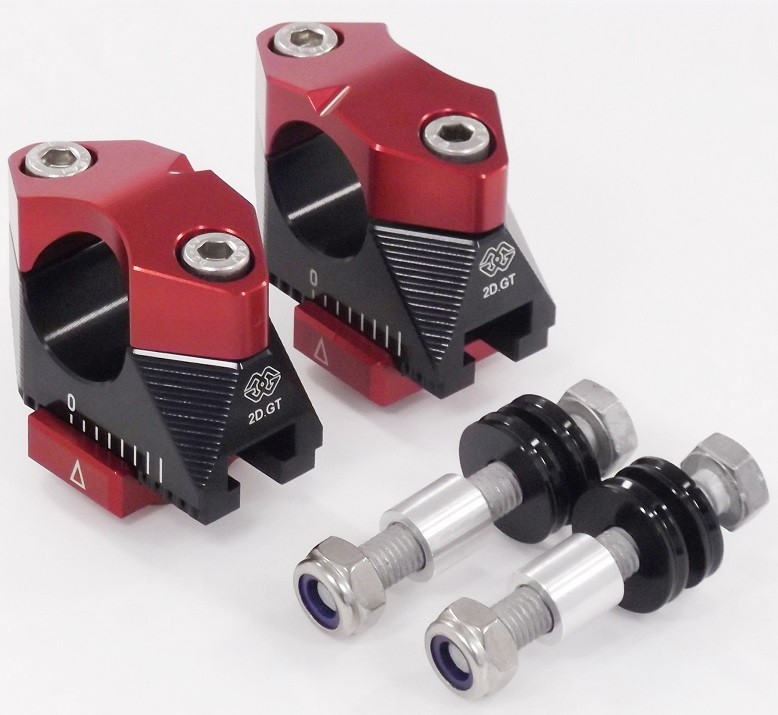

GILLES 2DGT adjustable handlebar risers black/red
€204.88 gross €215.66 RRP incl. VAT
Article number:
GI-2DGT-02-08-BR
Product details
GILLES TOOLING 2DGT adjustable handlebar risers with ABK 08, colour: black/red for Triumph Speed Triple R, Type NN01, (from model year 2016-) Speed Triple S, Type NN01, (from model year 2016-)General description
The revolutionary 2DGT clamps help to find the perfect position for the tube handlebar. Adjustable up and down as well as front and back, these clamps allow for unprecedented adjustment options combined with an elegant look.Details:

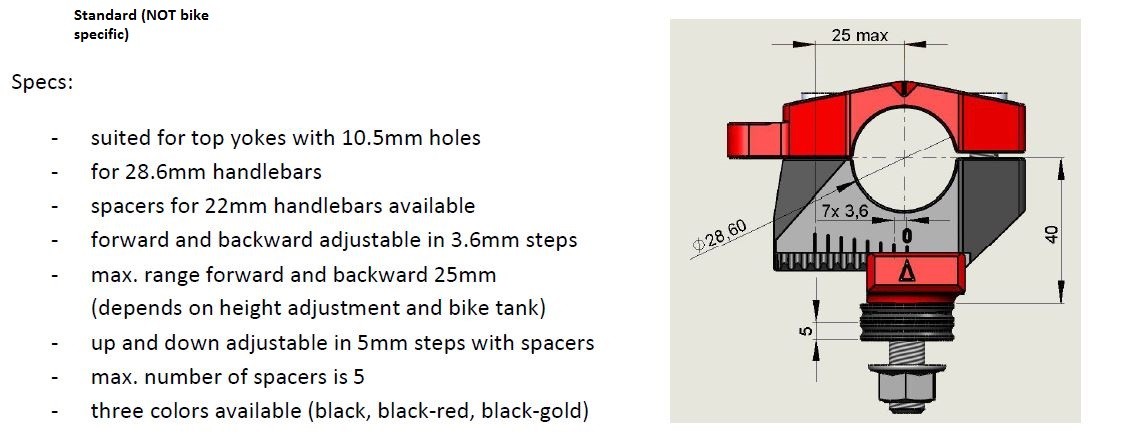

Suitable for upper triple clamp with 10.5mm holes
For 28.6mm tapered handlebar
Adapter for 22mm handlebar optional
Adjustable forwards and backwards in 3.6mm increments (max. 25 mm per direction)
Adjustable up and down in 5mm increments with washer
Max. 5 washer included (model-dependent)
For S 1000 R from 2017: only with the original handlebar. Possible increase: 13mm, 18mm or 23mm
| handlebar: | Handlebar risers |
|---|
- Adjustable front and rear in 3.6mm increments
- With enclosed spacers, the handlebar can be raised by 10mm in 5mm increments
- Without spacers, the handlebar height corresponds to the original
- handlebar clamping 28.6mm
- to use 22mm handlebars, the accessory spacer kit 2DGT-RED-01-KIT must be used
- With enclosed spacers, the handlebar can be raised by 10mm in 5mm increments
- Without spacers, the handlebar height corresponds to the original
- handlebar clamping 28.6mm
- to use 22mm handlebars, the accessory spacer kit 2DGT-RED-01-KIT must be used
| Manufacturer | Model | Type | Model year | Variant/Version | Note | ccm |
|---|---|---|---|---|---|---|
| BMW | S1000R | 2R10 EURO4 | 2017 - 2019 | 1000 | ||
| Triumph | Speed Triple 1050 R | NN01 EURO4 | 2016 - | with and without ABS | 1050 | |
| Triumph | Speed Triple 1050 S | NN01 EURO4 | 2016 - | ABS/SP/F | with and without ABS | 1050 |
