GILLES 2DGT adjustable handlebar clamps black
€227.79 gross €239.77 RRP incl. VAT
Article number:
GI-2DGT-04-07-B
Product Details
GILLES TOOLING 2DGT adjustable handlebar clamps, colour: black, with ABE, for Suzuki DL1000 V-Strom, Type DD (model year 2014-2016) DL1000 V-Strom /XT, Type WDD0 (model year 2017-2022)also universally usable on many other vehicles, see dimensions (without ABE)
General Description

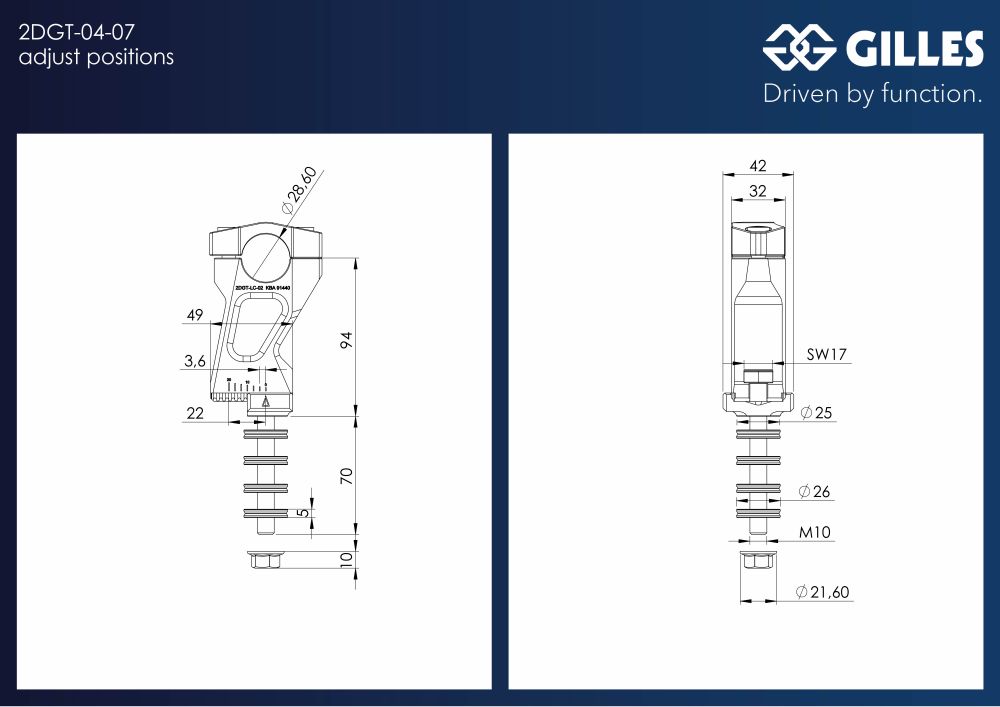

The revolutionary 2DGT clamps help to find the perfect position for the tube handlebar. Movable up and down, as well as forwards and backwards, these clamps allow for unprecedented adjustment possibilities in combination with a refined look.Details:
Suitable for upper triple clamps with 10.5mm holes
For 28.6mm tapered handlebar
Adapter for 22mm handlebar optional
Adjustable forwards and backwards in 3.6mm increments
Adjustable 14, 19 or 24mm lower than original
Max. 5 washers included in delivery (model-dependent)
| handlebar: | Handlebar risers |
|---|
Suitable for upper triple clamps with 10.5mm holes
For 28.6mm tapered handlebar
Adapter for 22mm handlebar optional
Adjustable forwards and backwards in 3.6mm increments (max. 25 mm in each direction)
Adjustable up and down in 5mm increments with washers
Max. 5 washers included in delivery (model-dependent)
For 28.6mm tapered handlebar
Adapter for 22mm handlebar optional
Adjustable forwards and backwards in 3.6mm increments (max. 25 mm in each direction)
Adjustable up and down in 5mm increments with washers
Max. 5 washers included in delivery (model-dependent)
| Manufacturer | Model | Additional designation | Type | Model year | Homologation | ccm |
|---|---|---|---|---|---|---|
| Suzuki | DL1000 V-Strom | DD | 2014 - 2016 | ABE | 1000 | |
| Suzuki | DL1000 V-Strom | WDD0 EURO4 | 2017 - | ABE | 1000 | |
| Suzuki | DL1000 V-Strom | XT | WDD0 EURO4 | 2017 - | ABE | 1000 |
