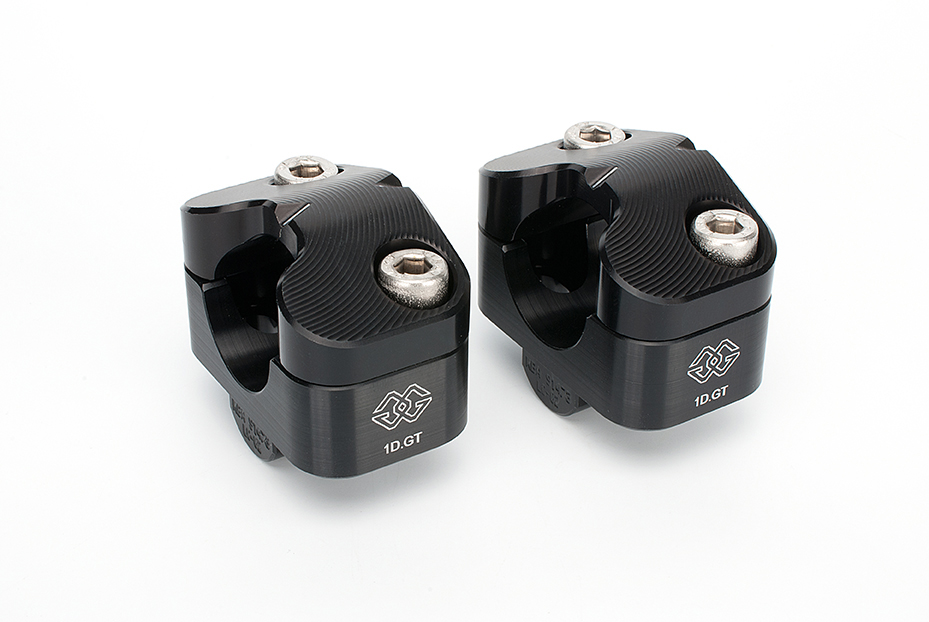

GILLES 1D.GT handlebar risers, black

GILLES 1D.GT handlebar risers, black
GILLES 1D.GT handlebar risers, black
GILLES 1D.GT handlebar risers, black
GILLES 1D.GT handlebar risers, black

€113.31 gross €119.29 RRP incl. VAT

Prices incl. VAT plus shipping costs

Article number: GI-1DGT-01-B
Immediately available

Product details

GILLES 1D.GT handlebar risers, colour: black anodised, with ABE, for vehicles according to the compatibility list

General description

The 1DGT clamps can be used for triple clamps with fixed handlebar mounts. The handlebar position is raised by 20mm. These clamps are designed for 28.6mm tapered handlebars. The 1DGT-01 can also be used as a universal product (without ABE): the dimensions can be found in the provided graphic.

Details:

Suitable for triple clamps with fixed handlebar mounts

In conjunction with 28.6mm handlebars

Optional 22mm adapters

Position 20mm higher than original
handlebar: Handlebar risers
handlebar offset compared to original: 19mm up, 9mm towards rider
Bolt spacing: 32-40mm
For mounting tapered Ø28.6mm handlebars on motorcycles with Ø22.2mm clamps
Can be mounted in 2 directions (wide clamping area or narrow clamping area)
markings for reading handlebar alignment
Visual enhancement of the motorcycle
More comfortable riding position due to handlebar offset
CNC machined from high-quality 7075-T6 aluminium
1D.GT handlebar risers mount onto 22.2mm original handlebar clamps and allow for an offset of the handlebar by 19mm upwards and 9mm towards the rider, and also the conversion from 22.2mm handlebars to tapered handlebars with 28.6mm clamping. With the 1D.GT handlebar risers, Gilles Tooling GTO handlebars can also be used. With accessory spacers for 22.2mm, the original handlebar can still be used.
IMG_9531_326269

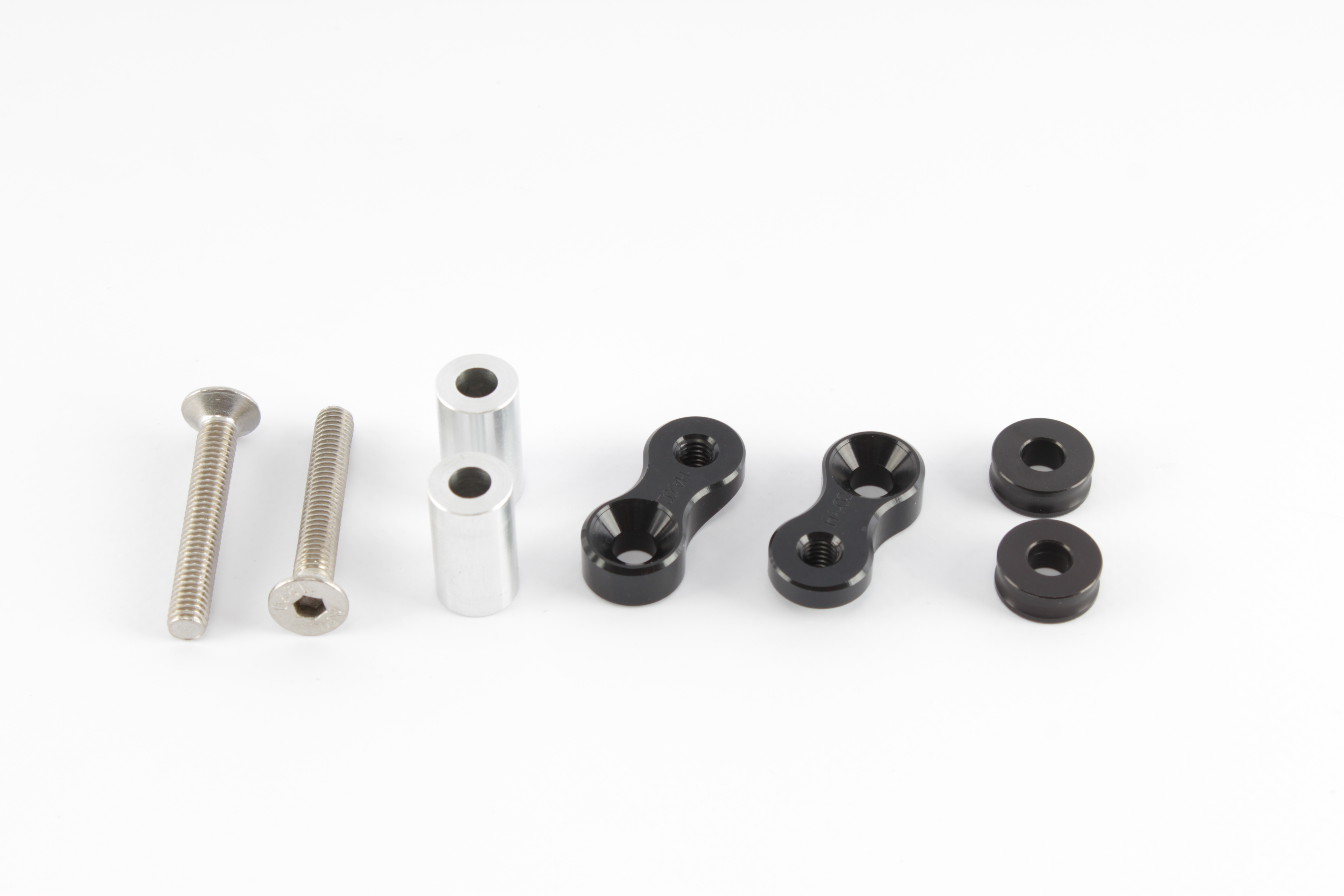

GILLES 1D.GT Mounting Kit handlebarerhöhung MT-07
zum Anbau der Tachoeinheit
GI-1DGT-ABK-01
€22.78
GI-2DGT-RED-01-KIT_49015
GILLES 2DGT Reduction Kit for handlebar clamp 28.4-
GI-2DGT-RED-01-KIT
€22.78
ManufacturerModelAdditional designationTypeModel yearVariant/VersionNoteHomologationccm
ApriliaDorsoduro SMV750SM2007 - 2016ABE750
ApriliaShiver SL750RA2009 - 2016ABE750
ApriliaShiver SL750GTRA2009 - 2016ABE750
ApriliaTuono 1000RP2002 - 2005ABE1000
ApriliaTuono 1000 RRR2006 - 2011ABE1000
BMWR1200RLCR12WR2015 - 2018ABE1200
BMWR1200RR1ST2006 - 2014ABE1200
DucatiHypermotard 1100B12007 - 2010ABE1100
DucatiHypermotard 1100SB12007 - 2010ABE1100
HondaCB1100SC652013 - 2016ABE1100
HondaCB1300SC542003 - 2017ABE1300
HondaCB1300SSC542003 - 2017ABE1300
HondaCB500FPC452013 - 2015ABE500
HondaCB500XPC462013 - 2015ABE500
HondaCB600F HornetPC341998 - 2002ABE600
HondaCB600F HornetPC362002 - 2006ABE600
HondaCB600F HornetPC412007 - 2013ABE600
HondaCB650FRC752014 - 2016ABE650
HondaCB900F HornetSC482001 - 2007ABE900
HondaCBF1000SC582006 - 2018ABE1000
HondaCBF600PC382004 - 2007ABE600
HondaCBF600PC432008 - 2013ABE600
HondaCBR650FRC742014 - 2015ABE650
HondaNC700D IntegraRC622012 - 2013ABE700
HondaNC700XRC632012 - 2013ABE700
HondaNC750SRC702014 - 2015ABE750
HondaNC750XRC90 EURO42016 - 2020ABE750
KawasakiER6fEX650A2005 - 2008ABE650
KawasakiER6fEX650C2009 - 2011ABE650
KawasakiER6fEX650E2012 - 2016ABE650
KawasakiER6nER650A2006 - 2008ABE650
KawasakiER6nER650C2009 - 2011ABE650
KawasakiER6nER650E2012 - 2016ABE650
KawasakiVersys 1000LZT00A2012 - 2016ABE1000
KawasakiVersys 650LE650A2006 - ABE650
KawasakiVersys 650LE650C2006 - ABE650
KawasakiZ1000ZRT00A2003 - 2004ABE1000
KawasakiZ1000ZRT00A2005 - 2006ABE1000
KawasakiZ1000ZRT00B2007 - 2009with and without ABSABE1000
KawasakiZ750ZR750J2004 - 2006Ausf.JABE750
KawasakiZ750ZR750L2007 - 2012with and without ABSABE750
KawasakiZ750RZR750N2011 - 2012ABE750
KawasakiZ750SZR750J2004 - 2006Ausf.KABE750
KawasakiZ800ZR800A2013 - 2016ABE800
KawasakiZephyr 1100ZRT10A1992 - 1995ABE1100
KawasakiZephyr 1100ZRT10A1996 - 2001ZR1100-B1ABE1100
KawasakiZRX1100ZRT10C1996 - 2000ABE1100
KawasakiZRX1200RZRT20A2000 - 2005ABE1200
SuzukiDL1000 V-StromDD2014 - 2016ABE1000
SuzukiDL1000 V-StromWDD0 EURO42017 - 2020ABE1000
SuzukiDL1000 V-StromXTWDD0 EURO42017 - 2020ABE1000
SuzukiDL1000 V-StromWVBS2002 - 2013ABE1000
SuzukiDL650 V-StromC72012 - 2016with and without ABSABE650
SuzukiDL650 V-StromWVB12004 - 2011with and without ABSABE650
SuzukiGSF1200 BanditGV75A1996 - 2000ABE1200
SuzukiGSF1200 BanditWVA92000 - 2005ABE1200
SuzukiGSF1200 Bandit SGV75A1997 - 2000ABE1200
SuzukiGSF1250 BanditWVCH2007 - 2016ABE1250
SuzukiGSF1250 Bandit SWVCH2007 - 2016ABE1250
SuzukiGSF600 BanditGN77A1994 - 1999ABE600
SuzukiGSF600 BanditWVA82000 - 2004ABE600
SuzukiGSF650 BanditWVB52005 - 2006ABE650
SuzukiGSF650 BanditWVCJ2007 - 2009ABE650
SuzukiGSF650 Bandit SWVB52005 - 2006ABE650
SuzukiGSF650 Bandit SWVCJ2007 - 2009ABE650
SuzukiGSR600WVB92006 - 2016ABE600
SuzukiGSR750C52011 - 2015ABE750
SuzukiGSX1250FWVCH2010 - 2016ABE1250
SuzukiGSX1300 B-KingWVCR2007 - 2012with and without ABSABE1340
SuzukiGSX1400WVBN2001 - 2008ABE1400
SuzukiGSX650FWVCJ2008 - 2012ABE650
SuzukiSV650AV1998 - 2003ABE650
SuzukiSV650SAV1998 - 2003ABE650
SuzukiSV650WVBY2003 - 2009ABE650
TriumphSpeed Triple 1050i515NJ2008 - 2010ABE1050
TriumphSpeed Triple 1050i515NJ2005 - 2007ABE1050
TriumphSpeed Triple 1050i515NV2011 - 2015ABE1050
TriumphSpeed Triple 885iT5091997 - 1998ABE885
TriumphTiger 1050115NG2007 - ABE1050
TriumphTiger 1050 Sport115NG2013 - 2020ABE1050
YamahaFZ1RN162006 - 2015ABE1000
YamahaFZ1 FazerRN162006 - 2015ABE1000
YamahaFZ6RJ072004 - 2006ABE600
YamahaFZ6RJ142007 - 2010with and without ABSABE600
YamahaFZ6 FazerRJ072004 - 2006ABE600
YamahaFZ6 FazerRJ142007 - 2010ABE600
YamahaFZ8RN252010 - 2015with and without ABSABE800
YamahaFZ8 FazerRN252010 - 2015with and without ABSABE800
YamahaFZS1000 FazerRN062000 - 2004ABE1000
YamahaFZS1000 FazerRN142005 - 2006ABE1000
YamahaFZS600 FazerRJ021997 - 2003ABE600
YamahaMT07RM042014 - 2016MT07: only in conjunction with item no. GI-1DGT-ABK-01 mounting kit for handlebar riser for speedometer unit installationABE700
YamahaMT07RM17 EURO42017 - 2020MT07: only in conjunction with item no. GI-1DGT-ABK-01 mounting kit for handlebar riser for speedometer unit installationABE700
YamahaMT07RM18 EURO42017 - 2020ABE700
YamahaXJ6RJ192009 - 2012with and without ABSABE600
YamahaXJ6 DiversionRJ192009 - 2012with and without ABSABE600
YamahaXJ6 Diversion FRJ192010 - 2012with and without ABSABE600
YamahaXJR12004PU1994 - 1998ABE1200
YamahaXJR1300RP021999 - 2006ABE1300
YamahaXJR1300RP192007 - 2016ABE1300
