GILLES 1D.GT handlebar risers, black, for BMW R1300GS /Adventure 2023-
€221.90 gross €233.59 RRP incl. VAT
Article number:
GI-1DGT-04-B
Product details
GILLES 1D.GT handlebar risers, colour: black anodised, with ABE, for BMWR1300GS Type GG13/GG13r, model year 2023-
R1300GS Adventure Type GG13/GG13r, model year 2023-
General description
The 1DGT-04 handlebar riser enables a more comfortable handlebar and seating position to be achieved.Thanks to its form-fit design, this handlebar riser achieves high stability.

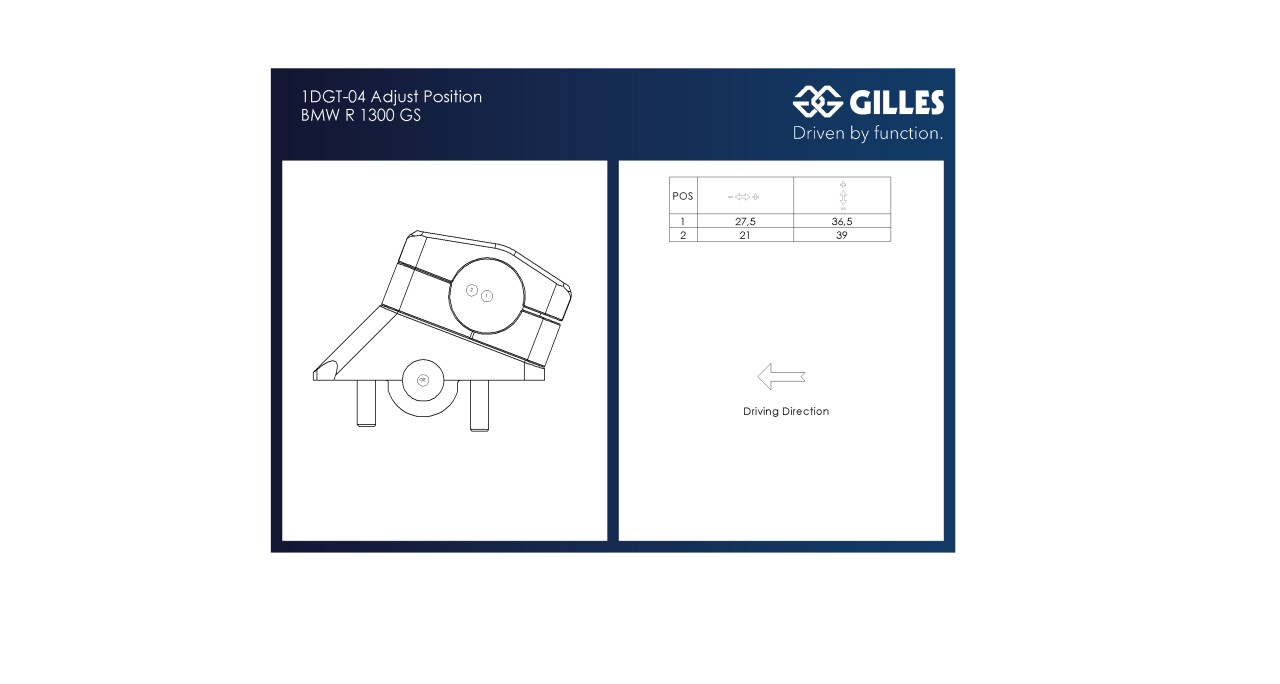

The special geometry allows for two different positions to be used:
In the first position, the handlebar is 20 mm higher and 25 mm closer to the rider,
while in the second position it is 20 mm higher and 25 mm further away from the rider (in relation to the OE position).
During installation, no other component components such as cables, lines, etc., need to be altered or extended.
Thanks to an ABE, this product can be used in public street traffic without registration.
handlebar offset compared to original: 19mm upwards, 9mm towards the rider
Bolt hole spacing: 32-40mm
For mounting tapered Ø28.6mm handlebars on motorcycles with Ø22.2mm clamping blocks
Installation possible in 2 directions (wide clamping area or narrow clamping area)
marking for reading handlebar alignment
Visual enhancement of the motorcycle
More comfortable seating position due to handlebar offset
CNC milled from high-quality 7075-T6 aluminium
1D.GT handlebar risers mount onto 22.2mm original handlebar clamps, allowing an offset of the handlebar by 19mm upwards and 9mm towards the rider, and also the conversion from 22.2mm handlebars to tapered handlebars with 28.6mm clamping. With the 1D.GT handlebar risers, Gilles Tooling GTO handlebars can also be used. With accessory spacers for 22.2mm, the original handlebar can still be used.
Bolt hole spacing: 32-40mm
For mounting tapered Ø28.6mm handlebars on motorcycles with Ø22.2mm clamping blocks
Installation possible in 2 directions (wide clamping area or narrow clamping area)
marking for reading handlebar alignment
Visual enhancement of the motorcycle
More comfortable seating position due to handlebar offset
CNC milled from high-quality 7075-T6 aluminium
1D.GT handlebar risers mount onto 22.2mm original handlebar clamps, allowing an offset of the handlebar by 19mm upwards and 9mm towards the rider, and also the conversion from 22.2mm handlebars to tapered handlebars with 28.6mm clamping. With the 1D.GT handlebar risers, Gilles Tooling GTO handlebars can also be used. With accessory spacers for 22.2mm, the original handlebar can still be used.
| Manufacturer | Model | Additional designation | Type | Model year | Homologation | ccm |
|---|---|---|---|---|---|---|
| BMW | R1300GS | GG13 EURO5+ | 2023 - | ABE | 1300 | |
| BMW | R1300GS | Adventure | GG13 EURO5+ | 2023 - | ABE | 1300 |
| BMW | R1300GS | Adventure | GG13r EURO5+ | 2023 - | ABE | 1300 |
| BMW | R1300GS | GG13r EURO5+ | 2023 - | ABE | 1300 |
