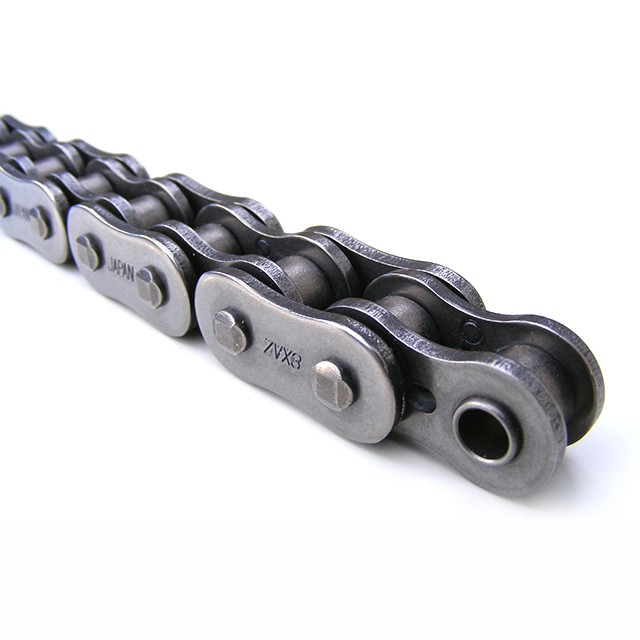

EK Chain ZVX-3 530 Ultimate Sport Bike chain - 122 Links
€182.83 gross €203.14 RRP incl. VAT
Article number:
23-082-00-122
Product Details
chain ENUMA NX-Ring-chain ZVX-3, ultra reinforced pitch 530, length 122 links, standard colour, including rivet link
General Description
chain ZVX-3 – the premium class of motorcycle chains
Improved sealing ring technology: The NX-Ring increases durability by a further 15% compared to the Quadra-X-Ring and reduces friction for smooth chain operation and optimal power transmission and development from the engine.
Featuring revolutionary Zero-Stretch technology: the drive chain barely stretches during the break-in procedure, unlike other chains. Initial re-tensioning is therefore almost unnecessary. This makes this chain perfectly suited for street and also for racing, as multiple turns can be ridden with a single adjustment.
With perforated inner plate: Not just weight saving! The lightening holes enormously increase the stability of the chain. Heat is dissipated more effectively, and dirt is removed faster and more efficiently from the chain links, which in turn leads to significantly reduced wear of rear sprocket and sprocket.
Especially recommended for high-performance motorcycles from 600cc.
Rivet link included. Screw link can be used (please order separately! No rivetting tool required for assembly).
Dimensions:
- Inner plate 2.4 mm / Outer plate 2.6 mm
- Pin diameter 5.38 mm
- Total width 24.7 mm
- Weight per 100 links 2.20 kg
- Tensile strength 4,900 kg
| Colour: | Standard |
|---|---|
| Pitch: | 530 |
| chain number of links: | 122 |
| Manufacturer | Model | Additional Designation | Type | Model Year | Note | ccm |
|---|---|---|---|---|---|---|
| Honda | CB1300 | Super Four | SC40 | 1998 - 2002 | 1300 | |
| Honda | CB-X4 1300 DC | SC38 | 1998 - | 1300 | ||
| Suzuki | GSX1100F | GV72C | 1989 - | Pitch #530 | 1100 | |
| Yamaha | FZ1 | RN16 | 2006 - 2015 | 1000 | ||
| Yamaha | FZ1 Fazer | RN16 | 2006 - 2015 | 1000 |
