CORDONA PQ8 250FI Combo Quickshifter, Stand-Alone Quickshifter for Harley-Davidson Road Glide, Street Glide, Softail

Product Details

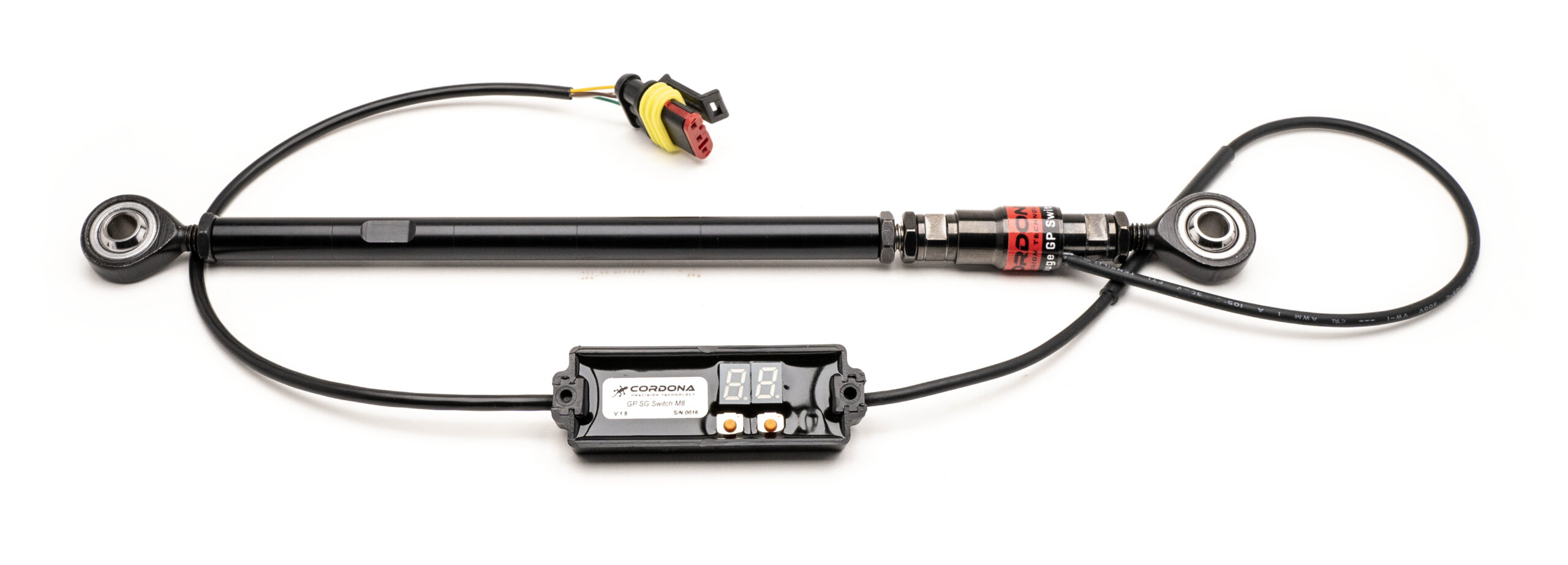

Cordona 250FI PQ8 Combo Quickshifter, stand-alone quickshifter kit consisting of module, sensor, wiring harness and shift rod (180 mm), Black with black and black eyes, Night Edition
for Harley-Davidson
Harley-Davidson Road Glide Special, M8 CV114, 2017-2023
Harley-Davidson Road Glide ST, M8 CV117, 2022-2023
Harley-Davidson Street Glide, CV114 from 2017
Harley-Davidson Softail with long shift rods

Colour note: black rod with black and black eyes.

General Description

Electronic full-throttle upshifting, seamless acceleration - whether for racing motorcycles, streetn motorcycles, drag bikes, go-karts, cross-karts - basically anything with a sequential transmission. The PQ8 does not trigger an error message in engines with fuel injection. The PQ8 has been developed with the latest technology and is continuously optimised through its use in worldwide racing series.

Features:
- Stand-alone system: no additional accessories are required.
- Easy reversion possible.

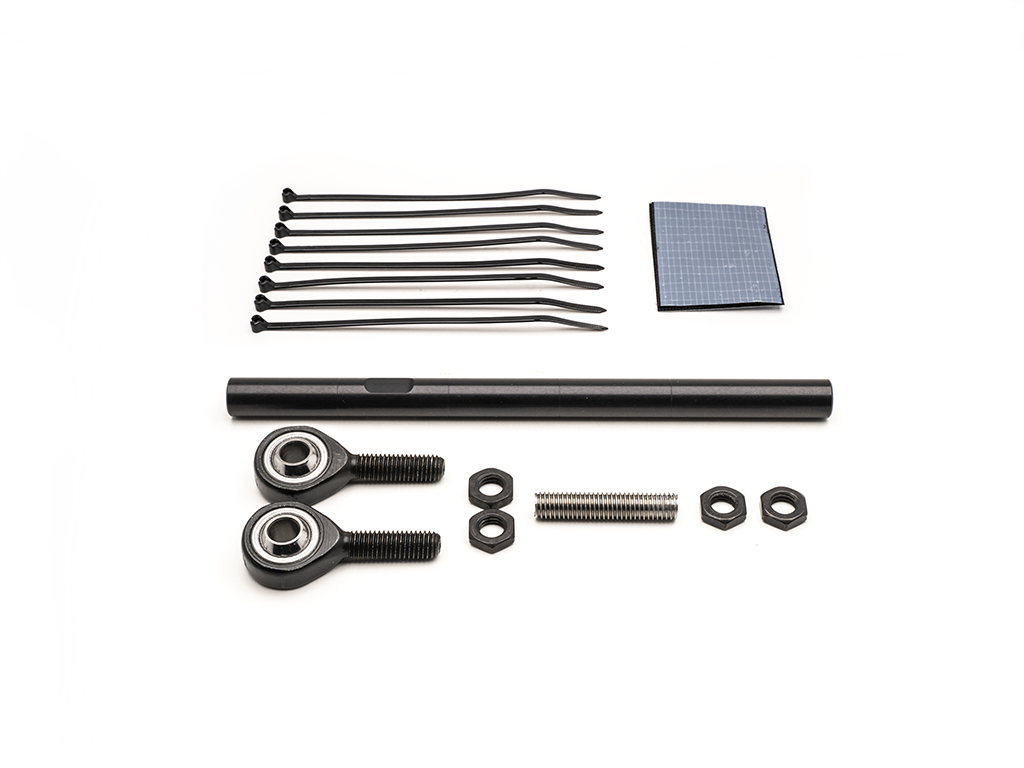

- Supplied with a universal shift rod (6 mm internal thread). This may need to be shortened to the correct length depending on the footrest system used. Further shift rods of different lengths are available, see accessories.
- Built on the most advanced GP technology and fully computer-controlled via a 20 MHz CPU. Programming via a 2 tip switch system.
- Compu Shift calculates the perfect interruption time for each individual upshift. With a selection of 500 interruption times, various engine ratios, acceleration, load, and engine speed are taken into account depending on the riding condition. The interruption time is adjustable between 40-80 milliseconds.
- During the shifting process, it simulates stable engine operation for the ECU, thereby allowing for a smooth and stable upshift. No error messages are generated, and it does not lead to unwanted leaning out or engreaserichment of the mixture formation.
- Integrated “Smooth Shift” to reduce peak loads on transmission and chain. Furthermore, power loss during upshifts is minimised, similar to MotoGP quickshifters. During the shifting process, all cylinders are simultaneously shut off; power is restored via a computer-controlled sequence in conjunction with Compu Shift.
- Solid, waterproof housing and high-quality wiring harness. The circuit board is fully potted and equipped with a 26-pin aviation standard connector.
- Very high-quality sensor based on strain gauge technology.
- Sensor works on push and pull, therefore can also be used for reverse shifting.
- All functions can be easily and problem-free programmed directly at the racetrack or on tour, without an additional device, using two buttons and the LED display.
- Supplied with ready-to-use connectors for Denso and Mitsubishi ignition coils, which are used in most Japanese sports motorcycles, as well as Triumph and KTM vehicles [For KTM Superduke R 2008, Beru ignition coils are installed, please use the wiring harness for Ducati 749 here]. For Ducati 748-998, 749-1198, Aprilia RSV 4, MV Agusta 2 and 4 ignition coils, correspondinge wiring harnesses are available through the Cordona distribution network. For other ignition coil systems, installation is not “plug and play”, but remains straightforward.
- For vehicles with coil-on-plug ignition coils, the +12V power supply comes from the ignition coil via the red cable, which leads directly to the CPU of the PQ8 quickshifter. Simple installation, as additional cable installation for 12V power supply is eliminated.
- Automatic on/off switching controlled via speed. Fully adjustable to prevent unintentional engine shutdown by shifting into neutral during idle speed.
- Audible signal generator for acoustic feedback during functional tests and commissioning. Very useful when installed behind fairings.
- Auto Shift, for “drag racing” only, can be selected to automatically activate the quickshifter at a specific and adjustable speed. The rider only needs to keep the shift lever preloaded between shifts. Useful in “handicap” races where the rider must stay below the “break out” time. Additionally, the shift speed can be lowered to intentionally be slower in subsequent races.
- Power saving: if no input is made via the PQ8 display for 60 seconds, the electronics enter power-saving mode. A blinking dot then indicates that the system is ready. Very useful if a battery pack is used to power the quickshifter. The majority of the power consumption from the PQ8 display is eliminated.
- Made in Sweden.
