CORDONA PQ8 239ND Combo Quickshifter, Stand-Alone Quickshifter for CFMOTO 450MT, 450NK, 450SR

Product details

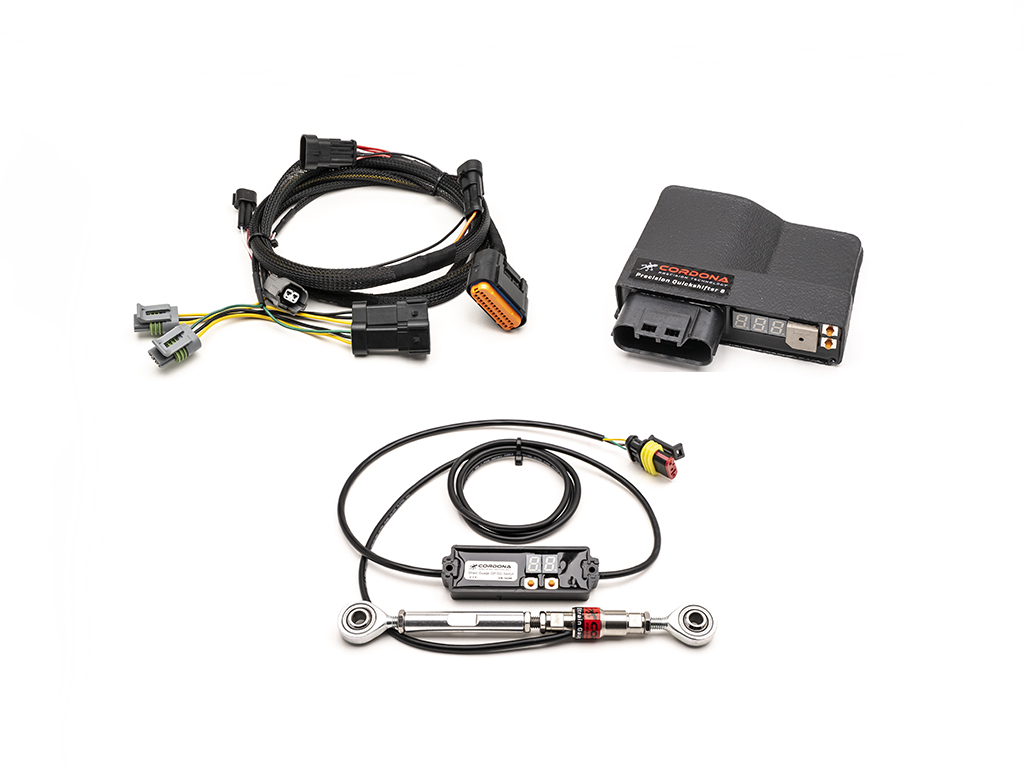

Cordona 239ND PQ8 Combo Quickshifter, stand-alone quickshifter kit consisting of module, sensor, wiring harness and shift rod, for CFMOTO

450MT, model year

450SR, model year

450NK, model year

General description

Electronic full-throttle upshifts, seamless acceleration - whether for race bikes, street bikes, drag bikes, go-karts, cross-karts - essentially anything with a sequential transmission. The PQ8 does not trigger an error message in engines with fuel injection. The PQ8 has been developed with the latest technology and is continuously optimised through its use in worldwide racing series.



Features:

- Stand-alone system: no additional accessories are required.

- Easy to reverse.

- Supplied with a universal shift rod (6 mm internal thread). This may need to be shortened to the correct length depending on the footrest linkage used. Further shift rods in different lengths are available; see accessories.

- Built on advanced GP technology and fully computer-controlled via a 20 MHz CPU. Programming via 2 tip switch system.

- Compu Shift, calculates the perfect interruption time for each individual upshift. From a selection of 500 interruption times, various engine ratios, acceleration, load, and engine speed are taken into account depending on the riding conditions. The interruption time is adjustable between 40-80 milliseconds.

- Simulates stable engine operation to the ECU during the shifting process, thus allowing for a smooth and stable upshift. This does not generate any error messages and does not lead to unwanted leaning or enrichment of the mixture formation.

- Integrated “Smooth Shift” to reduce load peaks on the transmission and chain. Furthermore, during upshifts, the loss of traction, as with MotoGP quickshifters, is minimised. During the upshift process, all cylinders are simultaneously shut off, and traction is restored through a computer-controlled sequence in conjunction with Compu Shift.

- Solid, waterproof housing and high-quality wiring harness. The circuit board is fully potted and equipped with a 26-pin aviation standard connector.

- Very high-quality sensor based on strain gauge technology.

- Sensor works on push and pull, so it can also be used for reverse shifting.

- All functions can be easily and problem-free programmed directly at the racetrack or on tour, without an additional device, using two buttons and the LED display.

- Supplied with ready-to-use connectors for Denso and Mitsubishi ignition coils, which are used in most Japanese sport motorcycles, as well as Triumph and KTM vehicles [For KTM Superduke R 2008, Beru ignition coils are installed; please use the wiring harness for Ducati 749 here]. For Ducati 748-998, 749-1198, Aprilia RSV 4, MV Agusta 2 and 4 ignition coils, corresponding wiring harnesses are available through the Cordona distribution network. For other ignition coil systems, installation is not “plug and play” but remains uncomplicated.

- In vehicles with coil-on-plug ignition coils, the +12V power supply comes from the ignition coil via the red cable, which leads directly to the CPU of the PQ8 quickshifter. Simple installation, as additional cable installation for 12V power supply is eliminated.

- Automatic on/off switching controlled via speed. Fully adjustable to prevent unwanted engine shutdown by shifting into neutral during idle speed.

- Auditory signal generator for acoustic feedback during function test and commissioning. Very useful when installed behind fairings.

- Auto Shift, for “drag racing” only, can be selected to automatically activate the quickshifter at a specific and adjustable speed. The rider only needs to keep the shift lever preloaded between shifts. Useful in “handicap” races where the rider must stay below the “break out” time. The shift rpm can also be lowered to be deliberately slower in subsequent races.

- Power saving: if no input is made via the PQ8 display for 60 seconds, the electronics enter power-saving mode. A blinking dot then indicates that the system is ready. Very useful if a battery pack is used to power the quickshifter. The majority of power consumption for the PQ8 display is eliminated.

- Made in Sweden.
