Cordona 425SPEC GP ASG Superbike Quickshifter with Blipper Function for Honda CBR1000RR SP1/SP2

€483.14 gross €406.00 net

Prices incl. VAT plus shipping costs

Product number: COR-425SPEC_160

ask for delivery time

Product Details

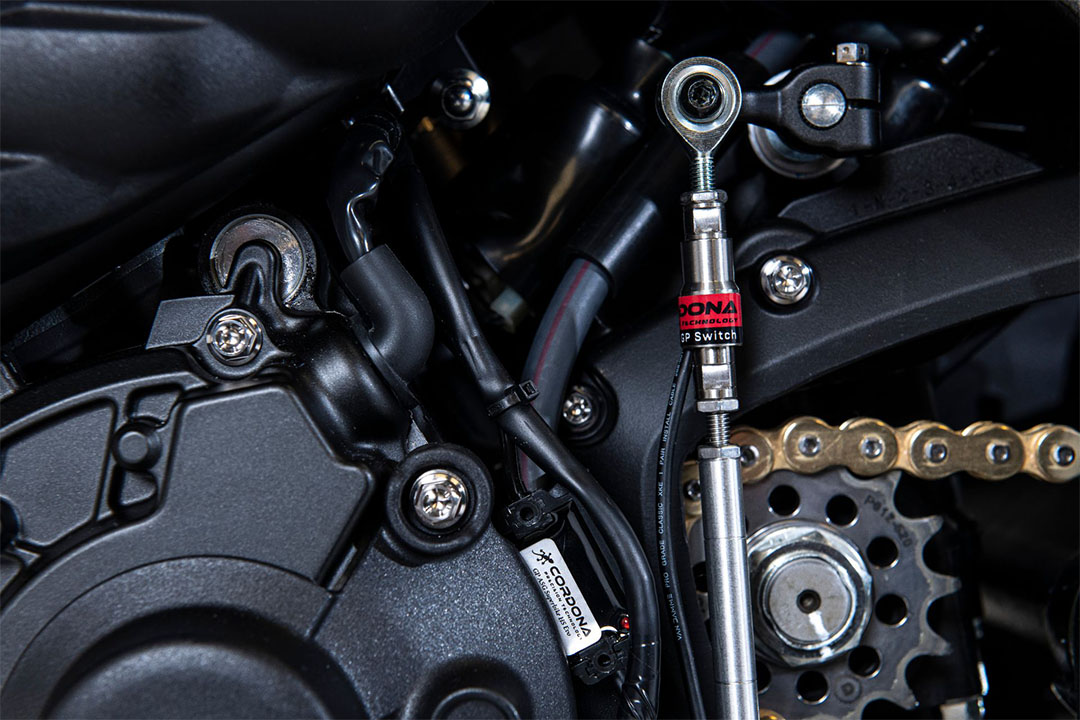

Cordona 425STD GP ASG Superbike Quickshifter with blipper function; ready-to-install delivery consisting of module, sensor, and shift rod (160 mm), for Honda CBR1000RR SP1/SP2, model year 2017-2019

General Description

The CORDONA GP ASG Quickshifter with blipper function significantly improves shifting performance and reliability compared to OEM and other competitions. It offers superior crisp and smooth shifting performance, similar to top GP and WSBK systems. It has an analogue strain gauge for ECUs with upshift function and auto blipper for downshift function. Used by advanced ECUs such as Magneti-Marelli, Motec, Mectronik, MotoGP ECUs, as well as many OEM and flashed ECUs for street motorcycles with analogue 0-5V input.

Compared to OEM and other quickshift systems, the Cordona ASG Superbike is faster, more precise, and smoother. The motorcycle requires less traction control and does not unsettle the chassis as much during shifting, especially when leaned over.

Specification:
- 0-5v analogue, high-sensitivity strain gauge GP ASG Superbike sensor
- Load cell technology and no moving parts in the sensor
- 5-15v DC power supply
- Analogue output to the motorcycle ECU, 2.5 V (idle), range 0.5 to 4.5 V
- 20MHz processor with adaptive calibration for temperature and vibration
- Configurable push or pull direction
- Can be used for ECUs equipped with upshift functionality only
- Fully sealed and weather-protected sensor and module
- High-precision CNC-machined housing made of stainless steel
- Dimensions: 45 mm long, 14 mm diameter
- M6 "magic thread", left-hand and RH thread in both sensor ends
