Cordona 423SPEC GP ASG Superbike Quickshifter with Blipper Function for MV Agusta Models
€497.42 gross
Article number:
COR-423SPEC
Product details

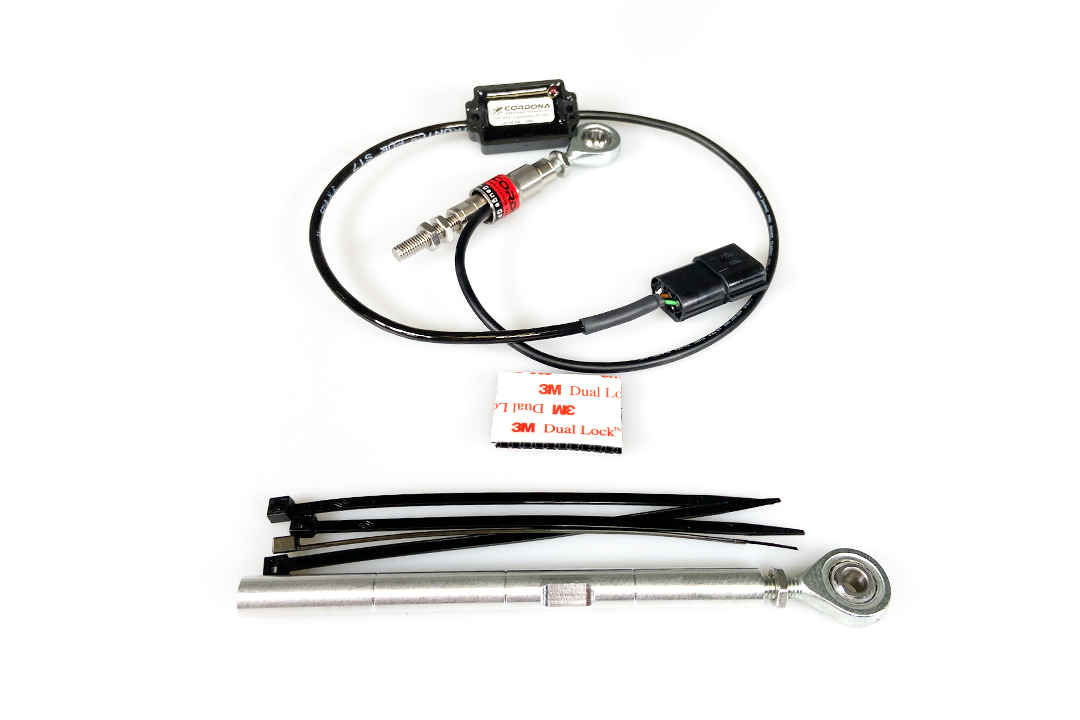

Cordona 423SPEC GP ASG Superbike Quickshifter with blipper function; ready-to-install delivery consisting of module, sensor, fully assembled with shift rod and ball head joints, 4x cable ties, 3cm 3M Velcro strap, for MV Agusta models, see compatibility listGeneral description
The CORDONA GP ASG Quickshifter with blipper function significantly improves shifting performance and reliability compared to OEM and other competitions. It offers a superbly clear and smooth shifting performance, similar to top GP and WSBK systems. It features an analogue strain gauge for ECUs with upshift function and auto blipper for downshift function. Used by advanced ECUs such as Magneti-Marelli, Motec, Mectronik, MotoGP ECUs, as well as many OEM and flashed ECUs for street bikes with analogue 0-5V input.Compared to OEM and other quickshift systems, the Cordona ASG Superbike is faster, more precise, and smoother. The motorcycle requires less traction control and does not unsettle the chassis as much during gear changes, especially when cornering.
Specification:
- 0-5V analogue, high-sensitivity strain gauge GP ASG Superbike sensor
- Load cell technology and no moving parts in the sensor
- 5-15V DC power supply
- Analogue output to the motorcycle ECU, 2.5V (at idle), range 0.5 to 4.5V
- 20MHz processor with adaptive calibration for temperature and vibration
- Configurable push or pull direction
- Can be used for ECUs equipped only with upshift functionality
- Fully sealed and weather-protected sensor and module
- High-precision CNC-machined stainless steel housing
- Dimensions: 45 mm long, 14 mm diameter
- M6 'magic thread', left-hand and RH thread threads in both sensor ends
Scope of Delivery
Plug and Play version fully assembled with shift rod and ball head joints, 4x cable ties, 3cm 3M Velcro strap.
| Manufacturer | Model | Additional designation | Type | Model year | ccm |
|---|---|---|---|---|---|
| MV Agusta | Brutale 800 | B3 | 2016 - | 800 | |
| MV Agusta | Brutale 800 Dragster | RR | B1 EURO4 | 2015 - | 800 |
| MV Agusta | Brutale 800 RR | B3 | 2015 - 2016 | 800 | |
| MV Agusta | F3 675 | F1 EURO4 | 2017 - 2020 | 675 | |
| MV Agusta | F3 675 | F3 | 2012 - 2016 | 675 | |
| MV Agusta | F4 1000 RC | F5 | 2015 - | 1000 | |
| MV Agusta | Rivale 800 | S3 | 2016 - | 800 | |
| MV Agusta | Stradale 800 | S3 | 2015 - | 800 | |
| MV Agusta | Turismo Veloce 800 | T3 | 2015 - | 800 |
