Cordona 420Evo-110 GP ASG Superbike Quickshifter with Blipper Function for Ducati Streetfighter V2 from 2022-

€445.06 gross €374.00 net

Article number: COR-420Evo-110

Immediately available

Product details

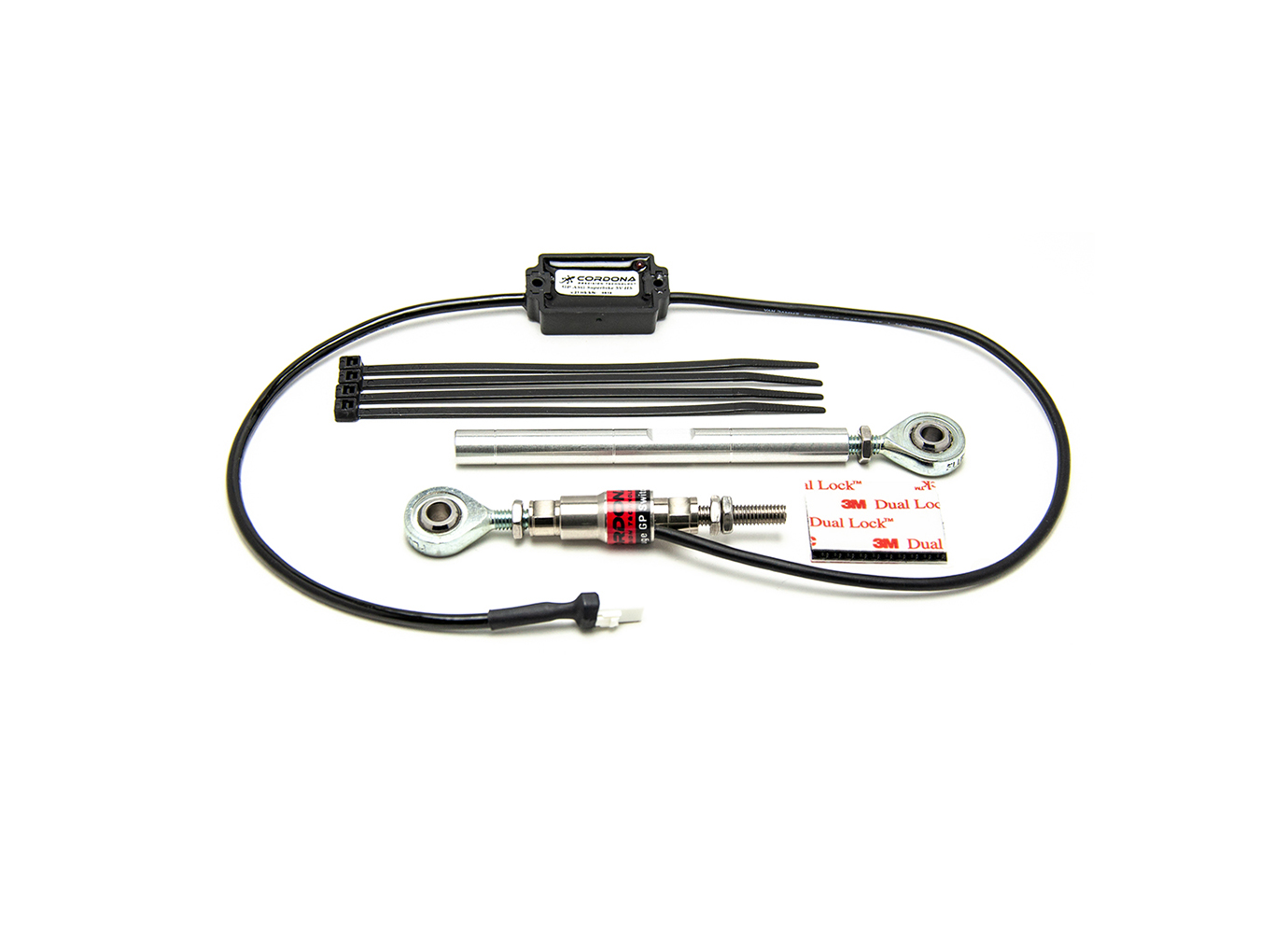

Cordona 420Evo-110 GP ASG Superbike Quickshifter with blipper function; supplied with module, sensor, and shift rod (110 mm), for
Ducati Streetfighter V2, from model year 2022-

General description

The CORDONA GP ASG Quickshifter with blipper function significantly improves shifting performance and reliability compared to OEM and other competitions. It offers superior clear and smooth shifting performance, similar to top GP and WSBK systems. It features an analogue load cell for ECUs with upshift function and auto blipper for downshift function. Used by advanced ECUs such as Magneti-Marelli, Motec, Mectronik, MotoGP ECUs, as well as many OEM and flashed ECUs for street motorcycles with analogue 0-5V input.

Compared to OEM and other quickshift systems, the Cordona ASG Superbike is faster, more precise, and smoother. The motorcycle requires less traction control and doesn't upset the chassis as much during shifting, especially when leaned over.

Specification:
- 0-5v analogue, high-sensitivity strain gauge GP ASG Superbike sensor
- Load cell technology and no moving parts in the sensor
- 5-15v DC power supply
- Analogue output to the motorcycle ECU, 2.5 V (in idle), range 0.5 to 4.5 V
- 20MHz processor with adaptive calibration for temperature and vibration
- Configurable push or pull direction
- Can be used for ECUs that are only equipped with upshift functionality
- Fully sealed and weather-protected sensor and module
- High-precision CNC-machined housing from stainless steel
- Dimensions: 45 mm long, 14 mm diameter
- M6 "magic thread", left and RH thread in both sensor ends
