Cordona 420 GP ASG Superbike Quickshifter with Blipper Function for various Ducati Models
€445.06 gross
Article number:
COR-420Evo_132
Product Details
Cordona 420 GP ASG Superbike Quickshifter with blipper function; ready-to-install delivery consisting of module, sensor, and shift rod (132 mm), for Ducati:1199 Panigale R, model year 2015-
1299 Panigale, model year 2015-
1299 Panigale S, model year 2015-
Monster 1200 S, model year 2017-
Multistrada 950, model year 2019-
General Description

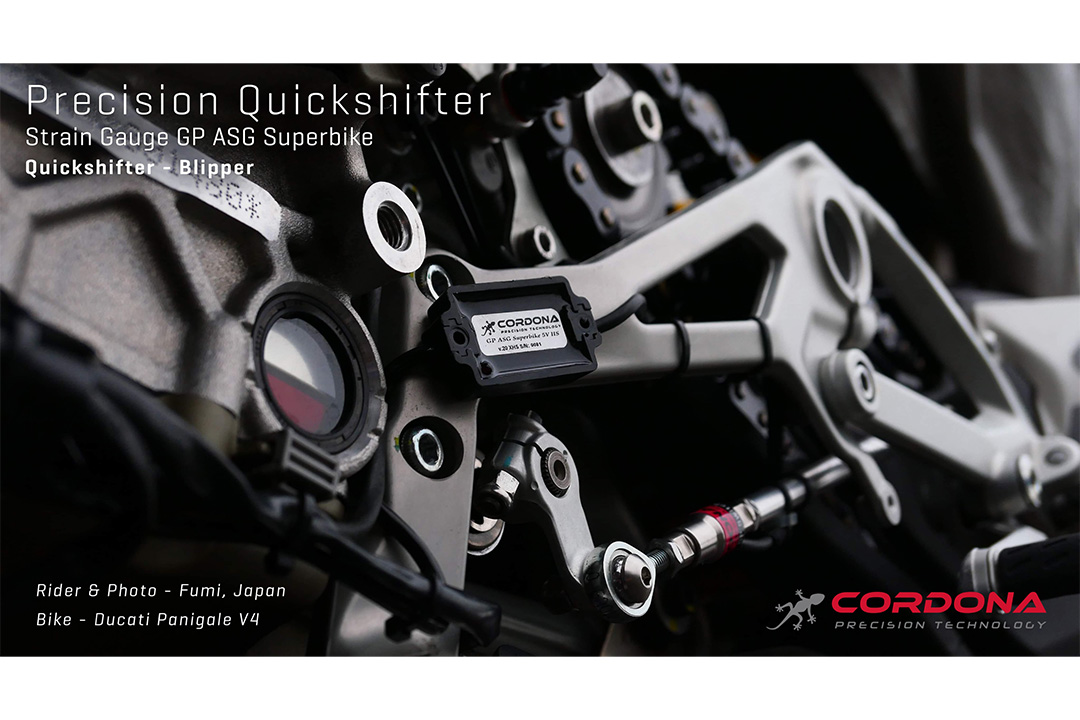

The CORDONA GP ASG Quickshifter with blipper function significantly improves shift performance and reliability compared to OEM and other competitions. It offers a superbly clear and smooth shifting performance, similar to top GP and WSBK systems. It features an analogue load cell for ECUs with upshift function and auto blipper for downshift function. Used by advanced ECUs such as Magneti-Marelli, Motec, Mectronik, MotoGP ECUs, as well as many OEM and flashed ECUs for street with an analogue 0-5V input.Compared to OEM and other quickshift systems, the Cordona ASG Superbike is faster, more precise, and smoother. The motorcycle requires less traction control and does not significantly upset the chassis during shifting, especially when leaned over.
Specification:
- 0-5v analogue, highly sensitive strain gauge GP ASG Superbike sensor
- Load cell technology and no moving parts in the sensor
- 5-15v DC power supply
- Analogue output to the motorcycle ECU, 2.5 V (in idle), range 0.5 to 4.5 V
- 20MHz processor with adaptive calibration for temperature and vibration
- Configurable push or pull direction
- Can be used for ECUs equipped only with upshift functionality
- Fully sealed and weather-protected sensor and module
- High-precision CNC-machined stainless steel housing
- Dimensions: 45 mm long, 14 mm diameter
- M6 "magic thread", left-hand and RH thread in both sensor ends
For plug & play kits with universal bolts and specific shift rods, see item COR-420Special
Scope of Delivery
Module, sensor, and 132 mm length shift rod
| Manufacturer | Model | Type | Model Year | ccm |
|---|---|---|---|---|
| Ducati | Monster 1200S | MB EURO4 | 2017 - | 1200 |
| Ducati | Multistrada 950 | AD EURO4 | 2019 - | 950 |
| Ducati | Panigale 1199 R | H8 | 2015 - | 1199 |
| Ducati | Panigale 1299 | H9 | 2015 - | 1299 |
| Ducati | Panigale 1299 S | H9 | 2015 - | 1299 |
