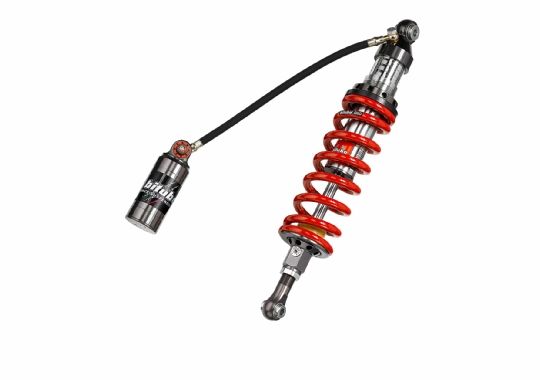

BITUBO shock absorber Mono Red for BMW R1200GS 13-18 and R1250GS 2019-

Sample image - item may vary

€1,477.56 gross €1,241.65 net €1,555.33 RRP incl. VAT

Article number: BI-BW053-CYU11

In ca. 15 working days

Product details

BITUBO mono shock absorber rear, with externa balance tank, adjustable rebound damping, compression damping damping adjustable in high and low speed, length adjustable by 8mm, spring preload continuously adjustable, spring colour red.
For BMW
R1200GS, type R12W, model year 2013-16
R1200GS, type 1G12, model year 2017-18
R1250GS, type 1G13, model year 2019-

General description

The off-road shock absorber CYU is gas-pressurised, with a separating piston for oil / nitrogen in the fixed balance tank. It features a Ø16 mm piston rod – specifically coated for the lowest friction coefficient – with a low-friction bushing. The lower and upper mountings, made from an aluminium alloy also used in aviation, are precisely CNC machined.
The balance tank is separate from the housing to allow for better positioning on the vehicle and to optimise the cooling of the hydraulic oil. They are connected by a flexible, steel-braided hose. The setting of the spring preload is hydraulic and can be done manually as well as with a 14 mm HH screw. The shock absorber improves feedback from the bike and increases grip and comfort.

Features:
- compression damping Low-Speed: 24 clicks
- compression damping High-Speed: 20 clicks
- Rebound: 24 clicks
- Hydr. spring preload: 12 mm = 24 clicks (CLU32 only)
- Adjustable length: 8 mm
- CYU11 = mechanical spring preload
