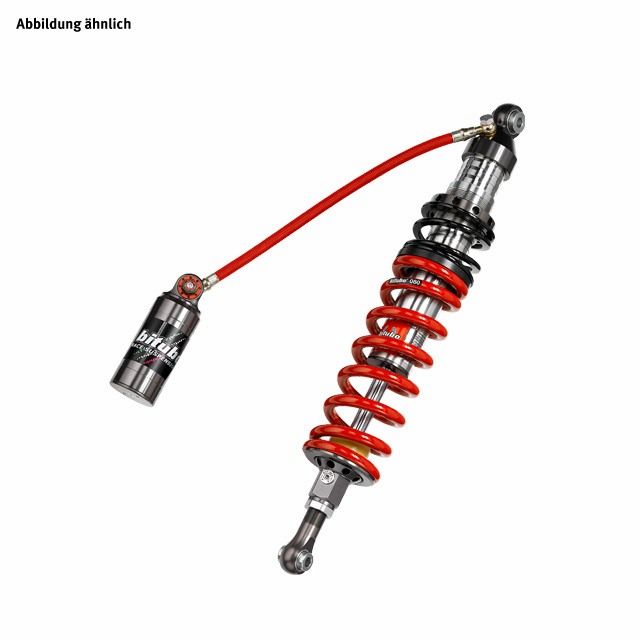

BITUBO shock absorber Mono Red for BMW R1200GS 04-

€1,478.13 gross €1,242.13 net €1,555.93 RRP incl. VAT

Article number: BI-BW032-CYU31

In ca. 15 working days

Product details

BITUBO mono shock absorber rear, with externa balance tank, rebound damping adjustable, compression damping damping adjustable in high and low speed, length adjustable by 8mm, spring preload 12mm hydraulic adjustable, spring colour red.
For BMW R1200GS, Type R12, model year 2004-12
Only suitable for models without ABS!

General description

The Off-Road shock absorber CYU is gas-pressurised, with a separating piston for oil/nitrogen in the fixed balance tank. It features a Ø16 mm piston rod – specially coated for the lowest friction coefficient – with low-friction bushing. The lower and upper mountings, made from an aerospace-grade aluminium alloy, are precisely CNC machined.
The balance tank is separated from the housing to allow for better positioning on the vehicle and to optimise hydraulic oil cooling. They are connected by a flexible, steel-braided hose. The setting of the spring preload is hydraulic and can be adjusted both manually and by a 14 mm HH screw. The shock absorber improves feedback from the bike and increases grip and comfort.

Features:
- compression damping Low-Speed: 24 clicks
- compression damping High-Speed: 20 clicks
- Rebound: 24 clicks
- Hydr. spring preload: 12 mm = 24 clicks (CLU32 only)
- Adjustable length: 8 mm
- CYU11 = mechanical spring preload

Only suitable for models without ABS!
