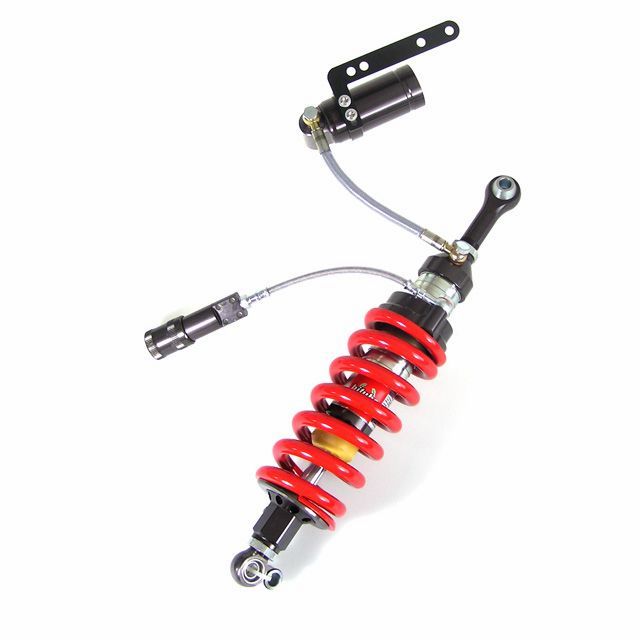

BITUBO shock absorber Mono red for BMW F800GS Type 13-

€1,171.77 gross €984.68 net €1,233.44 RRP incl. VAT

Article number: BI-BW048-CYU11

In ca. 15 working days

Product details

BITUBO mono-shock rear, with externa balance tank, adjustable rebound damping, compression damping damping adjustable in high and low speed, 8mm length adjustable, spring preload continuously adjustable, spring colour red.
For BMW F800GS, Type E8GS, model year 2013-16

General description

The off-road shock absorber CYU is gas-pressurised, with a separating piston for oil / nitrogen in the integrated balance tank. It features a Ø16 mm piston rod - specially coated for the lowest friction coefficient - with a low-friction bushing. The lower and upper mountings, made from an aluminium alloy also used in aviation, are precisely CNC machined.
D
er balance tank is separated from the housing to allow for better positioning on the vehicle and to optimise the cooling of the hydraulic oil. They are connected by a flexible, steel-braided hose. The setting of the spring preload is hydraulic and can be adjusted manually or via a 14 mm HH screw. The shock absorber improves feedback from the bike and increases grip and comfort.

Features:
- compression damping Low-Speed: 24 clicks
- compression damping High-Speed: 20 clicks
- Rebound: 24 clicks
- Hydr. spring preload: 12 mm = 24 clicks (CLU32 only)
- Adjustable length: 8 mm
- CYU11 = mechanical spring preload
