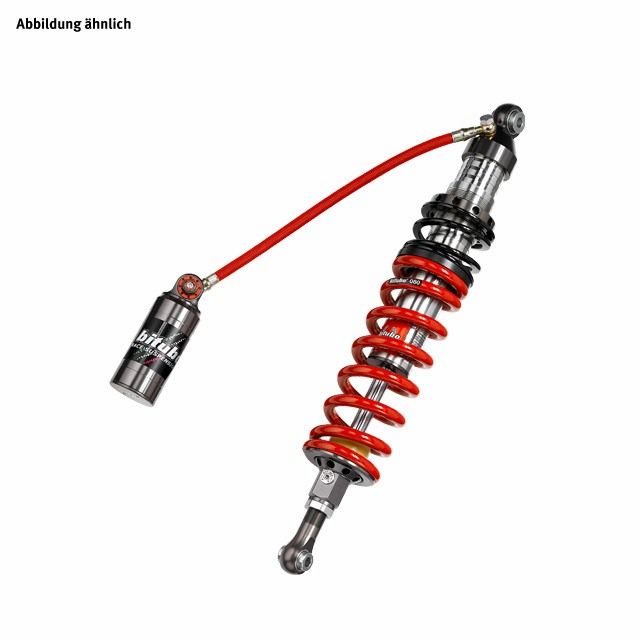

BITUBO shock absorber Mono Red for BMW F800GS 13-

€1,478.13 gross €1,242.13 net €1,555.93 RRP incl. VAT

Article number: BI-BW048-CYU31V2

In ca. 15 working days

Product details

BITUBO mono shock absorber rear, with externa balance tank, adjustable rebound damping, compression dampingn damping adjustable in high and low speed, length adjustable 8mm, spring preload 12mm hydraulic adjustable, spring colour red.
For BMW F800GS, type E8GS, model year 2013-16

General description

The off-road shock absorber CYU is gas-assisted, with a separation piston for oil / nitrogen in the fixed-mounted balance tank. It features a Ø16 mm piston rod - specially coated for the lowest friction coefficient - with a low-friction bushing. The lower and upper mountings, made from an aluminium alloy also used in aerospace, are precision CNC machined.
D
er balance tank is separate from the housing to allow for better positioning on the vehicle and to optimise the cooling of the hydraulic oil. They are connected by a flexible, braided steel hose. The setting of the spring preload is hydraulic and can be adjusted both manually and with a 14 mm HH screw. The shock absorber improves feedback from the bike and increases grip and comfort.

Features:
- compression damping Low-Speed: 24 clicks
- compression damping High-Speed: 20 clicks
- Rebound: 24 clicks
- Hydr. spring preload: 12 mm = 24 clicks (CLU32 only)
- Adjustable length: 8 mm
- CYU11 = mechanical spring preload
