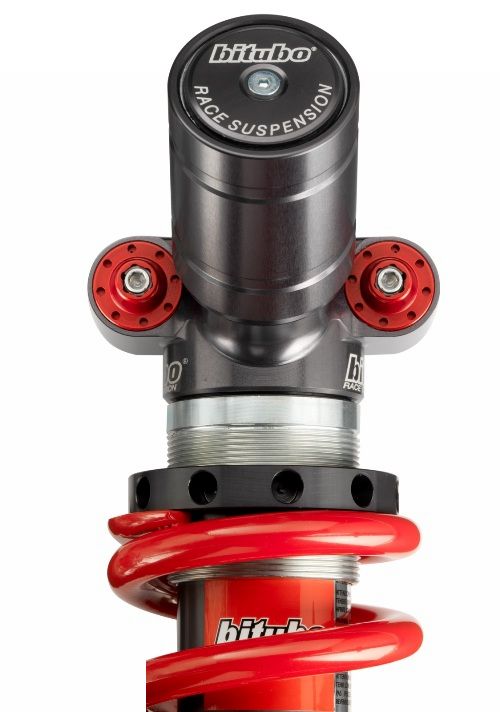

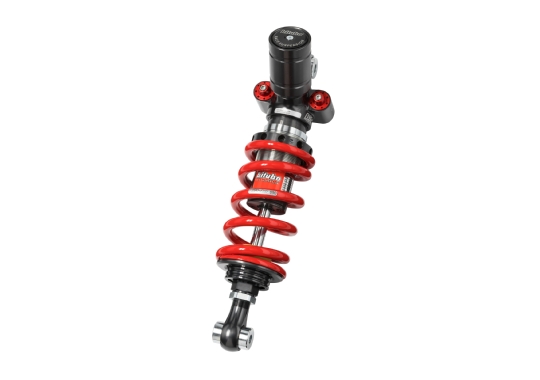

BITUBO shock absorber for Yamaha YZF-R3 A RH07 2015-2016 and RH12 2017-2018

Product details

BITUBO mono shock absorber rear, rebound damping adjustable (24 clicks), high-speed rebound adjustable (24 clicks), compression damping damping adjustable (24 clicks), length adjustable (8mm), spring preload steplessly adjustable, spring colour in red, with ABE, For Yamaha
YZF-R3, Type RH07, Model Year 2015-17
YZF-R3, Type RH12, Model Year 2017-

General description

XXT Mono shock absorbere – the direct evolution from racing. Thanks to its versatile adjustment options, the Bitubo XXT shock absorber is easy to adjust even when installed.

The development of this damper culminates in a general weight reduction through the use of an aluminium housing – an important point to adapt the handling to the rider's requirements. Furthermore, a new setup has been developed to focus the XXT even more on racing performance. An upgrade for optimised performance and simplification of length and hydraulic spring preload adjustment has also been installed.

The aim is to offer the rider precise control and maximum grip, even at extreme lean angles or during rapid changes of direction, as well as even tire wear. It offers maximum confidence when accelerating on all street surfaces and perfect stability of the rear wheel, even under the hardest braking.

Innovation also prevails inside the damper. With technically new solutions, the damping coefficient and stability at high temperature are improved.
By using a 14 mm diameter piston rod, the sliding behaviour is improved, while the Ø30mm separating piston reduces uncontrolled movements of the hydraulic oil. These improvements lead to a reduction in inertial forces and thus enable immediate control of oscillating spring movements.


Features:
- compression damping: 24 clicks
- Rebound: 24 clicks
- High-speed rebound damping: 20 clicks
- XXT11 Manual spring preload: stepless
- Adjustable length: 8 mm
- Very lightweight
