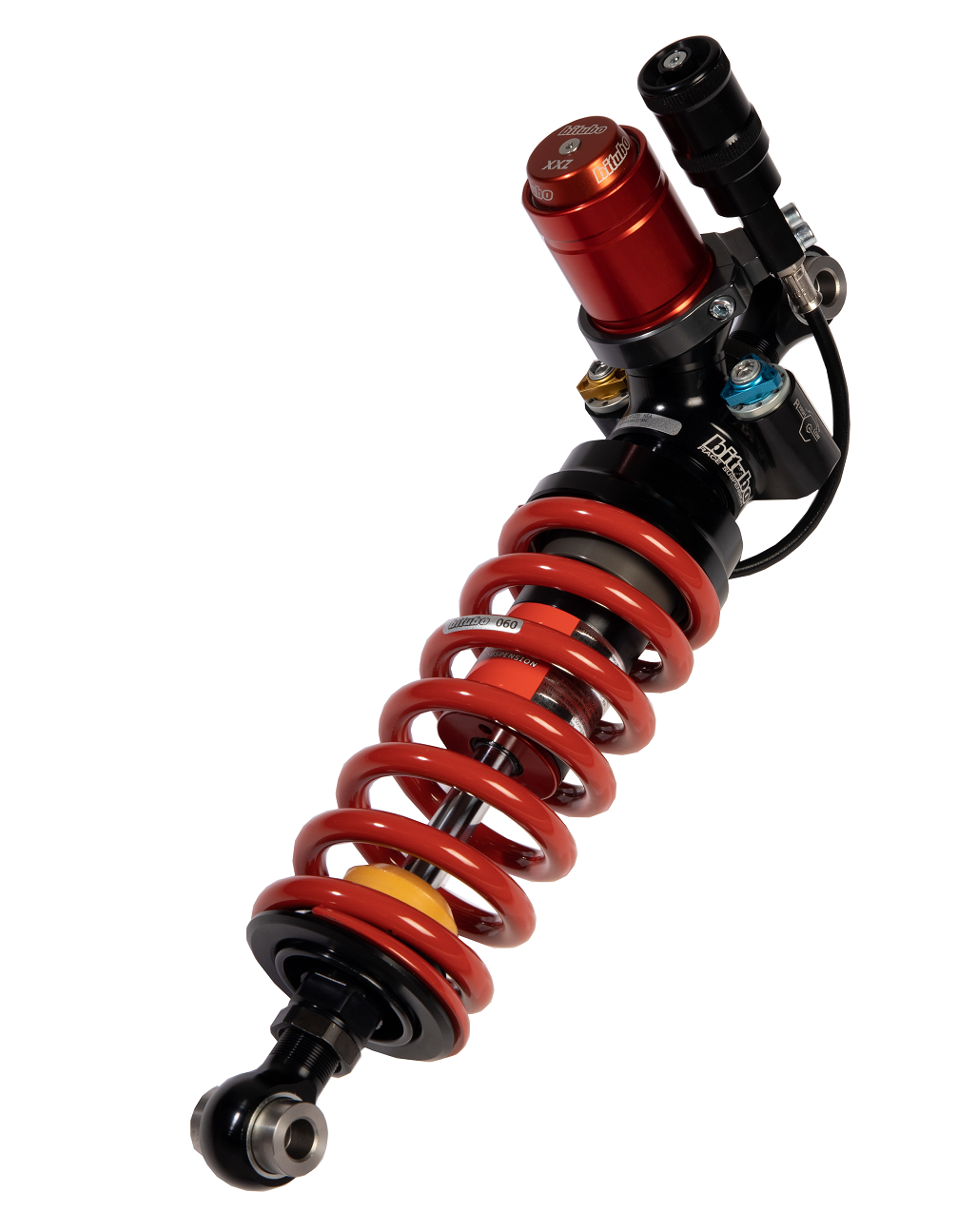

BITUBO shock absorber for Yamaha YZF-R1 / R1M 2015-19 and MT-10 2016-20

Product Details

BITUBO mono-shock rear, rebound damping adjustable (24 clicks), high-speed rebound adjustable (20 clicks), compression damping damping high-speed (20 clicks) and low-speed (24 clicks) adjustable, length adjustable (8mm), spring preload hydraulic 12mm adjustable (=24 clicks), spring colour in Red, with ABE;

For Yamaha

YZF-R1 / R1M, Type: RN32 (model year 2015-16 with ABE)

YZF-R1 / R1M, Type: RN49 (model year 2017 with ABE)

YZF-R1 / R1M, Type: RN49 (model year 2018-19 without ABE)

MT-10, Type: RN45 (model year 2016-20 with ABE)

General Description

XXZ mono shock absorbers – the direct evolution from racing. Thanks to its versatile adjustment options, the Bitubo XXZ shock absorber can be easily adapted even when installed.



The development of this damper culminates in a general weight reduction through the use of an aluminium casing – an important point to fine-tune the handling to the rider's requirements. Furthermore, a new set-up has been developed to further align the XXZ with racing performance. An upgrade for optimised performance and simplification of length and hydraulic spring preload adjustment has also been installed.



The goal is to offer the rider precise control and maximum grip, even at extreme lean angles or during rapid changes of direction, as well as even tire wear. It offers utmost confidence when accelerating on all street surfaces and perfect rear wheel stability, even under the hardest braking.



Innovation also prevails inside the damper. With technically new solutions, the damping coefficient and stability at high temperatures are improved.

By using a piston rod with a 14 mm diameter, sliding behaviour is improved, while the Ø30mm separator piston reduces uncontrolled movements of the hydraulic oil. These improvements lead to a reduction in inertial forces and thus enable immediate control of oscillating spring movements. Special attention was also paid to improving and simplifying the adjustment options, which are now all located in the upper part of the damper.





Features:

- compression damping Low-Speed: 24 clicks

- compression damping High-Speed: 20 clicks

- Rebound: 24 clicks

- High-Speed Rebound: 20 clicks

- XXZ31 Hydr. spring preload: 12 mm = 24 clicks

- Adjustable Length: 8 mm

- Very light
