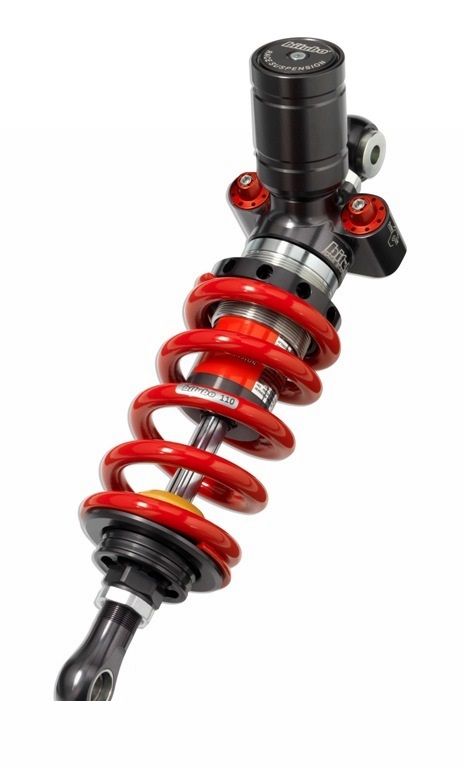

BITUBO shock absorber for Yamaha YZF-R1 / R1M 2015-19 and MT-10 2016-20

Product details

BITUBO mono rear shock absorber, rebound damping adjustable (24 clicks), high-speed rebound adjustable (24 clicks), compression damping damping adjustable (24 clicks), length adjustable (8mm), spring preload steplessly, spring colour in Red;
For Yamaha
YZF-R1 / R1M, Type: RN32 (model year 2015-16)
YZF-R1 / R1M, Type: RN49 (model year 2017-19)
MT-10, Type: RN45 (model year 2016-20)

General description

XXT Mono shock absorber – the direct evolution from racing. Thanks to its versatile adjustment options, the Bitubo XXT shock absorber is easy to adapt even when installed.

The development of this damper culminates in a general weight reduction through the use of an aluminium casing – an important point to tune handling to the rider's requirements. Furthermore, a new set-up has been developed to further align the XXT with racing performance. An upgrade for optimised performance and simplification of length and hydraulic spring preload adjustment has also been installed.

The goal is to offer the rider precise control and maximum grip, even at extreme lean angles or during rapid changes of direction, as well as uniform tire wear. It offers maximum confidence when accelerating on all street surfaces and perfect stability of the rear wheel, even under the hardest braking.

Innovation also reigns inside the damper. With technically new solutions, the damping coefficient and stability at high temperature are improved.
By using a piston rod with a 14 mm diameter, sliding behaviour is improved, while the Ø30mm separation piston reduces uncontrolled movements of the hydraulic oil. These improvements lead to a reduction in inertial forces, thus enabling immediate control of oscillating spring movements.


Features:
- compression damping: 24 clicks
- Rebound: 24 clicks
- compression damping damping high-speed: 20 clicks
- XXT11 Manual spring preload: stepless
- Adjustable length: 8 mm
- Very light
