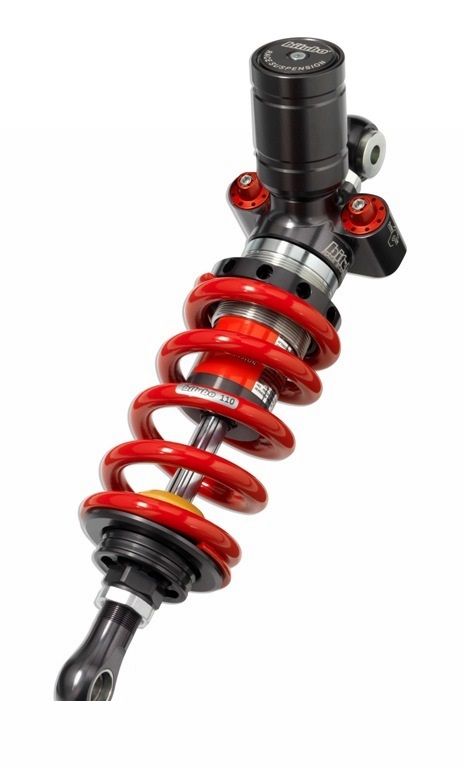

BITUBO shock absorber for Yamaha YZF-R1 02-03

Product details

BITUBO mono-shock rear, rebound damping adjustable (24 clicks), high-speed rebound damping adjustable (24 clicks), compression damping damping adjustable (24 clicks), length adjustable (8mm), spring preload stepless, spring colour in red; for Yamaha YZF-R1 Type: RN09 (model year 2002-'03)

General description

XXT mono shock absorbers – direct evolution from racing. Thanks to the versatile adjustment options, the Bitubo XXT shock absorber is easy to adjust even when installed.

The development of this damper culminates in a general weight reduction through the use of an aluminium housing – an important point for tuning the handling to the rider's requirements. Furthermore, a new set-up has been developed to further align the XXT with racing performance. An upgrade for optimised performance and simplification of length and hydraulicer spring preload adjustment has also been installed.

The goal is to offer the rider precise control and maximum grip, even at extreme lean angles or during rapid changes of direction, as well as uniform tire wear. It offers the greatest confidence when accelerating on all street surfaces and perfect stability of the rear wheel, even during the hardest braking.

Innovation also prevails inside the damper. With technically new solutions, the damping coefficient and stability at high temperatures are improved.
By using a 14 mm diameter piston rod, the sliding behaviour is improved, while the Ø30mm separator piston reduces uncontrolled movements of the hydraulic oil. These improvements lead to a reduction in inertia forces and thus enable immediate control of the oscillating spring movements.


Features:
- compression damping 24 clicks
- Rebound: 24 clicks
- compression damping damping High-Speed: 20 clicks
- XXT11 Manual spring preload: stepless
- Adjustable length: 8 mm
- Very light
