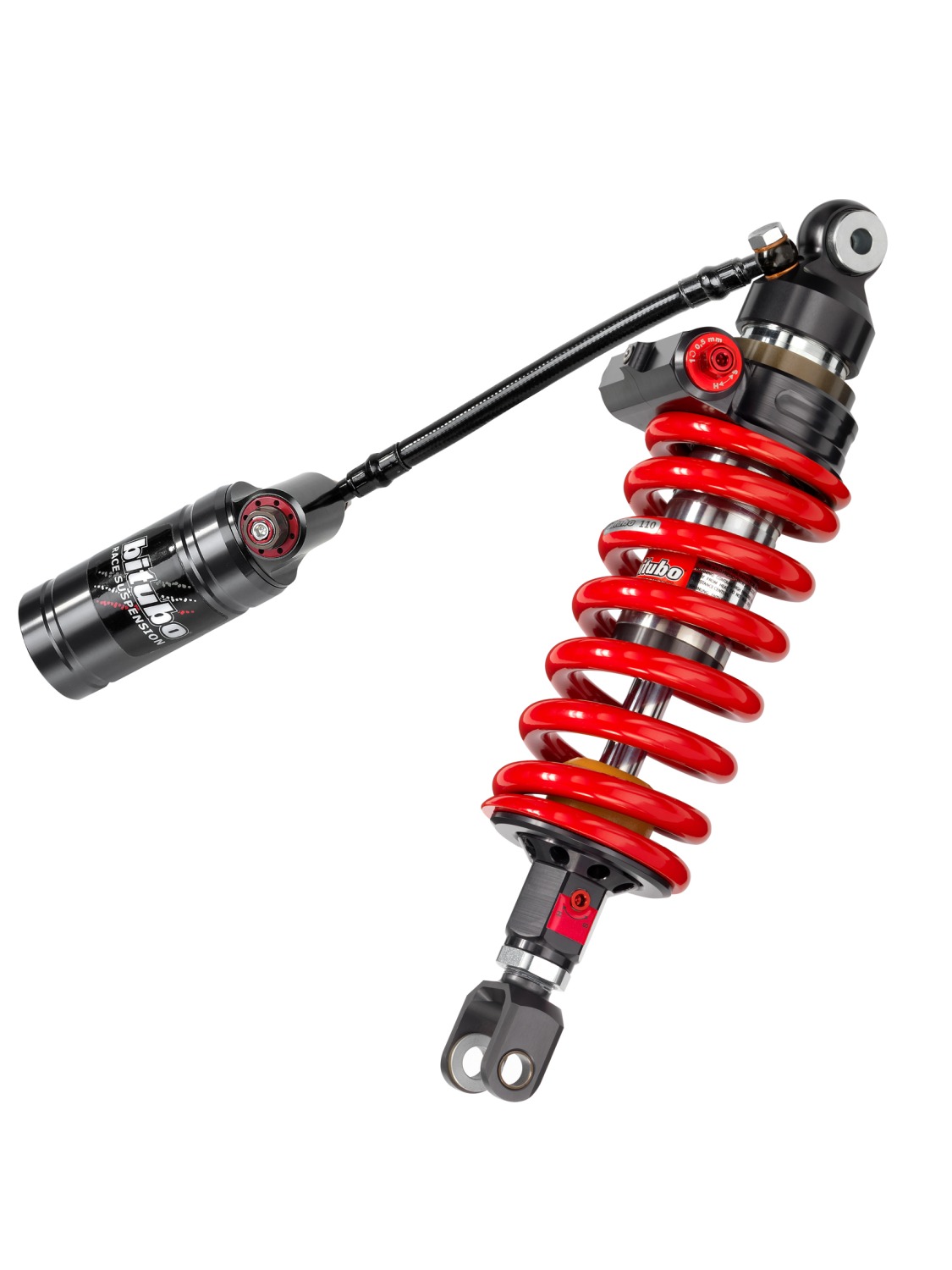

Bitubo shock absorber for Yamaha Tenere 700 from model year 2019-

Product details

BITUBO mono-shock rear, with externa balance tank, rebound damping adjustable, compression damping damping adjustable in high and low speed, length adjustable, spring preload continuously hydraulic adjustable, spring colour red; for Yamaha Tenere 700, Type DM, from model year 2019-

General description

CLU - the link between street and racing. This high-performance shock absorber is dedicated to street and sports motorcycles. It is a gas-pressure-assisted shock absorber, with a separating piston for oil/nitrogen in the balance tank, Ø16mm piston rod with anti-friction coating, and a friction-minimised bushing. The lower and upper mounting are made from an aluminium alloy, as used in aviation – precisely CNC machined. The setting of the spring preload is hydraulic and can be done manually or with a 14 mm HH screw.

The balance tank is separated from the housing to allow for better positioning on the vehicle and to optimise the cooling of the hydraulic oil. They are connected by a flexible, braided steel hose. The shock absorber improves feedback from the bike and increases grip and comfort.

The last digit in the shock absorber’s designation indicates the colour of the spring: “1” stands for a red spring, while shock absorbers ending in “2” have a black spring. For example, the shock absorber “CLU31” has a red spring, and “CLU32” consequently has a black one.

CLU3 Features:
- compression damping Low-Speed: 24 clicks
- compression damping High-Speed: 20 clicks
- Rebound: 24 clicks
- Hydr. spring preload: 12 mm = 24 clicks
- Adjustable length: 8 mm
