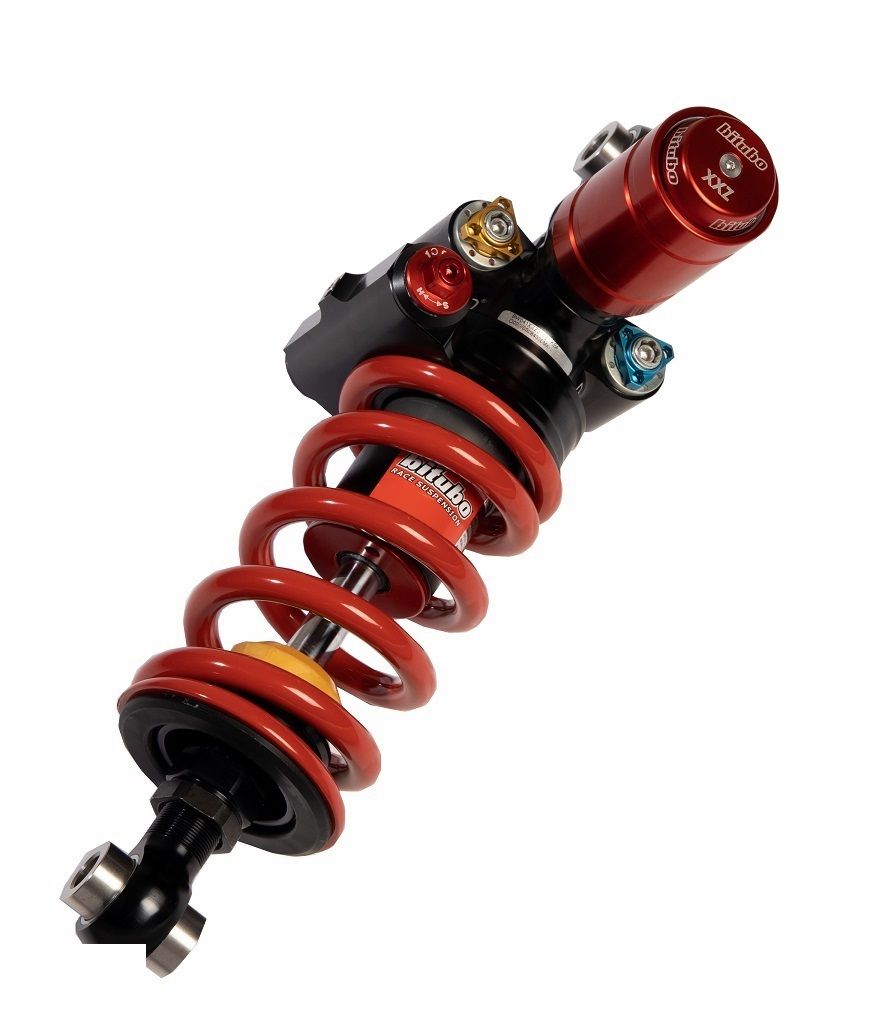

BITUBO shock absorber for Yamaha FZ1 / Fazer

Product details

BITUBO mono rear, rebound damping adjustable (24 clicks), high-speed rebound adjustable (20 clicks), high-speed compression damping damping (20 clicks) and low-speed (24 clicks) adjustable, length adjustable (8mm), spring preload hydraulic 10mm adjustable (=20 clicks), spring colour in Red, with ABE, for Yamaha
FZ1 /S, Type RN16, model year 2006-2015
FZ1 Fazer, Type RN16, model year 2006-2015

General description

XXZ mono shock absorbers – the direct evolution from racing. Thanks to the versatile adjustment options, the Bitubo XXZ shock absorber can be easily adjusted even when installed.

The development of this spring culminates in a general weight reduction through the use of an aluminium casing – an important point for tuning the handling to the rider's requirements. Furthermore, a new setup has been developed to further focus the XXZ on racing performance. An upgrade for optimised performance and simplification of length and hydraulic spring preload adjustment has also been installed.

The aim is to offer the rider precise control and maximum grip, even in extreme lean angles or during rapid changes of direction, as well as even tire wear. It offers maximum confidence when accelerating on all street surfaces and perfect rear wheel stability, even under the hardest braking.

Innovation also prevails inside the spring. With technically new solutions, the damping coefficient and stability are improved at high temperature.
By using a 14 mm diameter piston, the sliding behaviour is improved, while the Ø30mm separating piston reduces uncontrolled movements of the hydraulic oil. These improvements lead to a reduction in inertia forces and thus enable immediate control of oscillating spring movements. Special attention was also paid to improving and simplifying the adjustment options, which are now all located in the upper part of the spring.


Features:
- compression damping Low-Speed: 24 clicks
- compression damping High-Speed: 20 clicks
- Rebound: 24 clicks
- High-Speed Rebound: 20 clicks
- XXZ31 Hydr. spring preload: 12 mm = 24 clicks
- XXZ31V2 Hydr. spring preload: 10 mm = 20 clicks
- Adjustable length: 8 mm
- Very lightweight
