BITUBO shock absorber for various Harley Davidson models

BITUBO shock absorber for various Harley Davidson models
BITUBO shock absorber for various Harley Davidson models

Example photo

BITUBO shock absorber for various Harley Davidson models

Example photo

BITUBO shock absorber for various Harley Davidson models
BITUBO shock absorber for various Harley Davidson models
BITUBO shock absorber for various Harley Davidson models

€541.51 gross €570.01 RRP incl. VAT

Prices incl. VAT plus shipping costs

Article number: BI-HD004-WME02V2
In ca. 15 working days

Product details

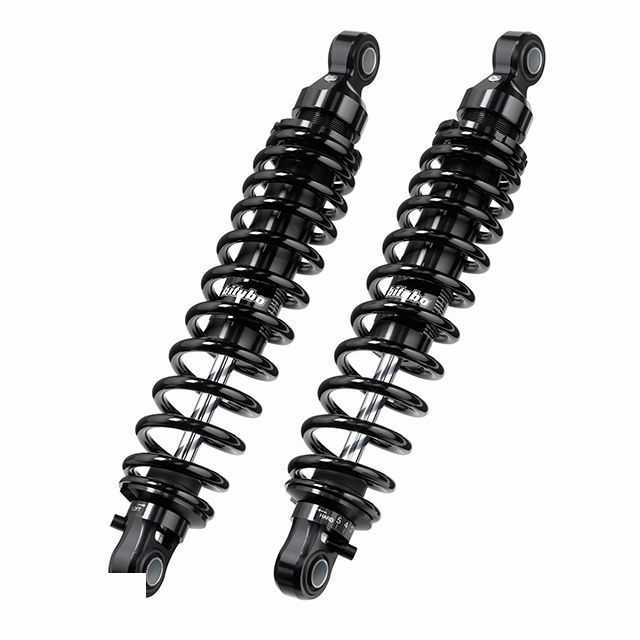

BITUBO twin shock absorbers rear, 331mm long (13 inches), spring preload and rebound damping adjustable; colour: black, for Harley Davidson (various models) with ABE according to scope of use

General description

Nitrogen-filled single-tube gas pressure shock absorbers with floating pistons for improved riding comfort and vehicle control. The rebound adjustment range achieves very good performance in all riding situations, both solo and fully loaded. The damper body is made of high-strength steel, and the head parts are CNC-machined from billet aluminium.

Adjustment options:
- spring preload - continuously variable, via adjusting ring
- Rebound - continuously variable, via adjustment lever

Each pair of shock absorbers comes with a Basic setting tailored to the respective model.
Available with chromed head and foot with chromed spring or with black head and foot with black spring. Also available with chromed head and foot and black spring (discontinued models).

Additionally, chrome caps can be purchased in the following variants:
- Chrome cap set (2 pairs = 2 upper uppers and 2 lower chrome caps): Article no. BI-GR9601
- Upper chrome caps (2 pieces): Article no. BI-GR9603
- Black upper chrome caps (2 pieces, black chromed): Article no. BI-GR9604
- Black chromed chrome cap set (2 pairs = 2 upper uppers and 2 lower chrome caps): Article no. BI-GR9605
For this, simply state the article number in the comments field when ordering. Please also indicate whether the chrome caps should be fitted.
Available with chrome caps upon request. Please specify in the order notes if the chrome caps should be fitted:

BI-GR9601 = chrome-plated, set for upper and lower, 110,08€

BI-GR9603 = chrome-plated, set for upper only, 55,34€

BI-GR9604 = black chromed, set for upper only, 55,34€

BI-GR9605 = black chromed, set for upper and lower, 110,08€
ManufacturerModelAdditional DesignationTypeModel YearVariant/VersionNoteHomologationPositionccm
Harley DavidsonDyna Low RiderFXS1983 - 1985BFOriginal length: 301mm (11.8 inches)ABErear1340
Harley DavidsonDyna Low Rider CustomFXLR1987 - 1994Original length: 331mm (13 inches)ABErear1340
Harley DavidsonDyna Low Rider SportFXRS1993 - 1993EG93Original length: 331mm (13 inches)ABErear1340
Harley DavidsonDyna Super GlideB80FX1980 - 1982Original length: 301mm (11.8 inches)ABErear1340
Harley DavidsonElectra GlideFLHT1995 - 1996DD 95/96Original length: 331mm (13 inches)ABErear1340
Harley DavidsonElectra Glide ClassicFLHTC1997 - 1997DJOriginal length: 331mm (13 inches)ABErear1450
Harley DavidsonElectra Glide ClassicFLHTC1985 - 1990DJL / DDLOriginal length: 331mm (13 inches)ABErear1450
Harley DavidsonElectra Glide ClassicFLHTC1991 - 1996DJOriginal length: 331mm (13 inches)ABErear1450
Harley DavidsonElectra Glide ClassicFLHTC2011 - 2013FFMOriginal length: 331mm (13 inches)ABErear1690
Harley DavidsonElectra Glide ClassicFLHTC2009 - 2010FFOriginal length: 331mm (13 inches)ABErear1584
Harley DavidsonElectra Glide ClassicFLHTC2001 - 2008FFMOriginal length: 331mm (13 inches)ABErear1690
Harley DavidsonElectra Glide ClassicFLHTC2011 - 2011FF4Original length: 331mm (13 inches)rear1584
Harley DavidsonElectra Glide ClassicFLHTCI1996 - 1996FF96 (EFI)Original length: 331mm (13 inches)rear1450
Harley DavidsonElectra Glide StandardFLHTI2009 - 2010FVOriginal length: 331mm (13 inches)rear1450
Harley DavidsonElectra Glide Ultra ClassicFLHTCU1989 - 1990DPLOriginal length: 331mm (13 inches)ABErear1340
Harley DavidsonElectra Glide Ultra ClassicFLHTCU1991 - 1996DPOriginal length: 331mm (13 inches)ABErear1340
Harley DavidsonElectra Glide Ultra ClassicFLHTCU2009 - 2013FCOriginal length: 331mm (13 inches)rear1584
Harley DavidsonElectra Glide Ultra LimitedFLHTK2009 - 2013KEOriginal length: 331mm (13 inches)ABErear1584
Harley DavidsonRoad GlideFLTRI2009 - 2009FS (EFI)Original length: 331mm (13 inches)ABErear1584
Harley DavidsonRoad Glide UltraFLTRU2011 - 2013KGMOriginal length: 331mm (13 inches)ABErear1584
Harley DavidsonRoad KingFLHR1993 - 1996FDOriginal length: 331mm (13 inches)ABErear1340
Harley DavidsonXL1200 SportsterXL12001991 - 1999CAP L/M/NOriginal length: 341mm (13.5 inches)ABErear1200
Harley DavidsonXL1200 SportsterXL12001988 - 1990CAP J/K/LOriginal length: 341mm (13.5 inches)ABErear1200
Harley DavidsonXL1200 SportsterXL12001994 - 1996CAP 94/96Original length: 341mm (13.5 inches)ABErear1200
Harley DavidsonXL1200R Sportster RoadsterXL12002004 - 2008XL2 CL / CVOriginal length: 331mm (13 inches)ABErear1200
Harley DavidsonXL883 De LuxeXL/21988 - 1995CFrear883
Harley DavidsonXL883 SportsterXL22007 - 2008CAABErear883
Harley DavidsonXL883 SportsterXL22004 - 2006CAABErear883
Harley DavidsonXL883 Sportster HuggerXL8832004 - 2006CAOriginal length: 341mm (13.5 inches)rear883
Harley DavidsonXL883 Sportster HuggerXL8831991 - 2003CAMOriginal length: 341mm (13.5 inches)rear883
Harley DavidsonXL883 Sportster HuggerXL8832007 - 2008CNOriginal length: 331mm (13 inches)rear883
Harley DavidsonXLH1200 SportsterXLH1988 - 1990CAP J/K/Lrear1200
Harley DavidsonXLH883 SportsterXLH1988 - 1990CAM J-K-LOriginal length: 341mm (13.5 inches)ABErear883
Harley DavidsonXLH883 SportsterXLH1986 - 1987CAM G-HOriginal length: 341mm (13.5 inches)ABErear883
Harley DavidsonXLH883 SportsterXL/2XLH1991 - 1999Original length: 341mm (13.5 inches)ABErear883
Harley DavidsonXLH883 SportsterXL1XLH1999 - 2002ABE883
Harley DavidsonXLH883 SportsterXL/2XLH2004 - 2008Original length: 301mm (11.8 inches)ABE883
Harley DavidsonXLH883 Sportster Hugger DeLuxeDLXXLH1988 - 1995CFOriginal length: 341mm (13.5 inches)ABErear883
Harley DavidsonXLH883 Sportster Hugger DeLuxeXL/2XLH1986 - 1987CAM G-HOriginal length: 321mm (12.5 inches)ABErear883
