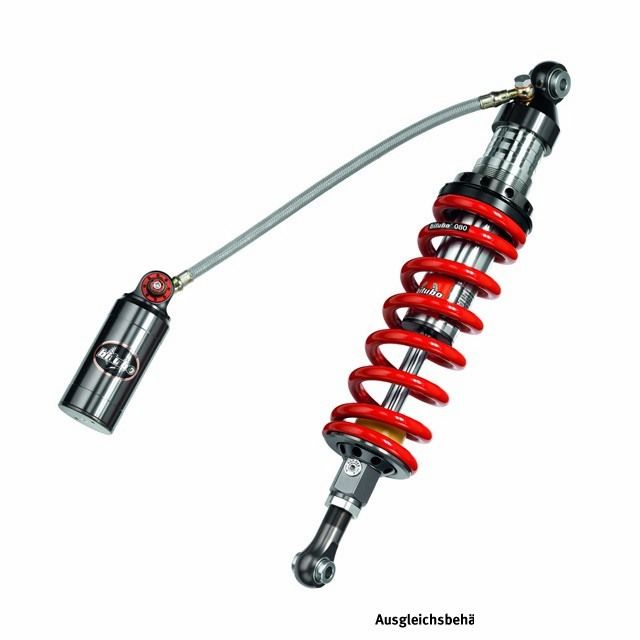

BITUBO shock absorber for Triumph Tiger 800 10-14

Product details

BITUBO rear shock absorber, with externa balance tank, adjustable rebound damping, adjustable compression damping in high and low speed, length adjustable by 8mm, continuously adjustable spring preload, red spring colour; for Triumph Tiger 800, model year 2010-14

General description

CLU - the link between street and racing. This high-performance shock absorber is dedicated to street and sport motorcycles. This is a gas-pressure assisted shock absorber, with a separating piston for oil / nitrogen in the balance tank, a Ø16mm piston with an anti-friction coating, and a friction-minimised bushing. The lower and upper mounting are made from an aluminium alloy, as used in aviation – precisely CNC machined. The spring preload setting is hydraulic and can be adjusted both manually and with a 14 mm HH screw.

The balance tank is separated from the housing to allow for better positioning on the vehicle and to optimise the cooling of the hydraulic oil. They are connected by a flexible, steel-braided hose. The shock absorber improves feedback from the bike and increases both grip and comfort.

The last digit in the shock absorber’s designation indicates the colour of the spring: "1" stands for a red spring, while shock absorbers with the suffix "2" have a black spring. For example, the shock absorber "CLU11" has a red spring, and "CLU12" consequently has a black one.

Features CLU1:
- compression damping Low-Speed: 24 clicks
- compression damping High-Speed: 20 clicks
- Rebound: 24 clicks
- Hydr. spring preload: continuous
- Adjustable length: 8 mm
