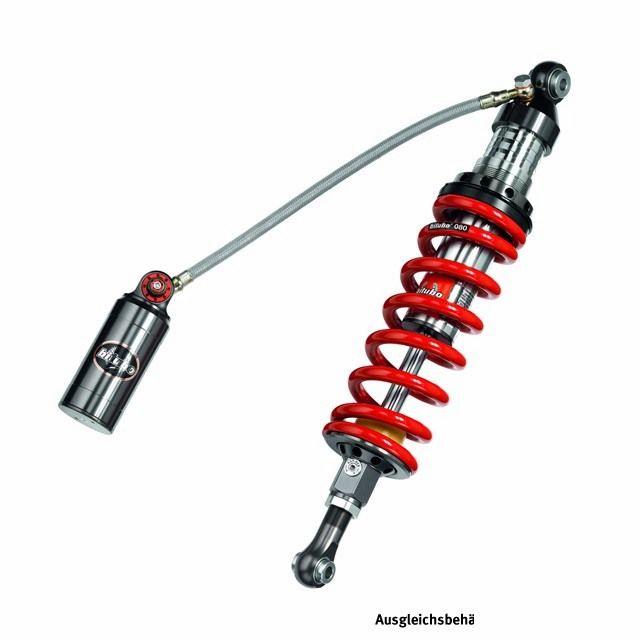

BITUBO shock absorber for Triumph Speed Triple 955i 02-

Product details

BITUBO mono-shock absorber rear, with externa balance tank, adjustable rebound damping, adjustable compression damping damping in high and low speed, 8mm length adjustable, spring preload continuously adjustable, spring colour red; for Triumph Speed Triple 955i Type: 595N (from model year '02-)

General description

CLU - the link between street and racing. This high-performance shock absorber is dedicated to street and sport motorcycles. This is a gas-pressure supported shock absorber, with a separating piston for oil / nitrogen in the balance tank, a Ø16mm piston rod with anti-friction coating, and a friction-minimised bushing. The lower and upper mountings are made from an aluminium alloy, as used in aerospace - precisely CNC milled. The setting of the spring preload is hydraulic and can be done manually, as well as with a 14mm HH screw.

The balance tank is separate from the housing to allow for better positioning on the vehicle and to optimise the cooling of the hydraulic oil. They are connected by a flexible, steel-braided hose. The shock absorber improves feedback from the bike and increases grip and comfort.

The last digit in the shock absorber's designation indicates the colour of the spring: '1' stands for a red spring, while shock absorbers ending in '2' have a black spring. For example, the shock absorber "CLU11" has a red spring, "CLU12" consequently has a black one.

CLU1 Features:
- Low-Speed compression damping: 24 clicks
- High-Speed compression damping: 20 clicks
- Rebound: 24 clicks
- Hydr. spring preload: continuously adjustable
- Adjustable length: 8 mm
