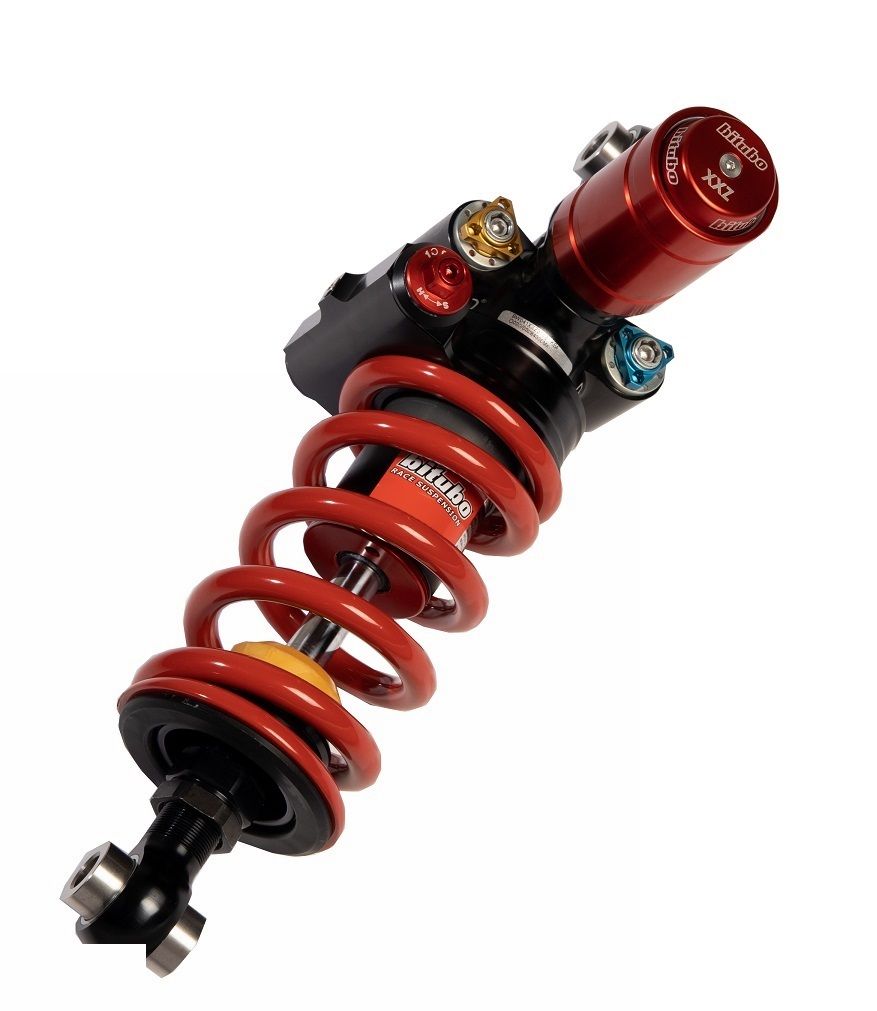

BITUBO shock absorber for Triumph Daytona 675 06-11

Product Details

BITUBO mono-shock absorber rear, rebound damping adjustable (24 clicks), high-speed rebound adjustable (20 clicks), high-speed compression damping damping (20 clicks) and low-speed (24 clicks) adjustable, length adjustable (8mm), spring preload preload 10mm adjustable (= 20 clicks), spring colour in Red, with ABE; for Triumph Daytona 675 Type: D67LC (model year 2006-'11)

General Description

XXZ Mono shock absorbers – the direct evolution from racing. Thanks to the versatile adjustment options, the Bitubo XXZ shock absorber can be easily adjusted even when installed.

The development of this damper culminates in a general weight reduction through the use of an aluminium housing – an important point to adapt the handling to the rider's requirements. Furthermore, a new set-up was developed to further align the XXZ with racing performance. An upgrade for optimised performance and simplification of length and hydraulic spring preload adjustment has also been installed.

The goal is to offer the rider precise control and maximum grip, even in extreme lean angles or during rapid changes of direction, as well as uniform tire wear. It offers utmost confidence when accelerating on all street surfaces and perfect stability of the rear wheel, even under the hardest braking.

Innovation also prevails inside the damper. With technically new solutions, the damping coefficient and stability at high temperature are improved.
By using a piston rod with a 14 mm diameter, the sliding behaviour is improved, while the Ø30mm separating piston reduces uncontrolled movements of the hydraulic oil. These improvements lead to a reduction in inertia forces and thus enable immediate control of oscillating spring movements. Special attention was also paid to improving and simplifying the adjustment options, which are now all located in the upper part of the damper.


Features:
- compression damping Low-Speed: 24 Clicks
- compression damping High-Speed: 20 Clicks
- Rebound: 24 Clicks
- High-Speed Rebound: 20 Clicks
- XXZ31 Hydr. spring preload: 12 mm = 24 Clicks
- XXZ31V2 Hydr. spring preload: 10 mm = 20 Clicks
- Adjustable Length: 8 mm
- Very lightweight
