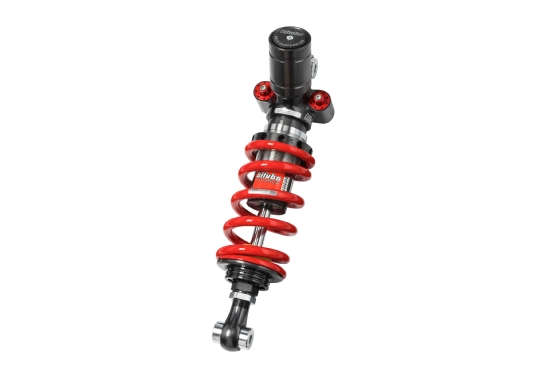

Bitubo shock absorber for Suzuki GSX-8R Model Year 2024-

Product details

BITUBO monoshock rear, rebound damping adjustable (24 clicks), high-speed rebound adjustable (24 clicks), compression damping damping adjustable (24 clicks), length adjustable (8mm), spring preload continuously adjustable, spring colour in red, with ABE. For Suzuki
GSX-8R, Type: WEM2, Model Year 2024-
Type WEM3 (without ABE)

General Description

XXT Mono shock absorbers – the direct evolution from racing. Thanks to its versatile adjustment options, the Bitubo XXT shock absorber can be easily adapted even when installed.

The development of this damper culminates in an overall weight reduction through the use of an aluminium housing – a crucial point for tailoring handling to the rider's requirements. Furthermore, a new setup has been developed to further align the XXT with racing performance. An upgrade for optimised performance and simplification of length and hydraulic spring preload adjustment has also been installed.

The goal is to offer the rider precise control and maximum grip, even in extreme lean angles or during rapid changes of direction, as well as uniform tire wear. It offers maximum confidence when accelerating on all street surfaces and perfect stability of the rear wheel, even under the hardest braking.

Innovation also prevails inside the damper. With technically new solutions, the damping coefficient and stability at high temperatures are improved.
By using a piston rod with a 14 mm diameter, sliding behaviour is improved, while the Ø30mm separating piston reduces uncontrolled movements of the hydraulic oil. These improvements lead to a reduction in inertia forces and thus enable immediate control of oscillating spring movements.


Features:
- compression damping 24 clicks
- Rebound: 24 clicks
- High-Speed Rebound Damping: 20 clicks
- XXT11 Manual spring preload: continuously adjustable
- Adjustable Length: 8 mm
- Very lightweight
